40HP – 90HP OSMA TSLQ Series
TSLQ- 160 – 540 PTO 1inch shaft

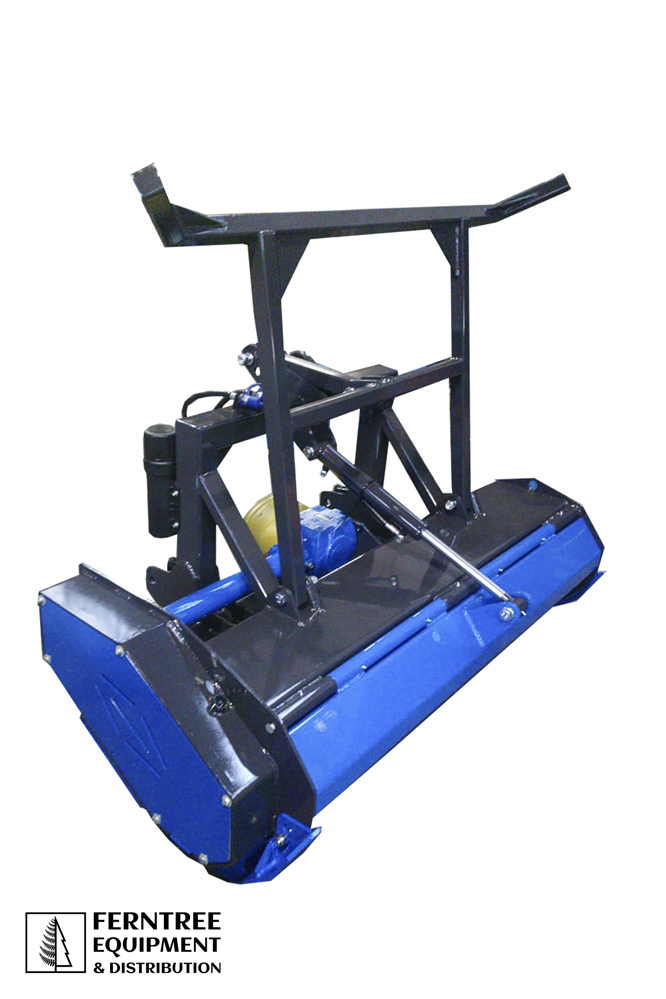

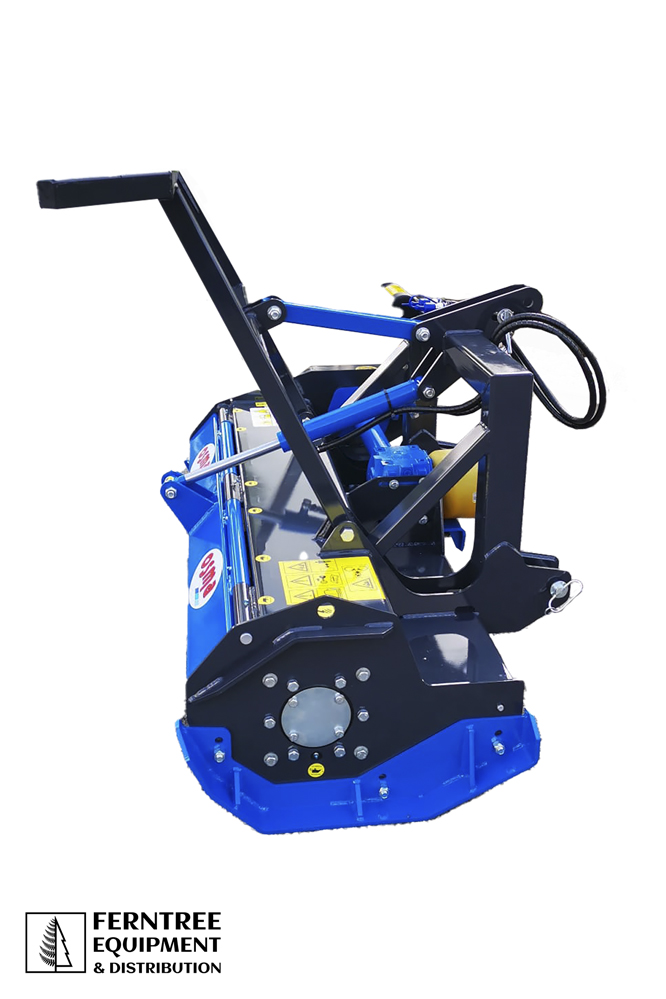

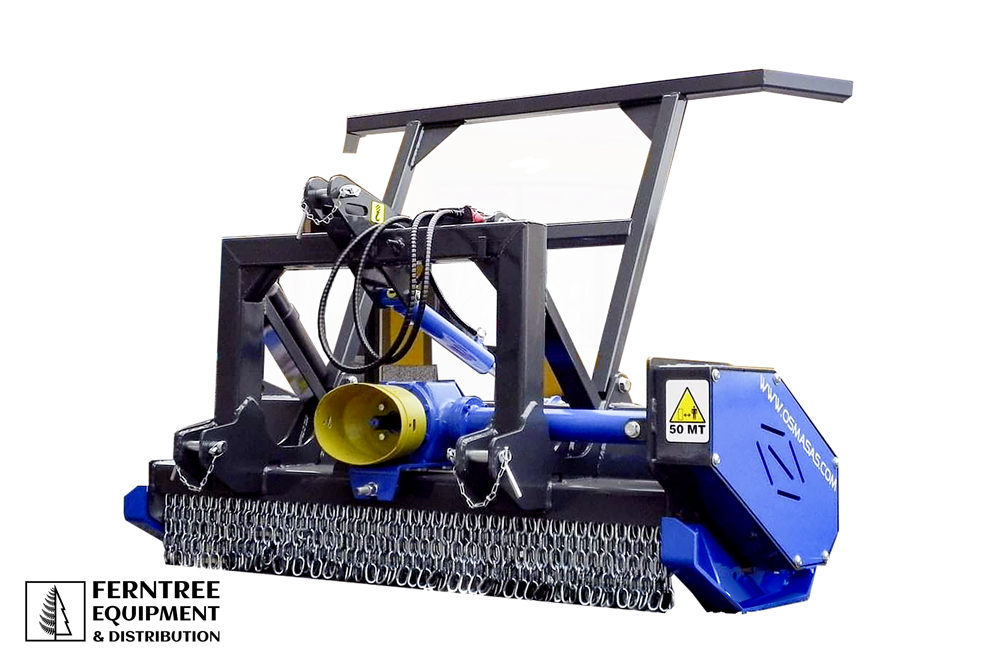

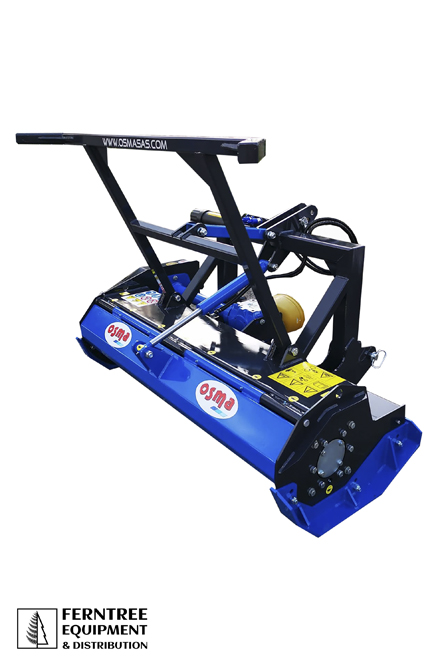

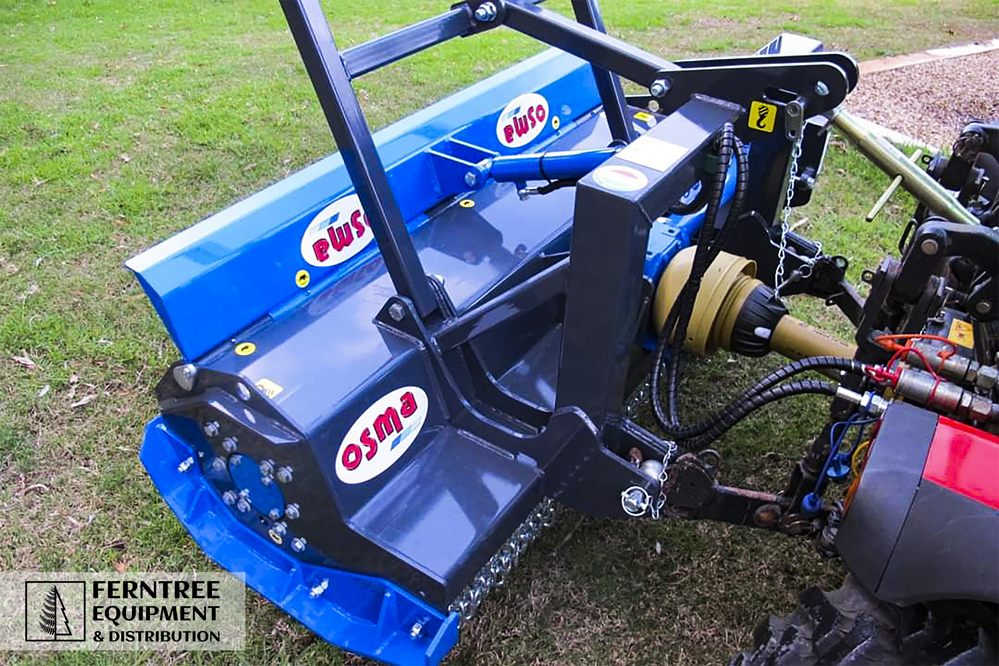

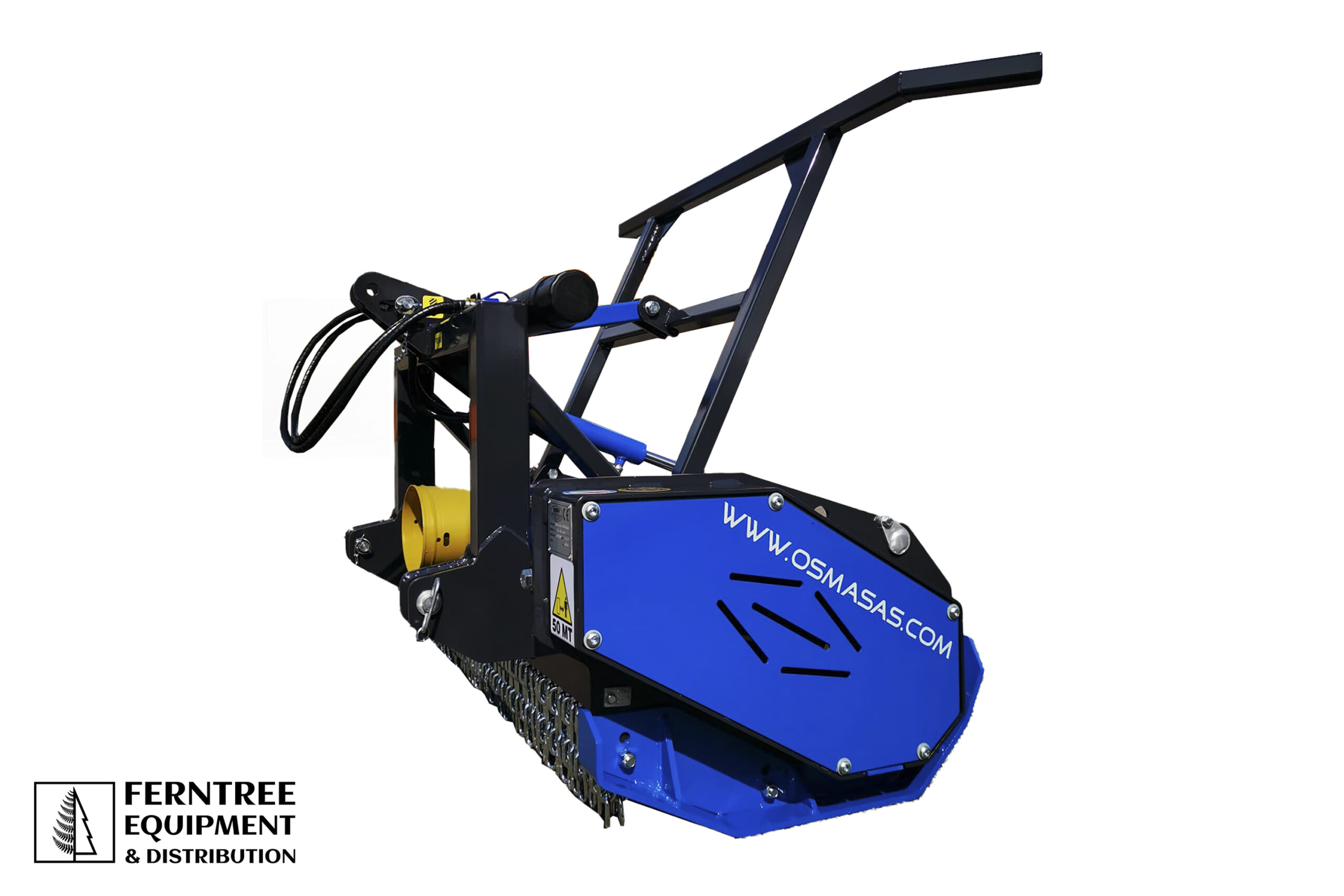

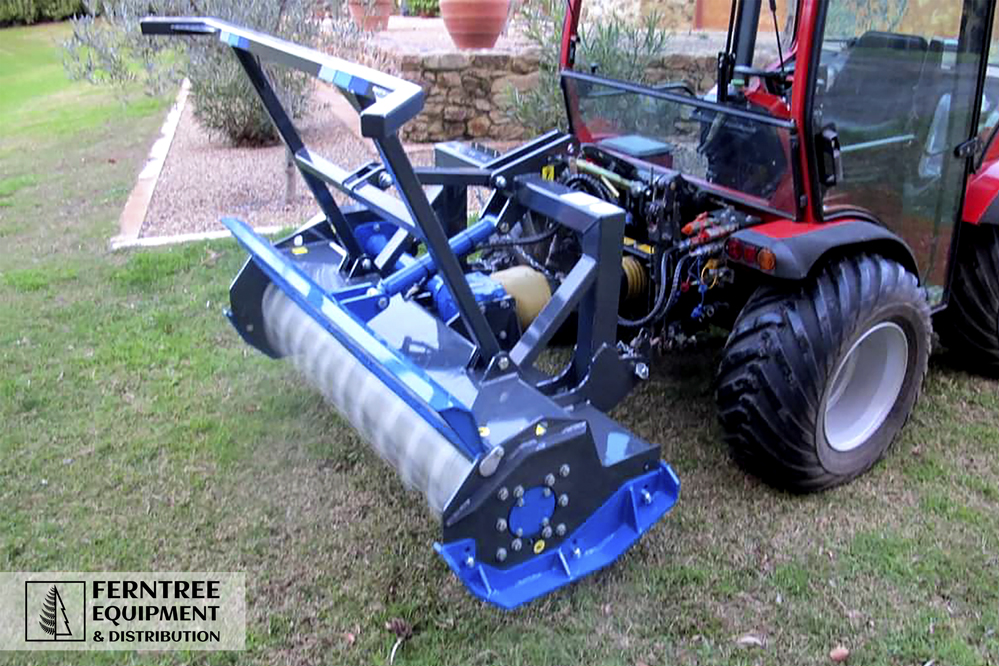

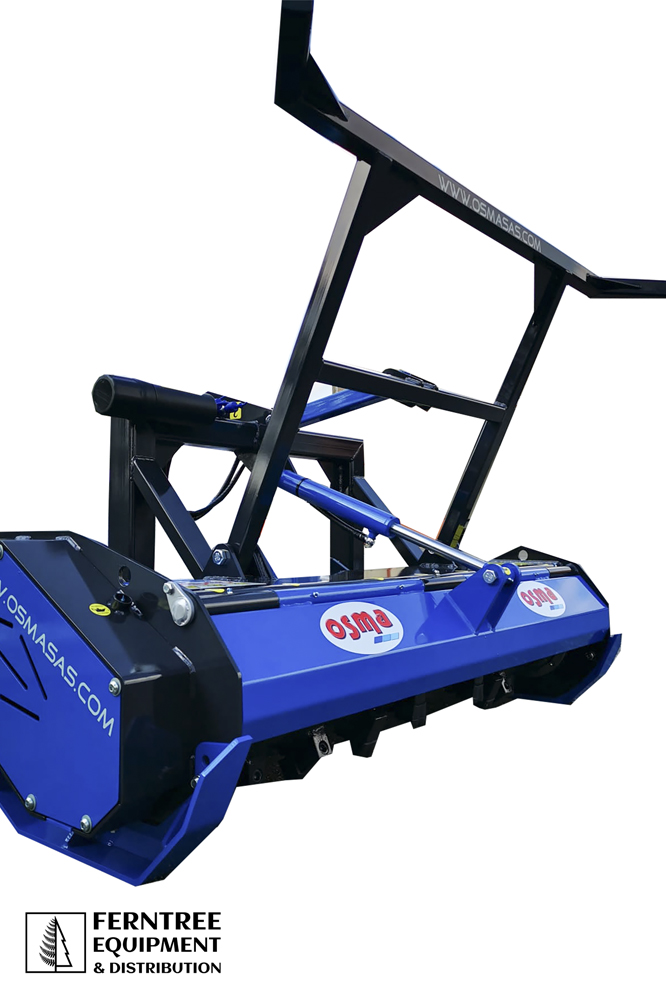

The TSL-Q Pro mulcher is designed for small to medium Tractors , focused on clearing vineyards and small spaces with heavy dense vegetation.

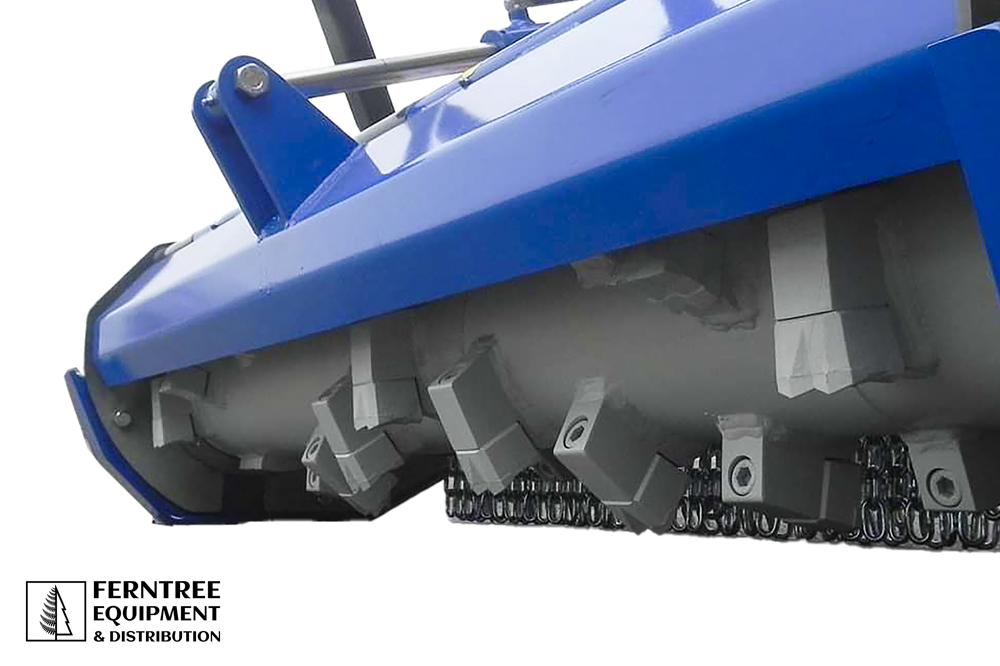

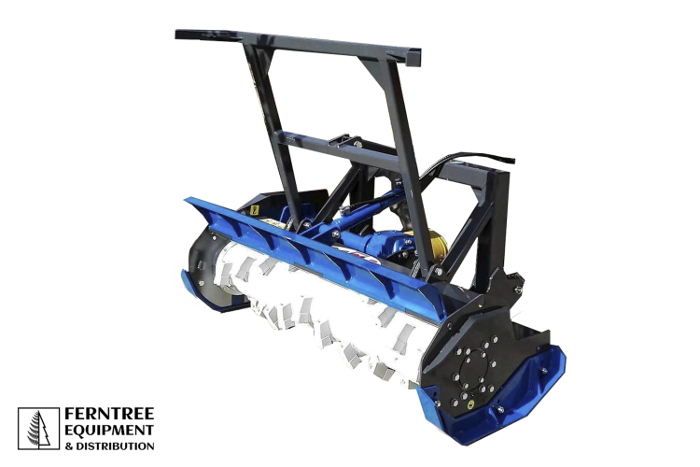

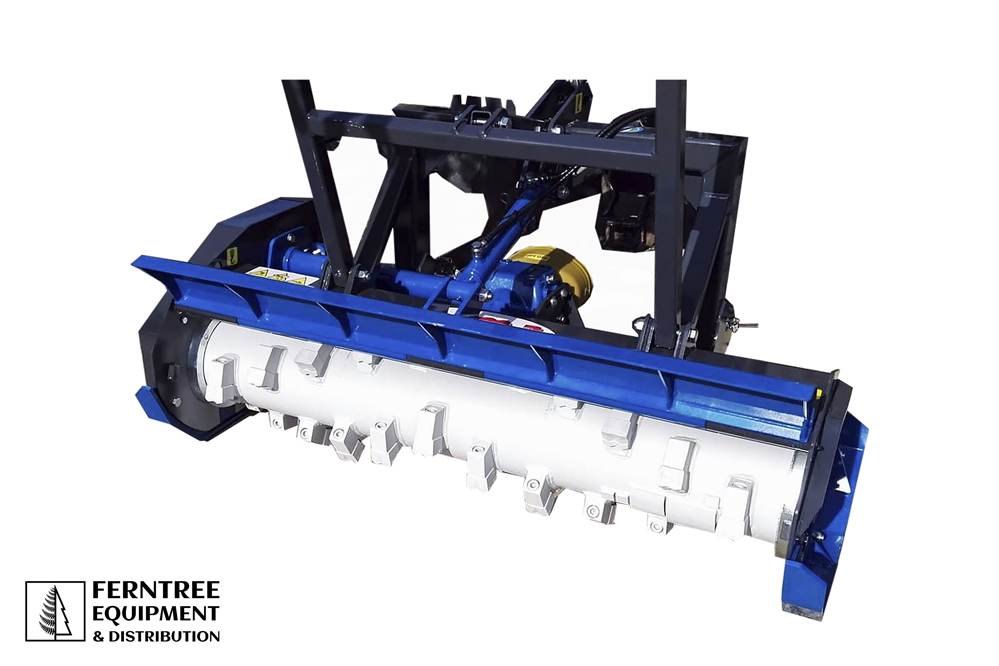

The OSMA Q Rotor can be fitted with carbide or chip tools depending on your ground or application.

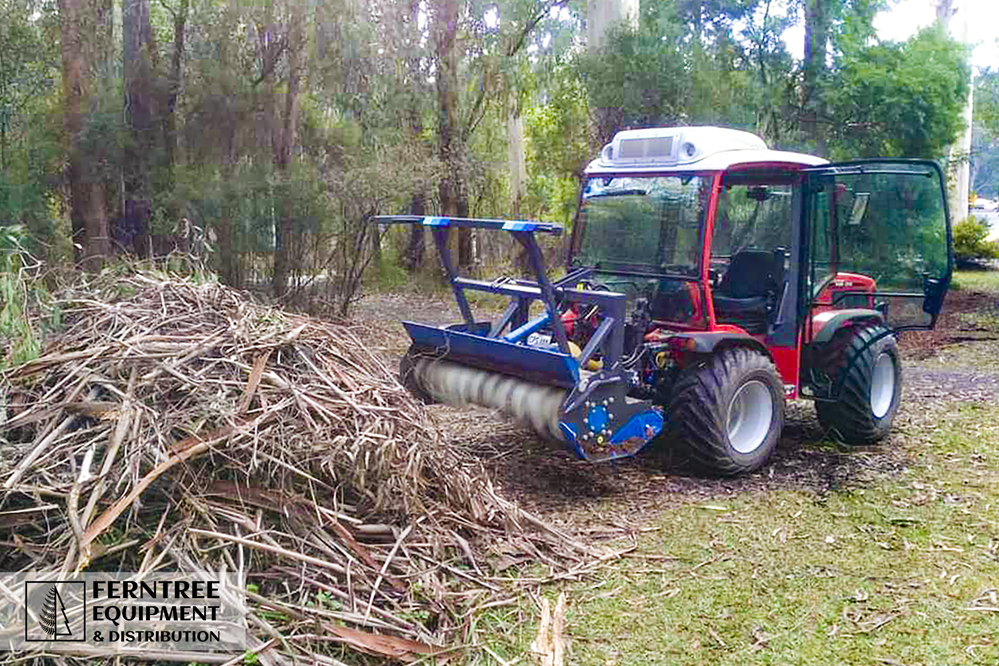

Mulching up to 6 inches standing or piled material.
Description
Standard :
Hydraulic rear door with Counter knife
OSMA Q type tool mount
100hp Gear box with PTO Shaft
Push bar
Options:
DCR – Depth Control rotor
Walterscheid PTO shaft or Bondioli Pavesi
Technical Data :
| Model | TSLQ 140 | TSLQ 160 |
| Working Width | 55 | 63 |
| Total Width | 65 | 73 |
| Weight Lbs | 1378 | 1477 |
| Tractor HP | 50-90 | 50-90 |
| PTO RPM | 540 | 540 |
| Rotor mm | 250 | 250 |
| Tool Type – fixed | 33 | 33 |
| Belts | 4 | 4 |
| Hydraulic Hoses & Couplers | 2 | 2 |
| Rear Hydraulic Door | y | y |
| Pusher Bar | y | y |
| Front Safety Chains | y | y |
| Skids | y | y |
| Max Shredding | 150+ | 200+y |
| Counter Blades | y | |
| Hitch | 3 pt – cat 2 | 3 pt – cat 2 |
| PTO Shaft | y | y |
