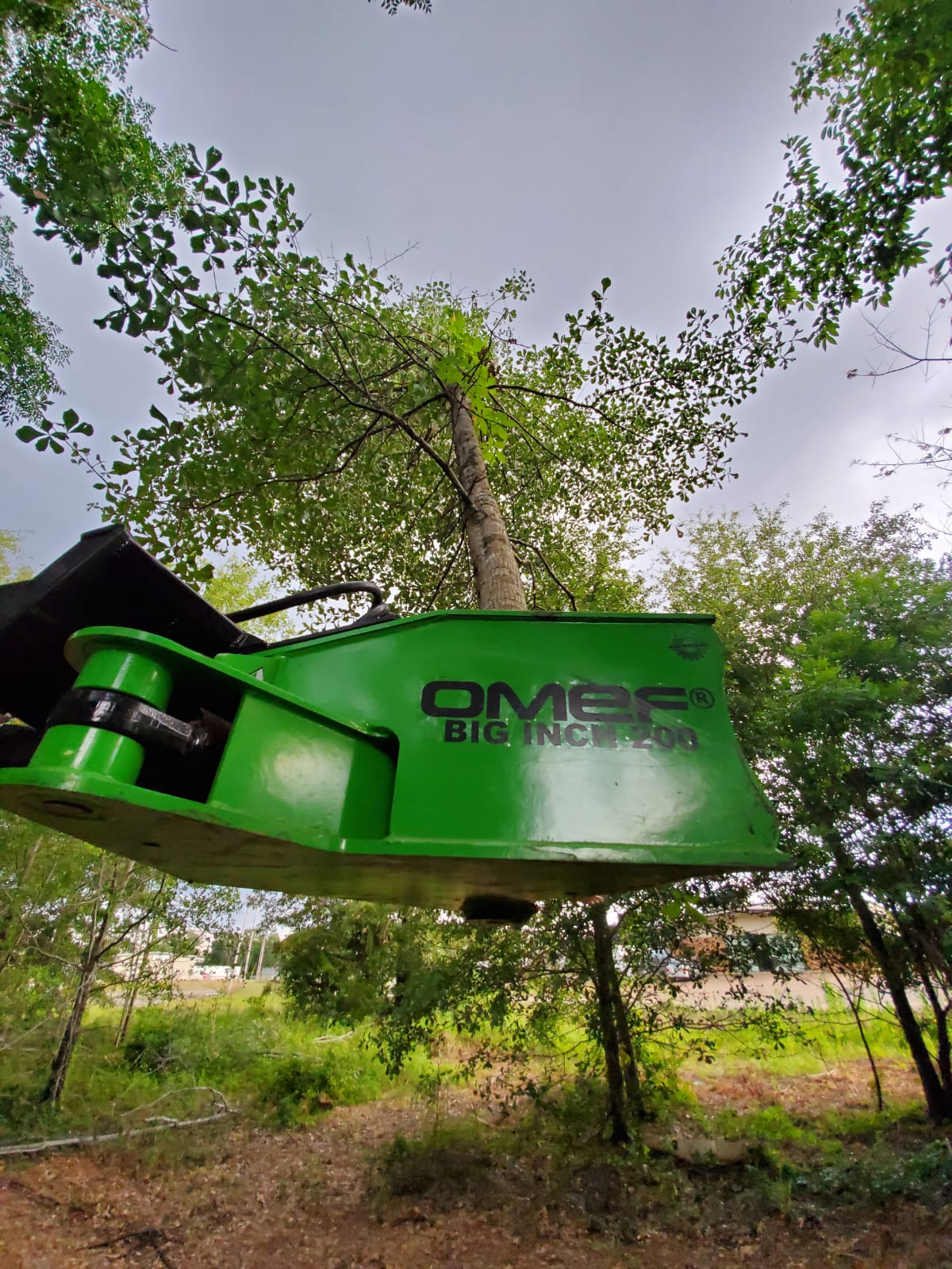

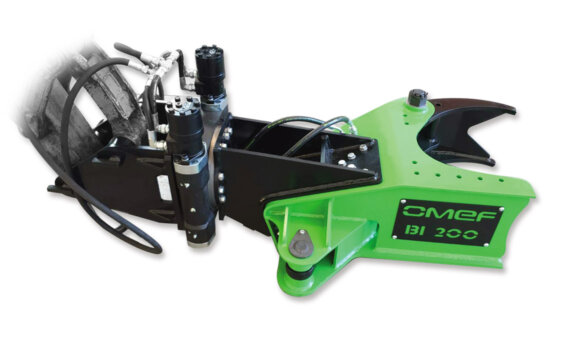

BI200 – BIG INCH

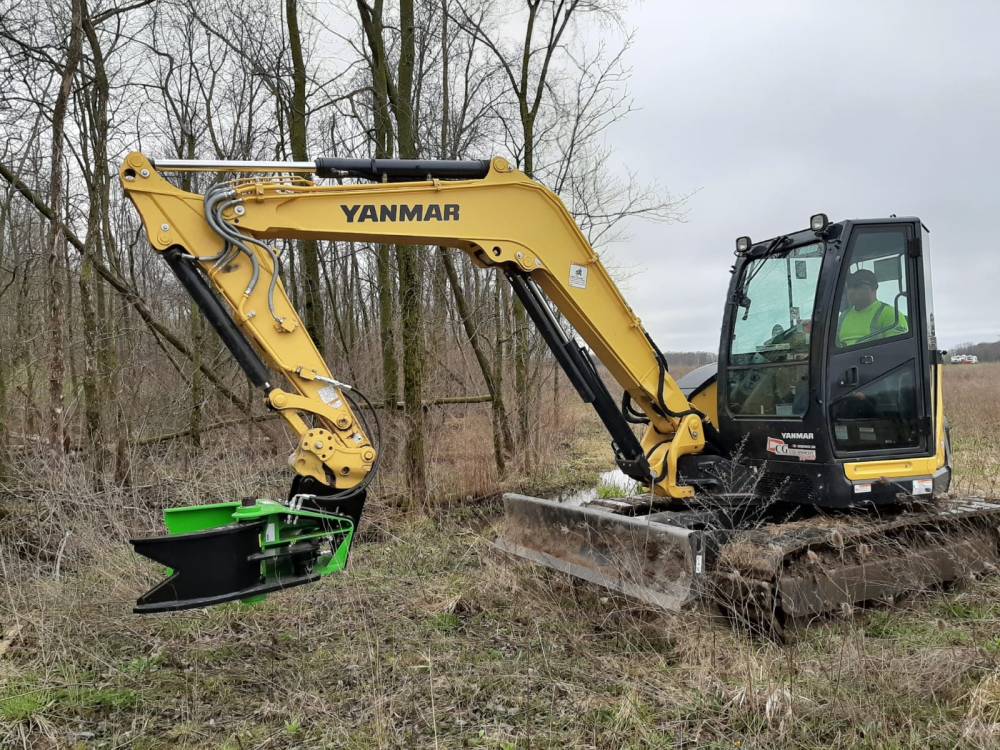

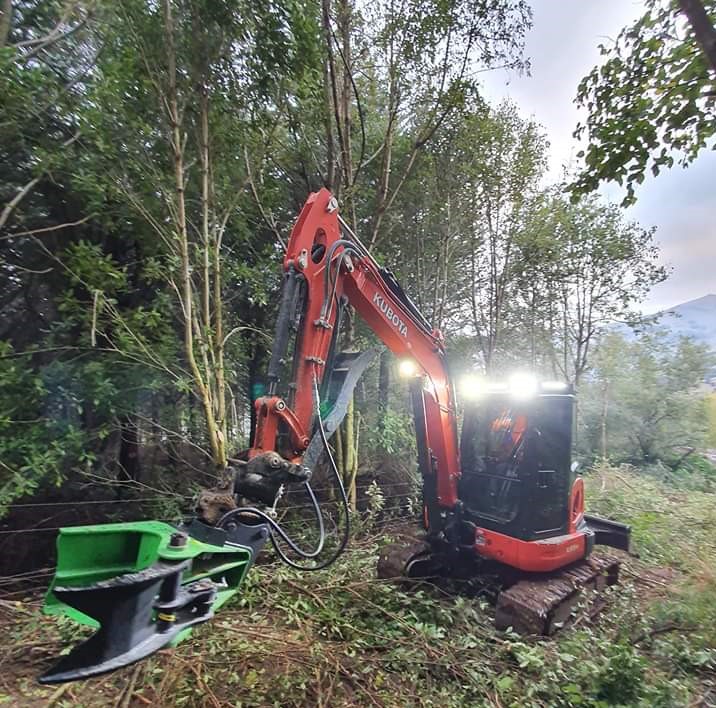

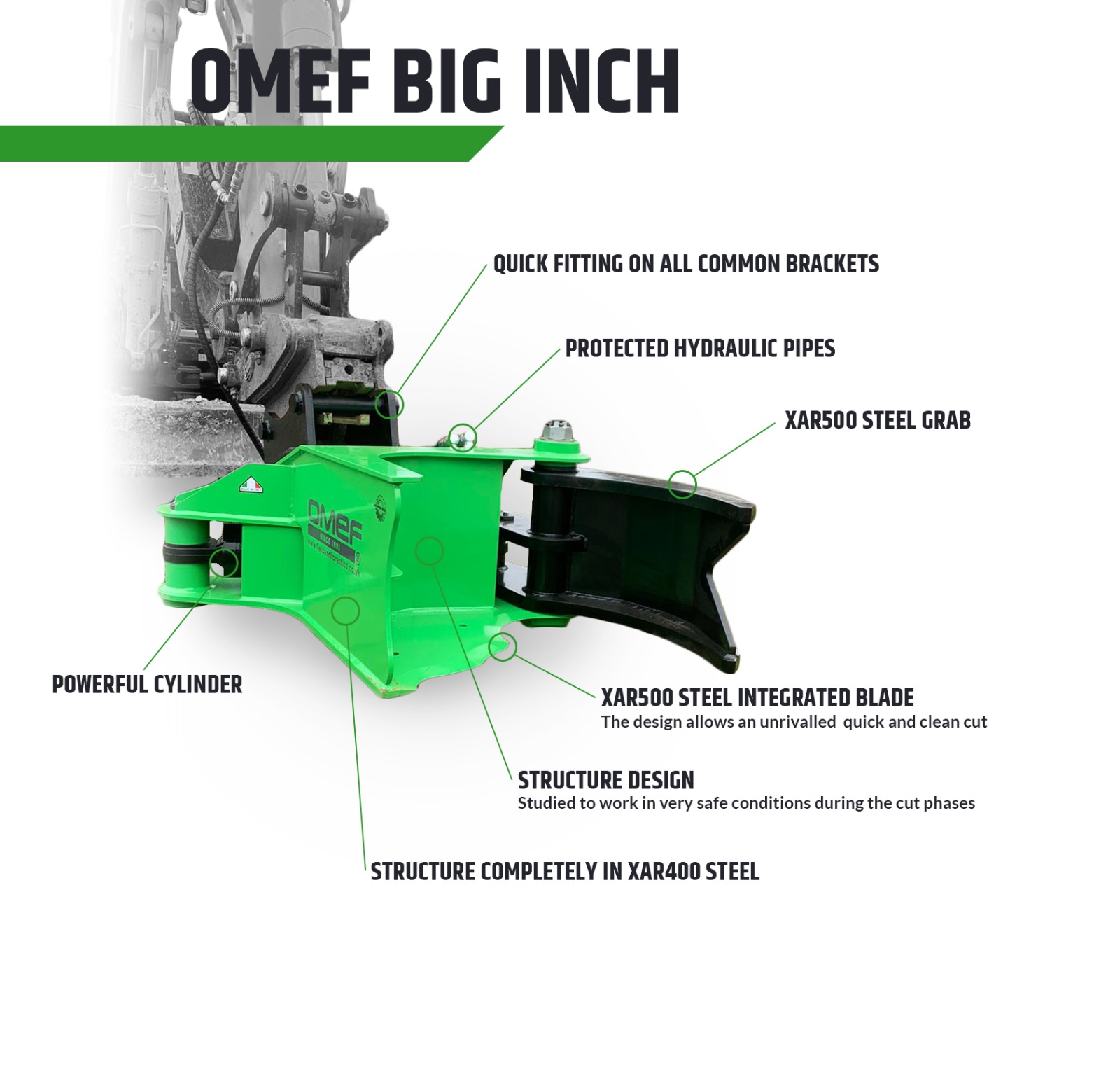

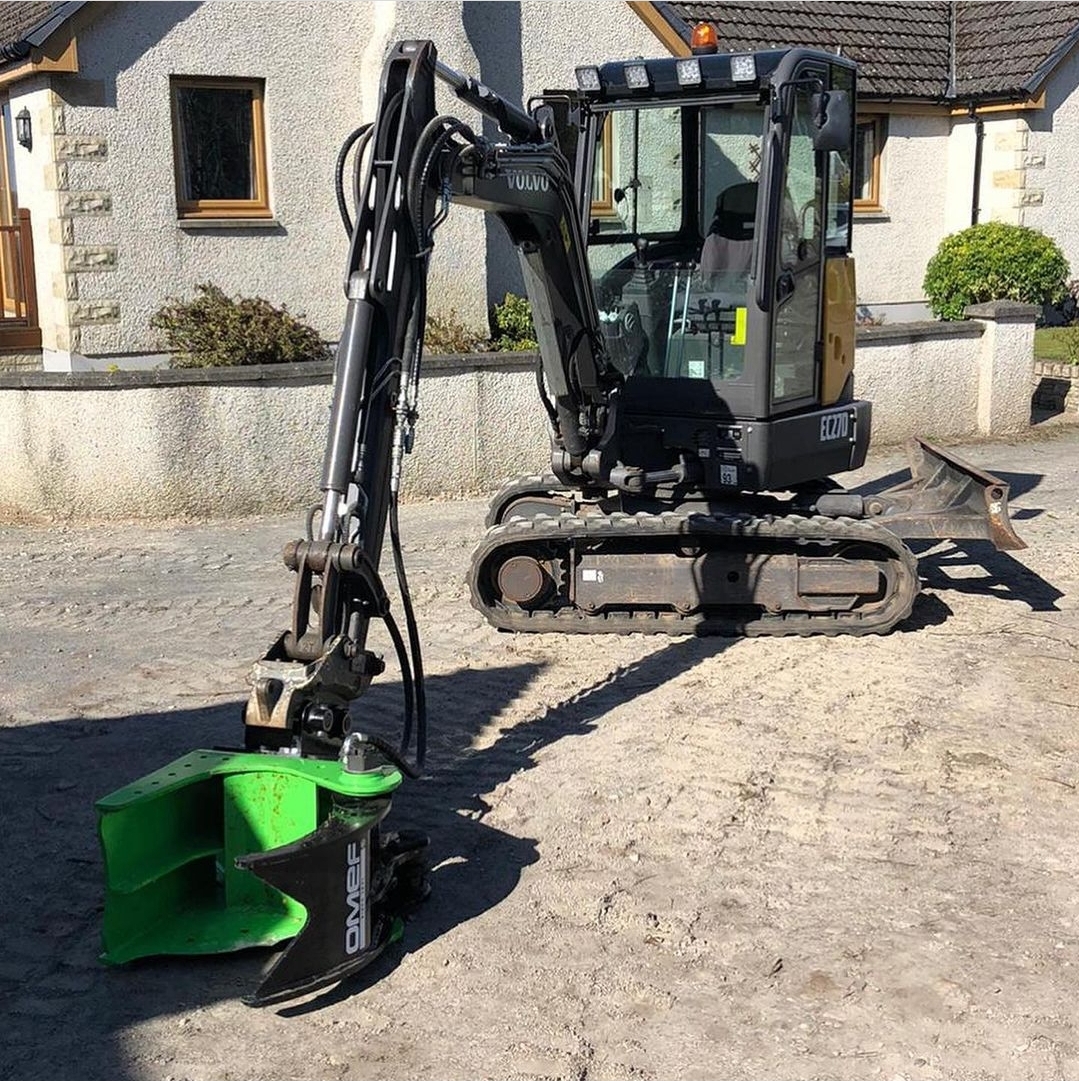

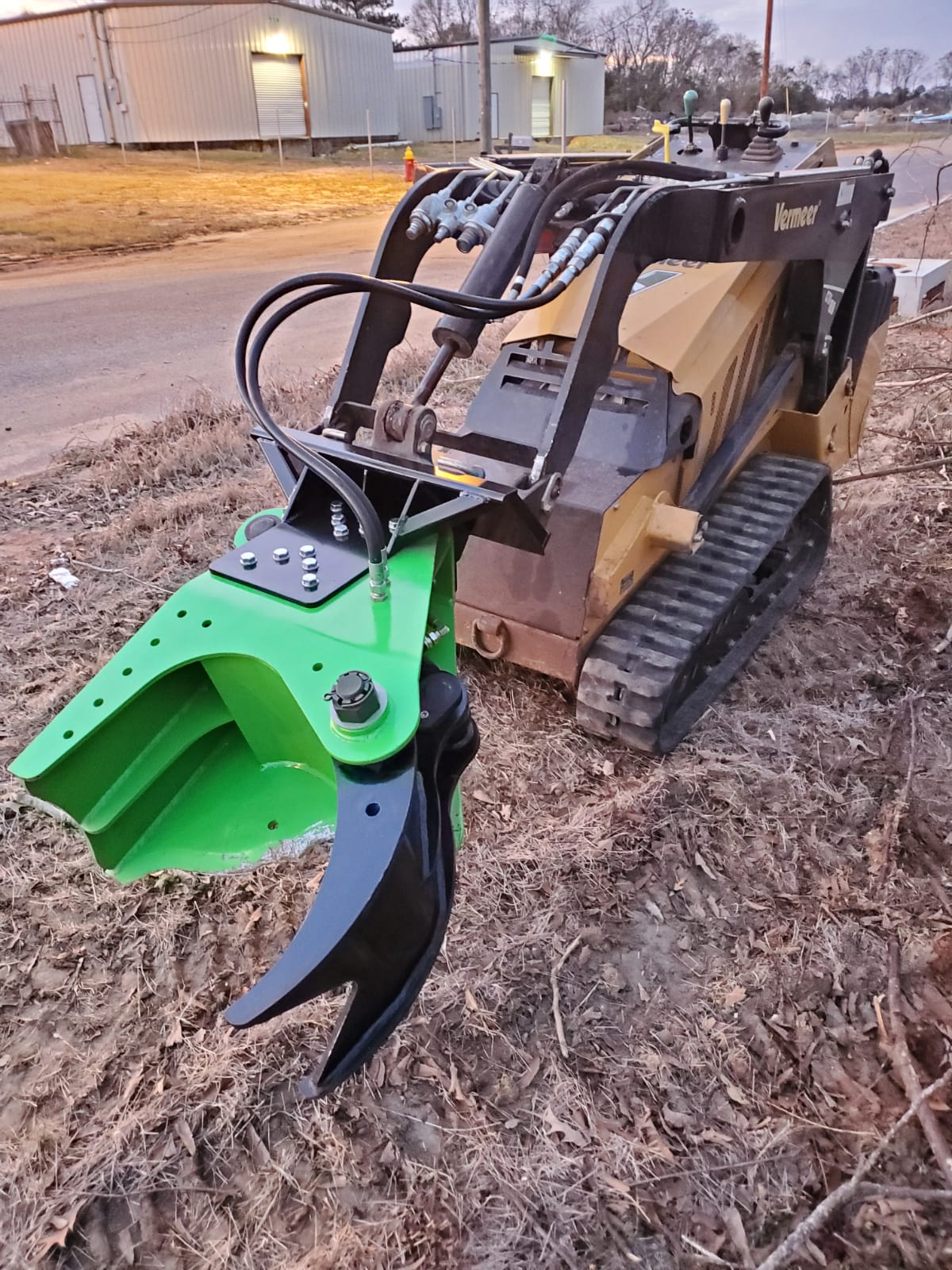

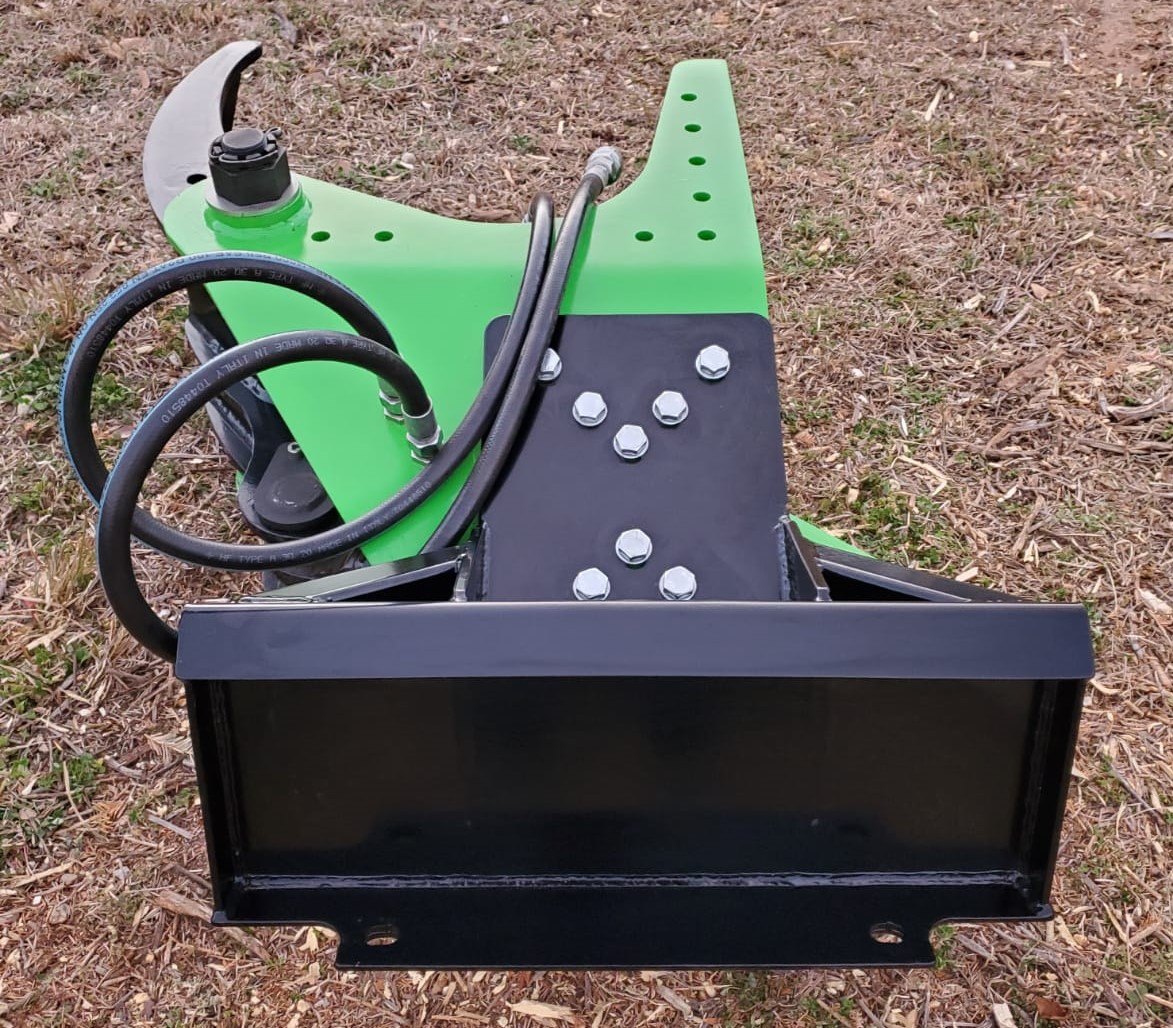

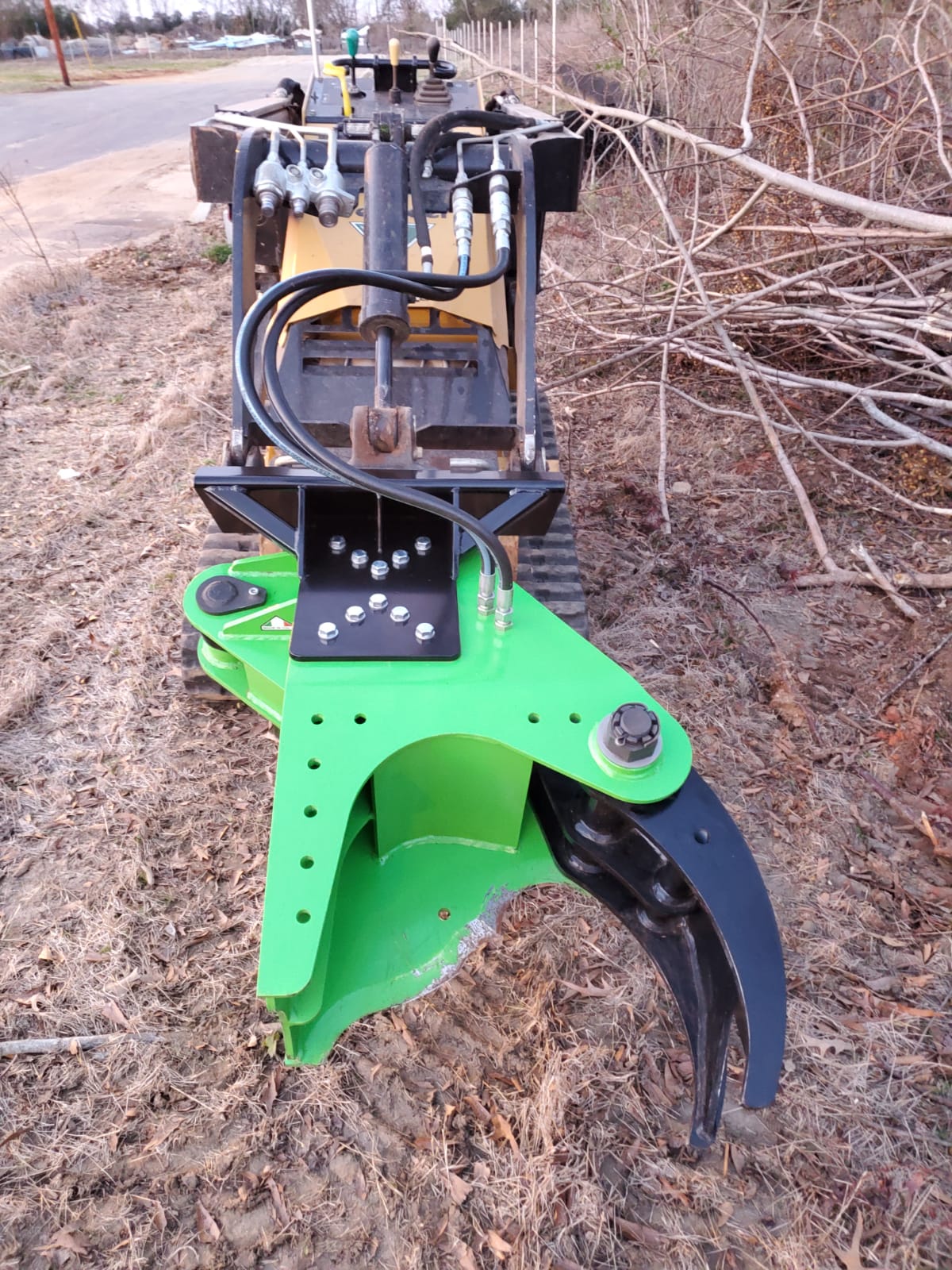

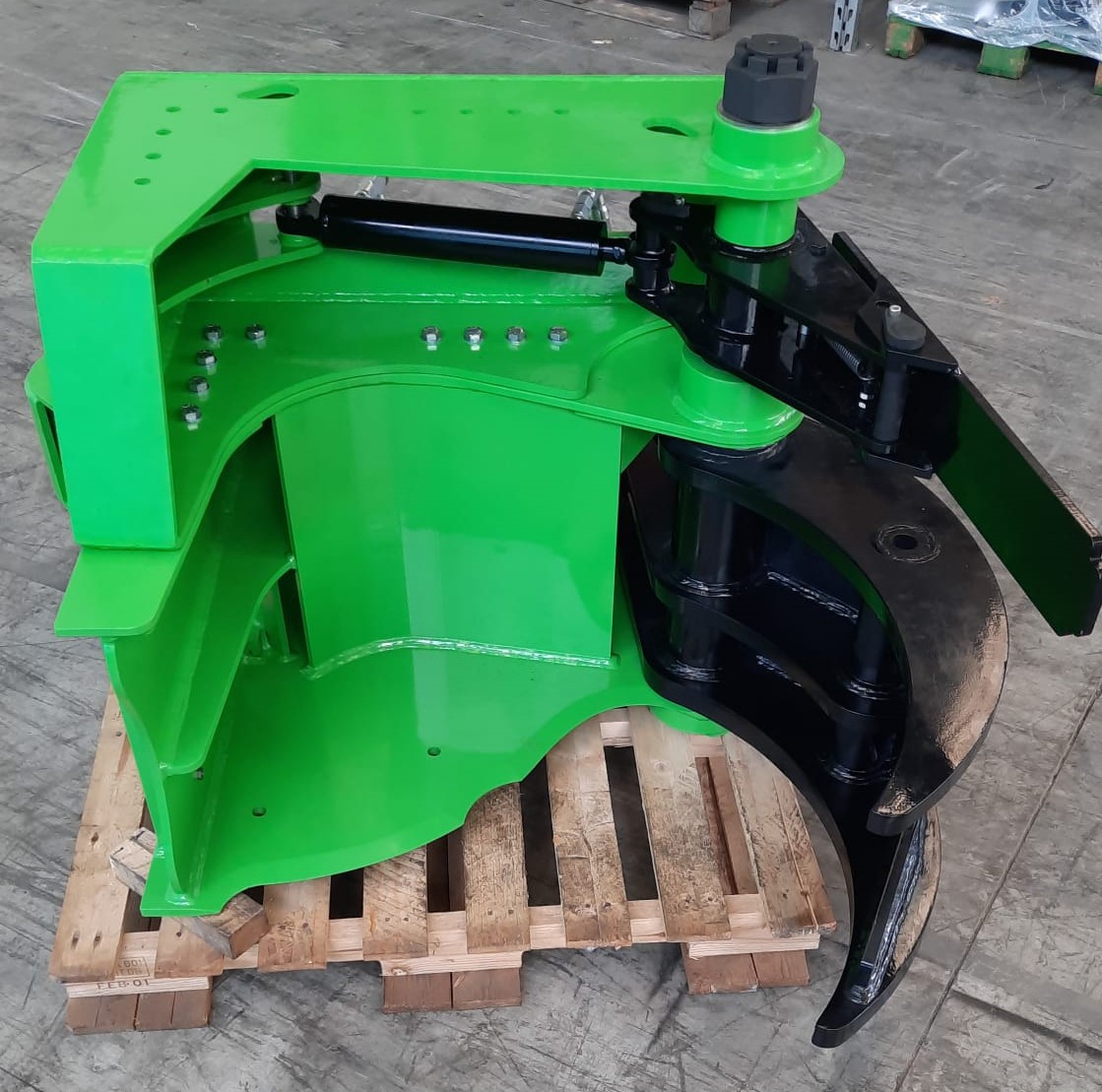

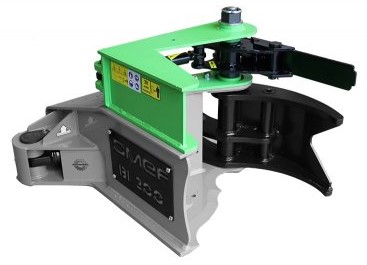

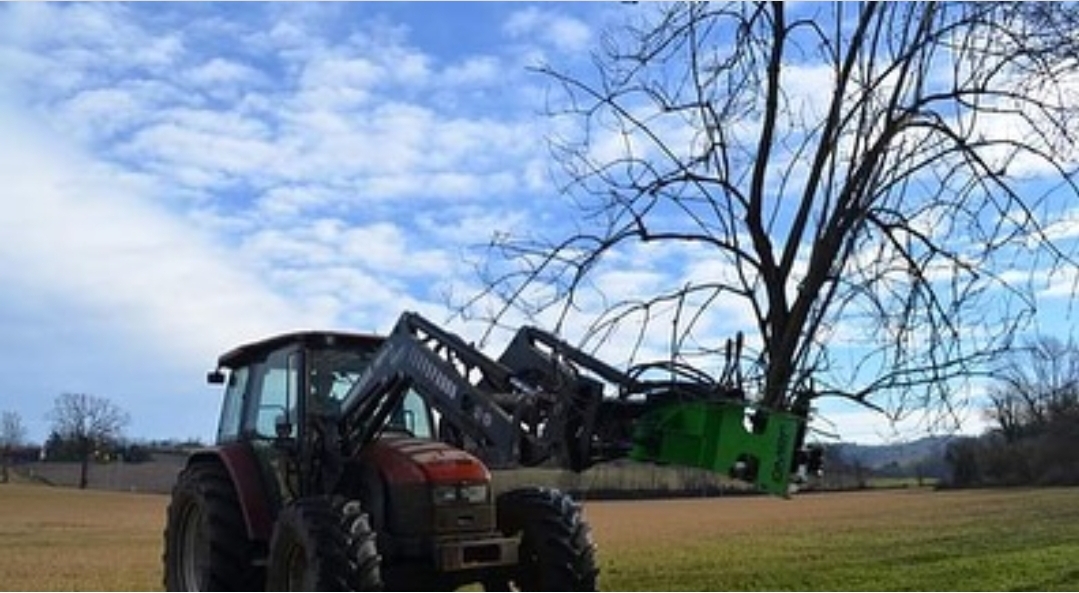

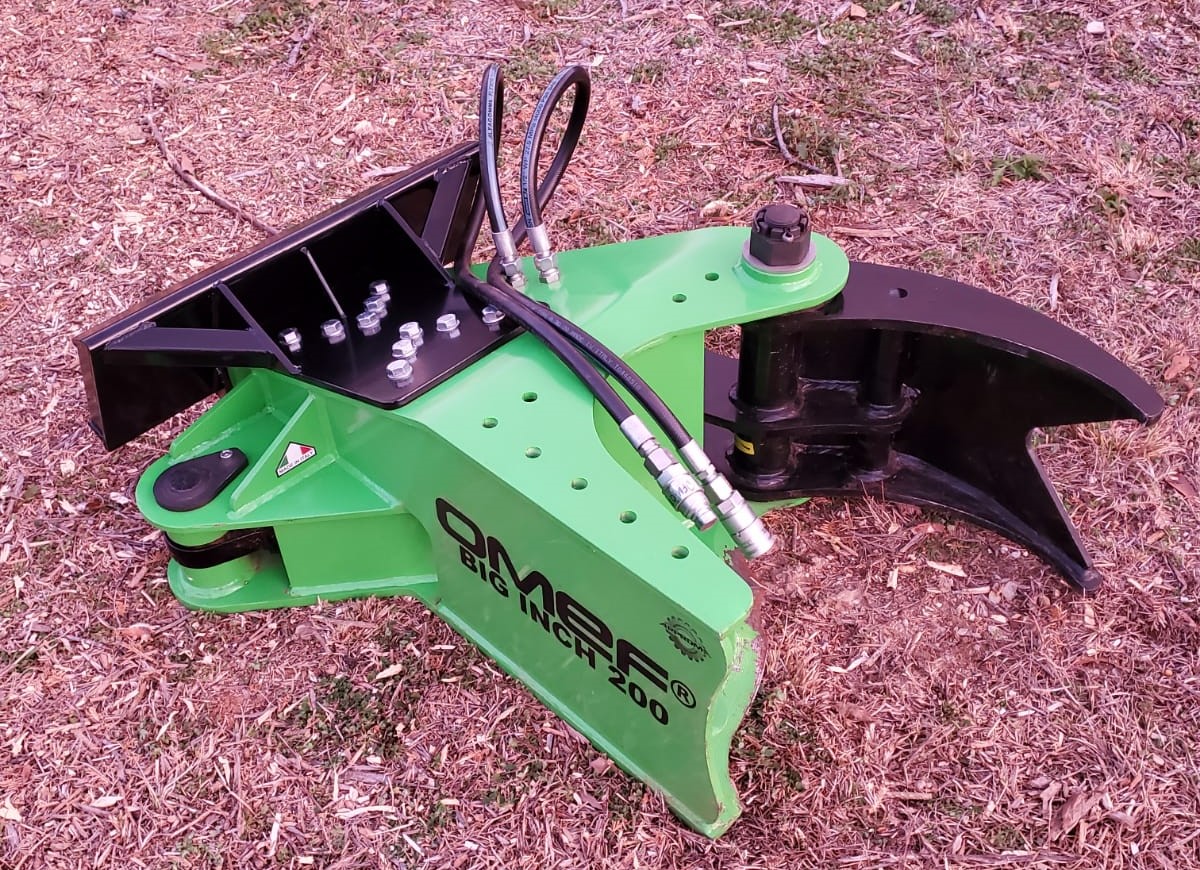

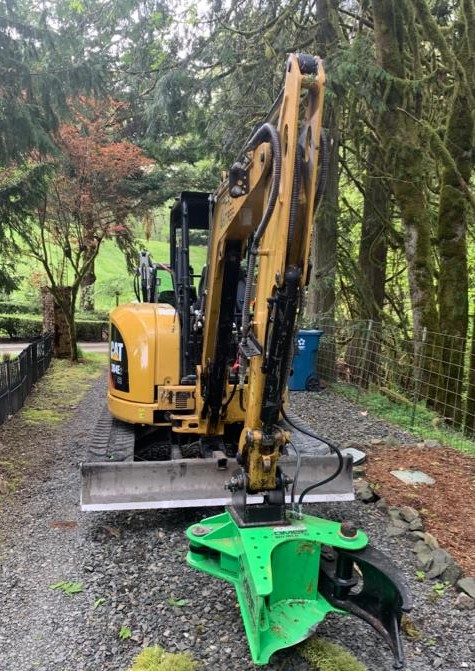

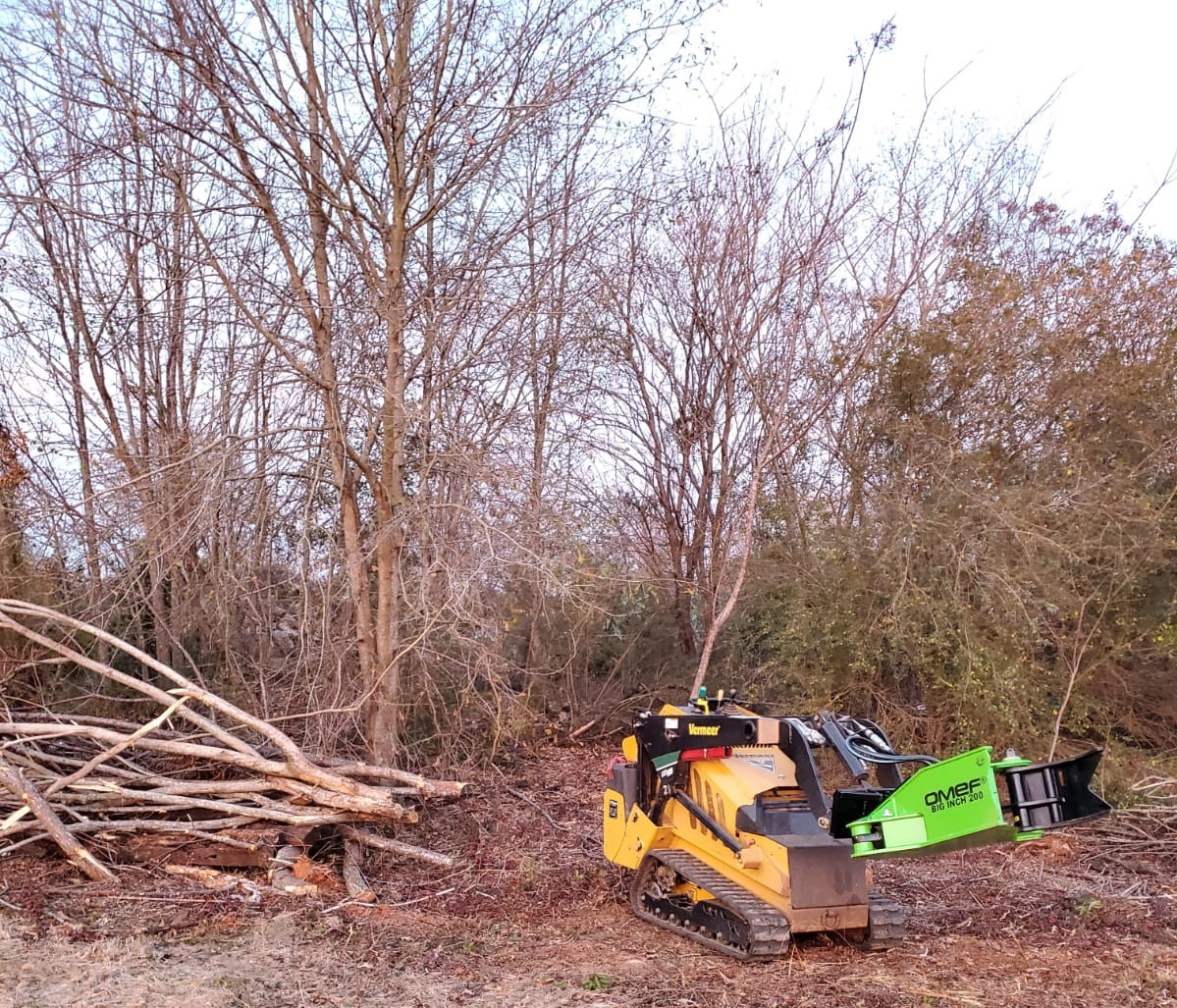

Sturdy and versatile tree-shear, suitable for trees and branches up to 200 mm. It is an attachment for excavators, mini skidsteers, standard skidsteers, or any front-end loader machine. High performing hydraulic cylinder with a force of 20 tonnes, operates the grab allowing for a trunk cut and contemporary hold. Made entirely out of XAR500 wear-resistant steel, which makes the unit light, yet powerful. Equipped with an integrated blade which guarantees a clean, quick cut, limiting operation costs.
Information Material :
Description
| Excavator class weight | 2,5 – 8 tons |
| Attachment weight | 230 Kg / 507 Lbs |
| Min trunk grip | 2″ / 50 mm |
| Max cut opening | 200 mm / 8″ |
| Oil pressure | 180 – 250 bar (min-max) |
| Hydraulic flow | 30 – 80 l/min (min-max) |
| Width | 39″ / 1015 mm |
| Lenght | 35″ / 879 mm |
| Height | 18″ / 452 mm |
