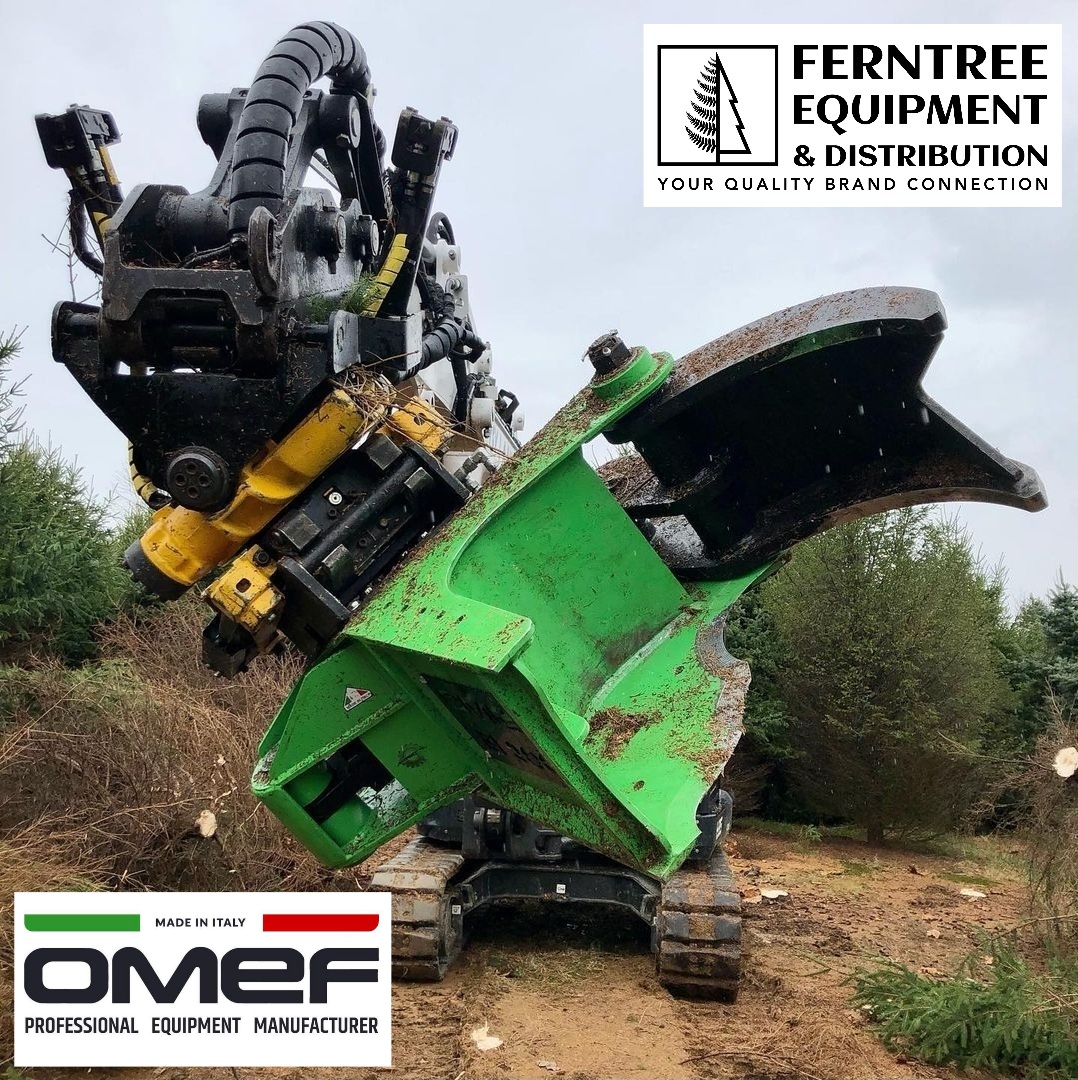

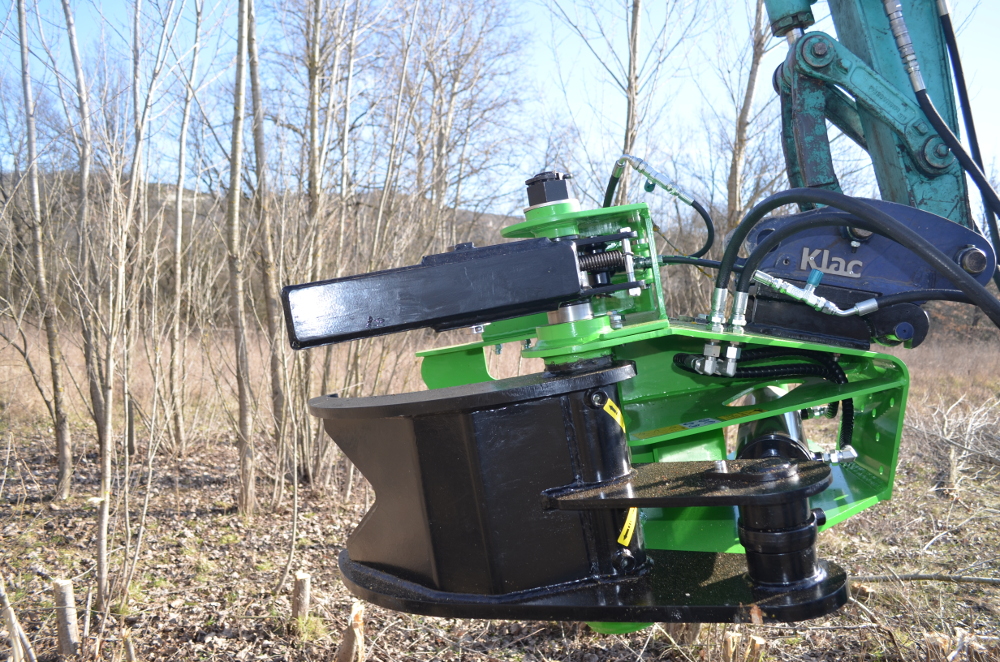

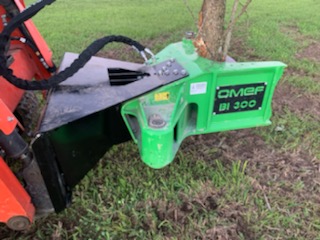

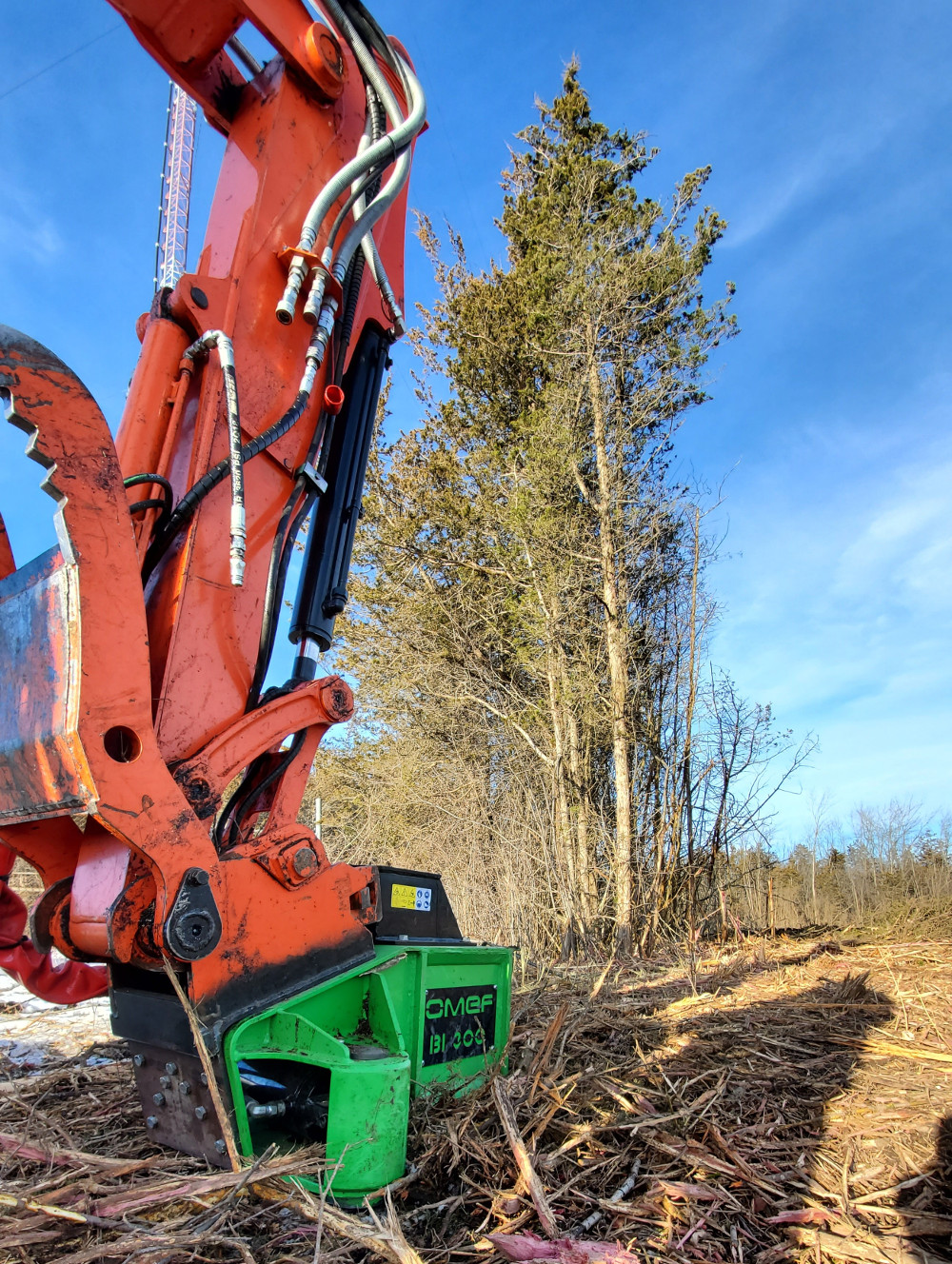

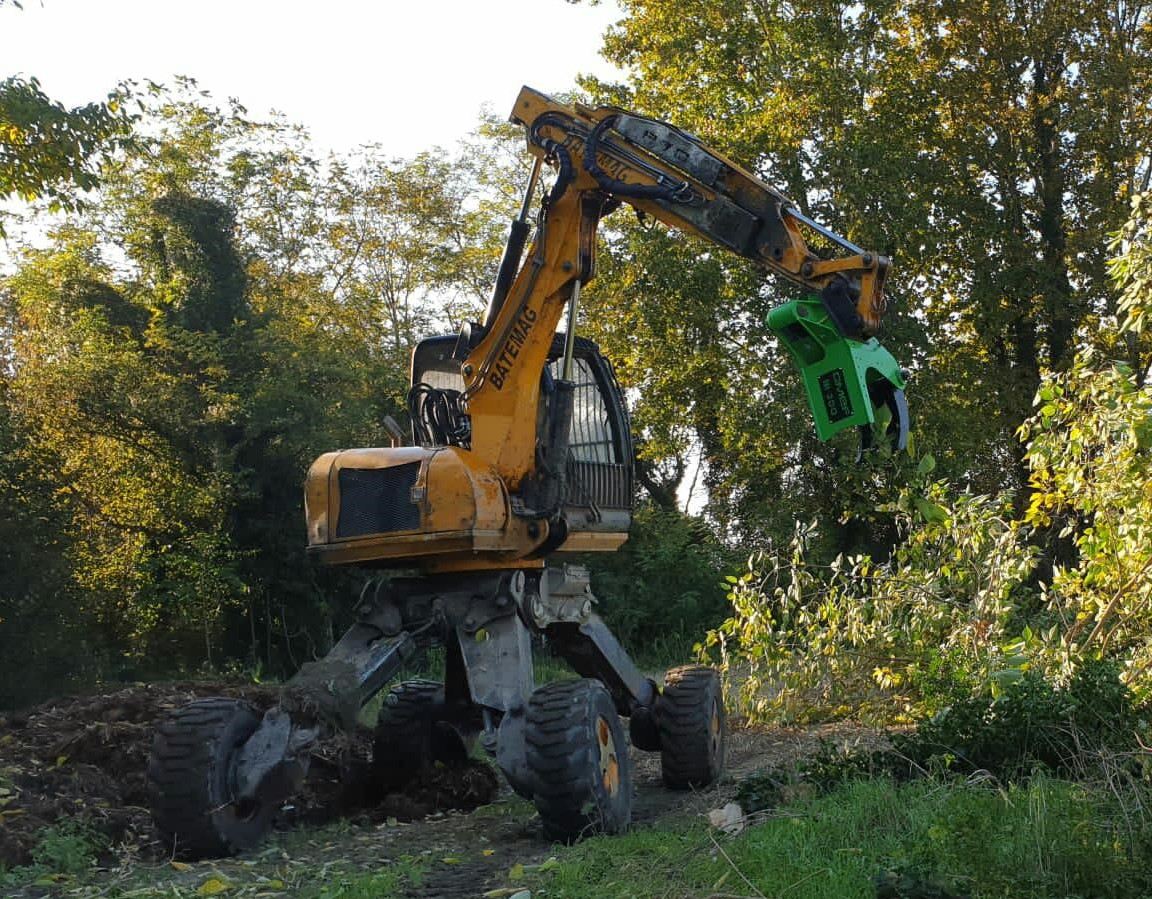

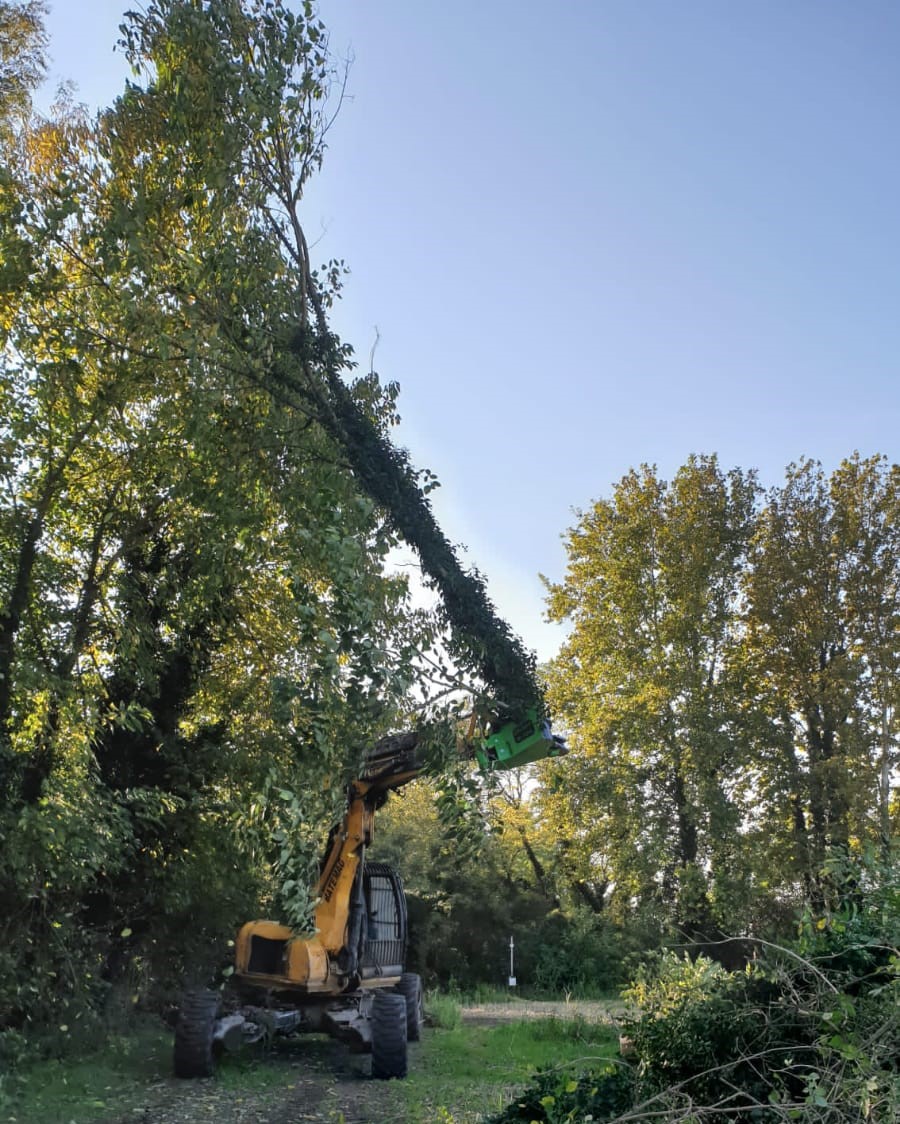

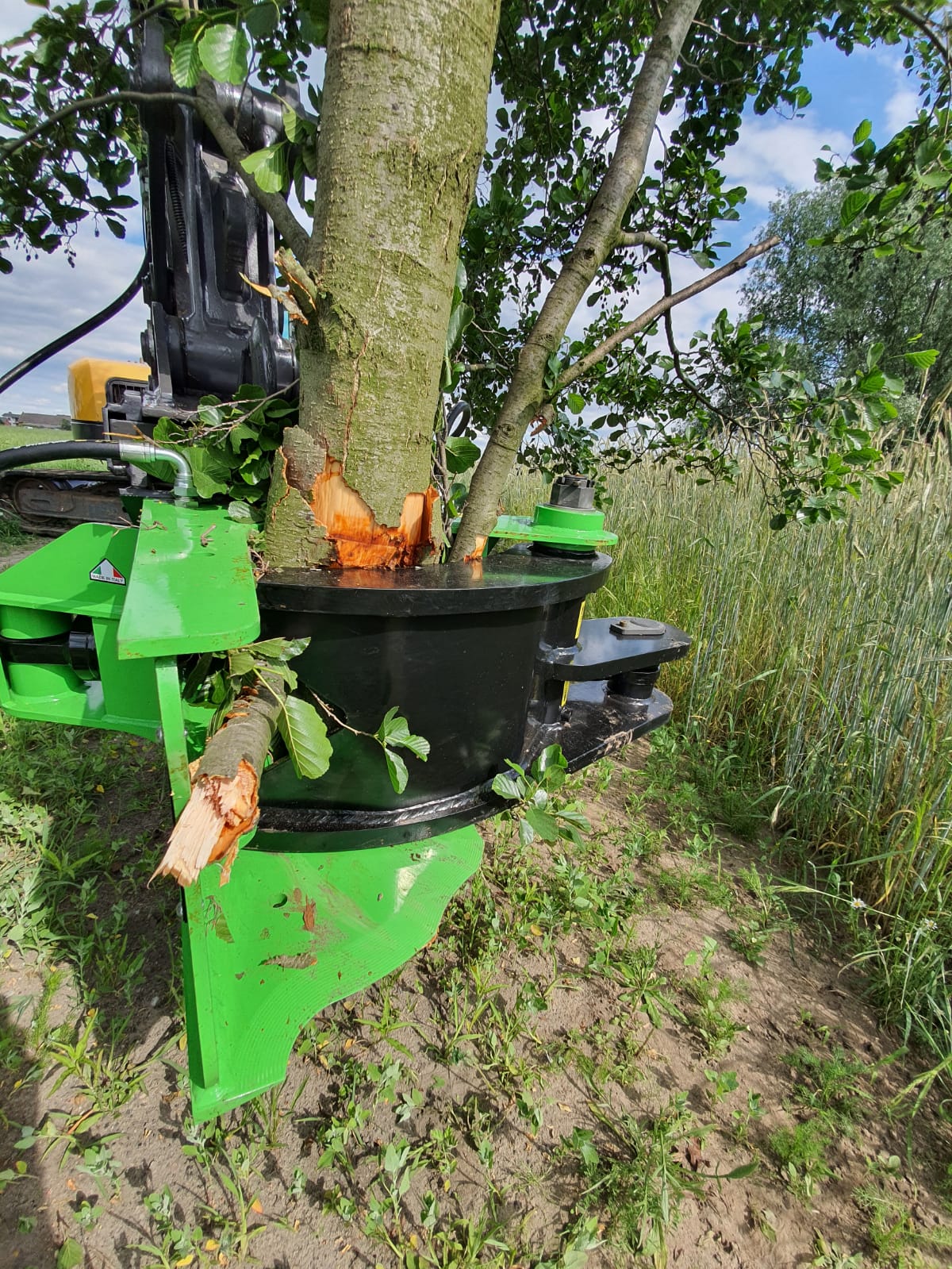

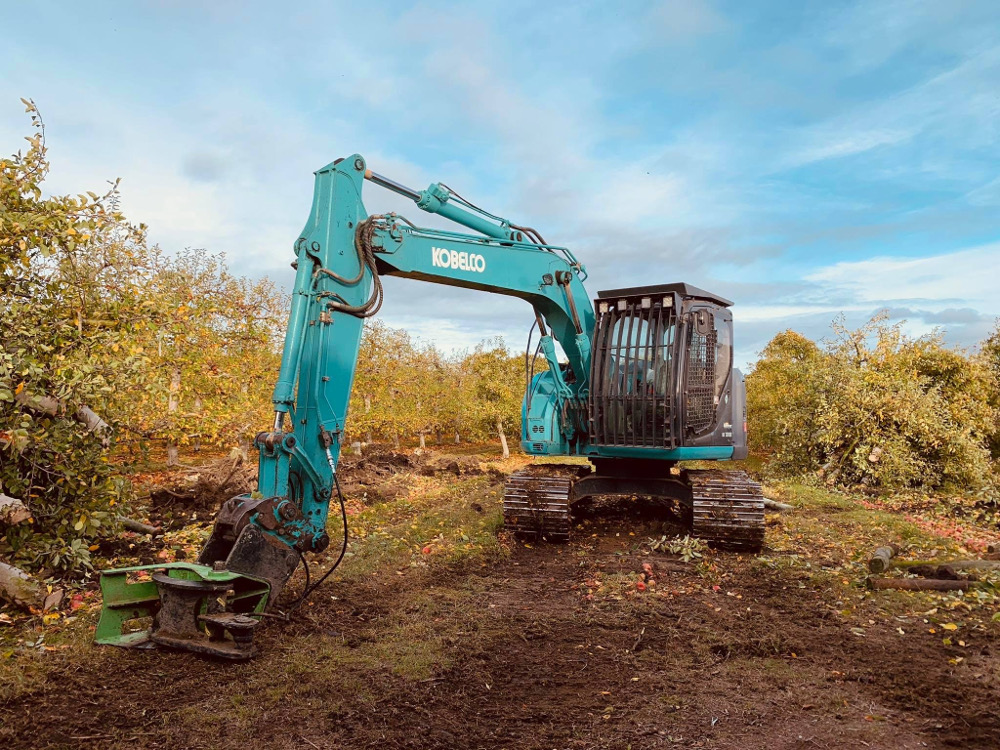

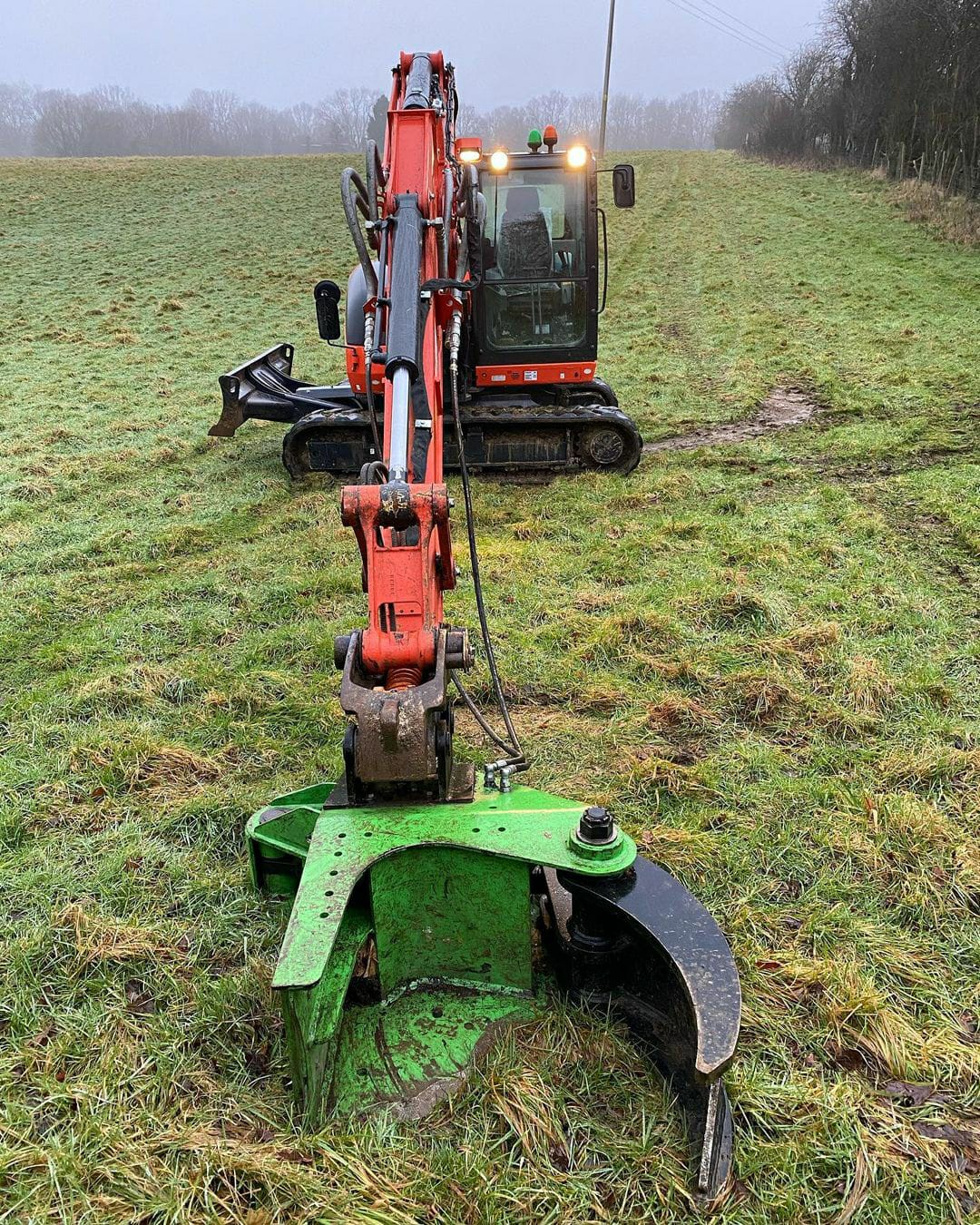

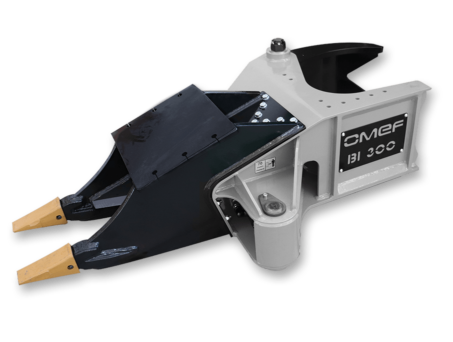

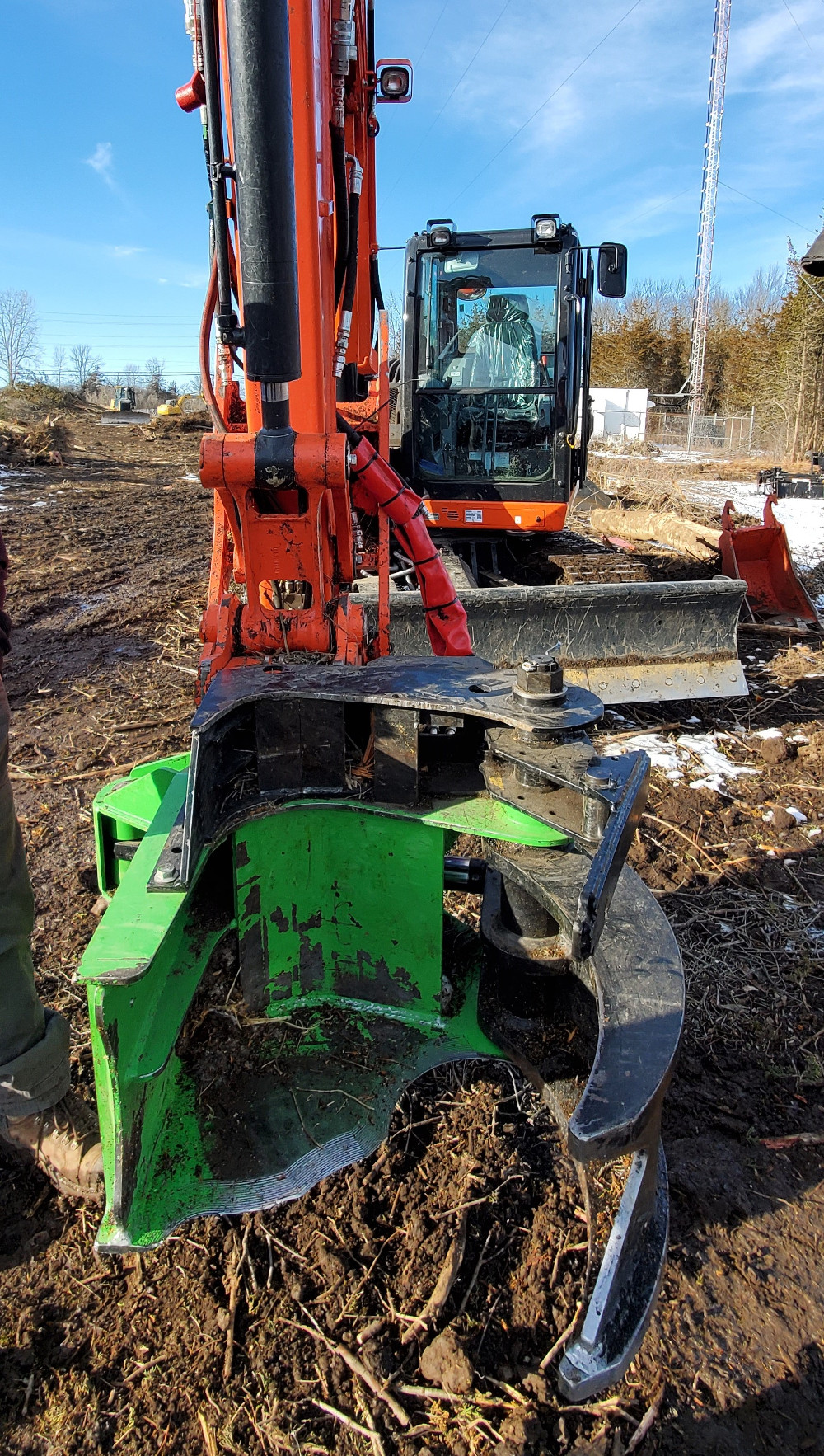

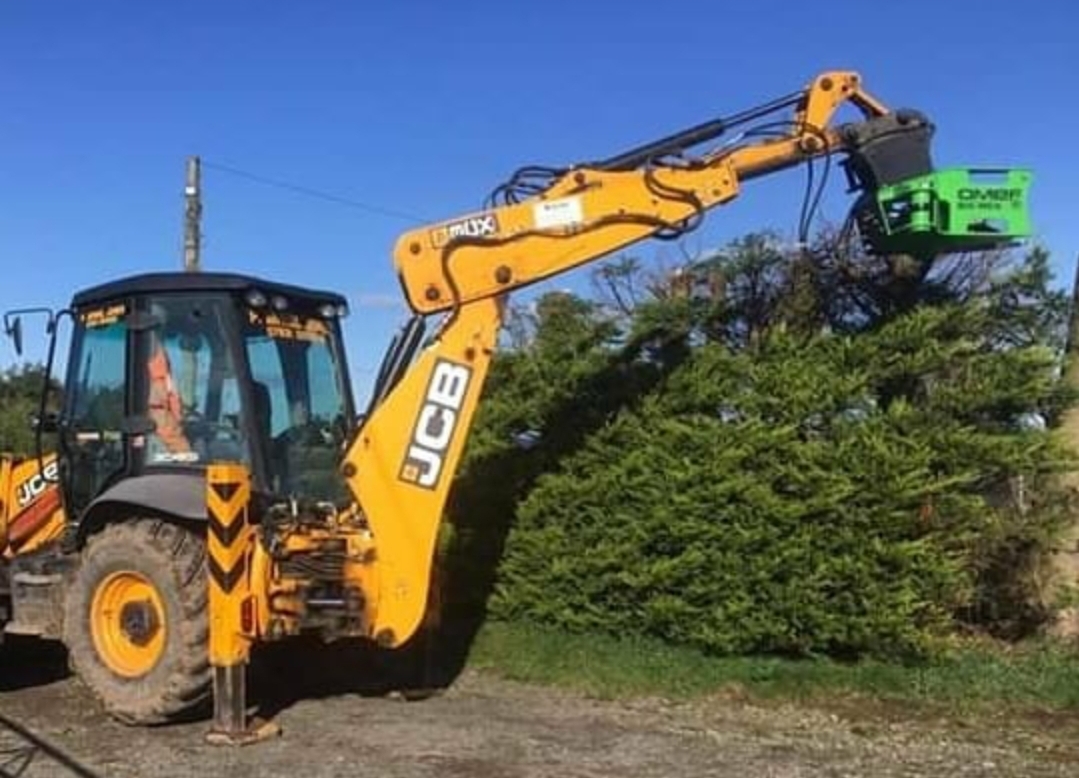

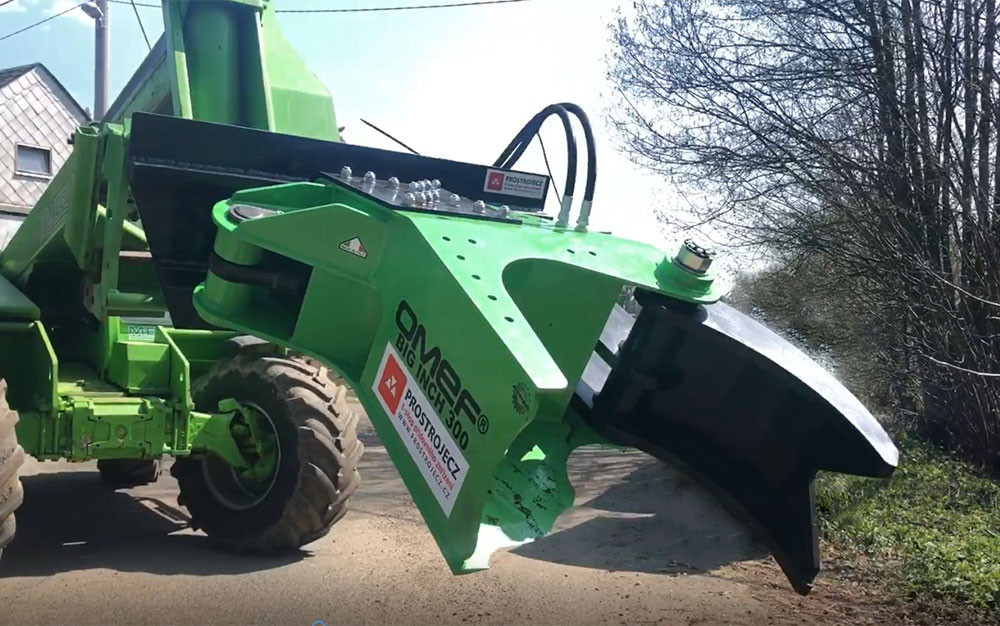

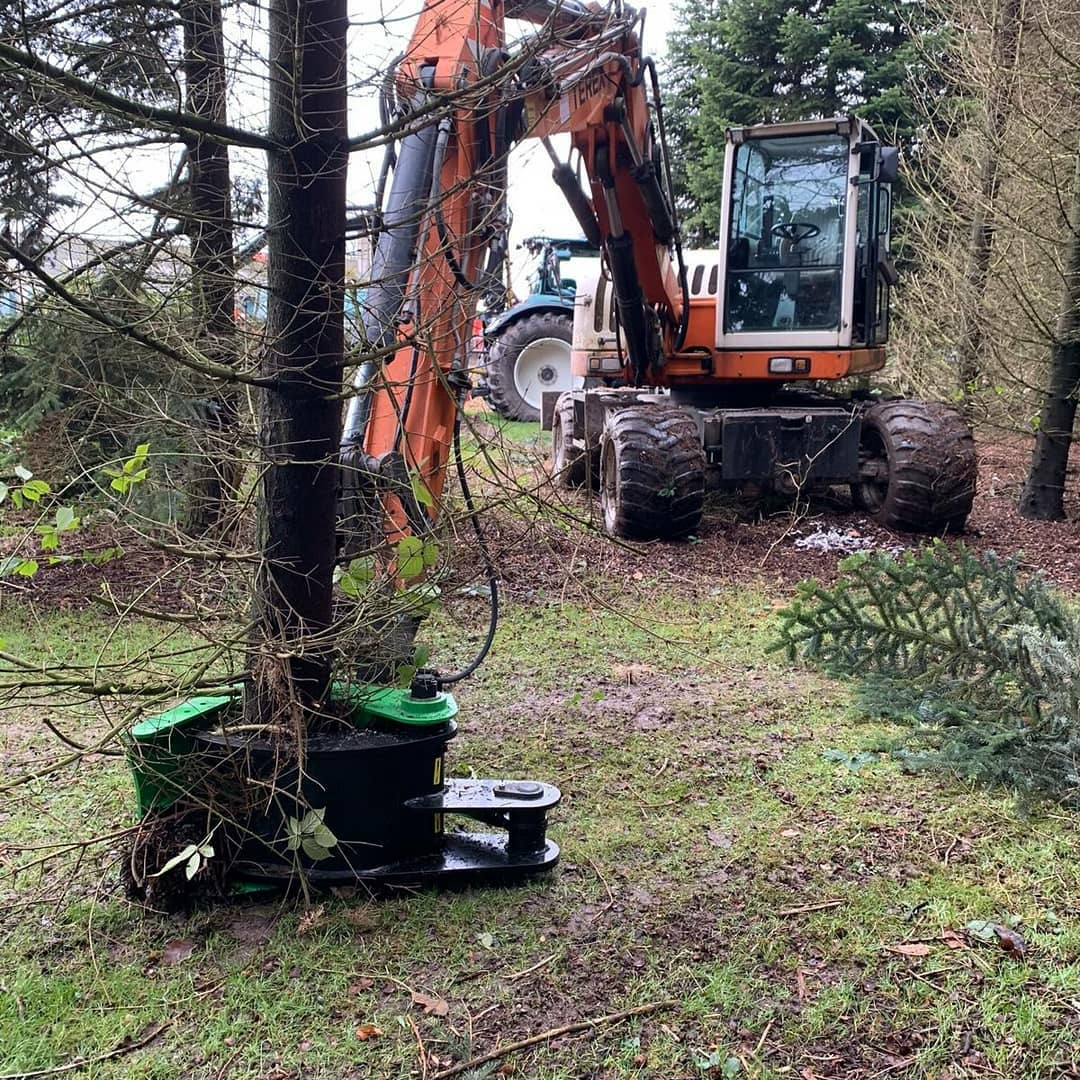

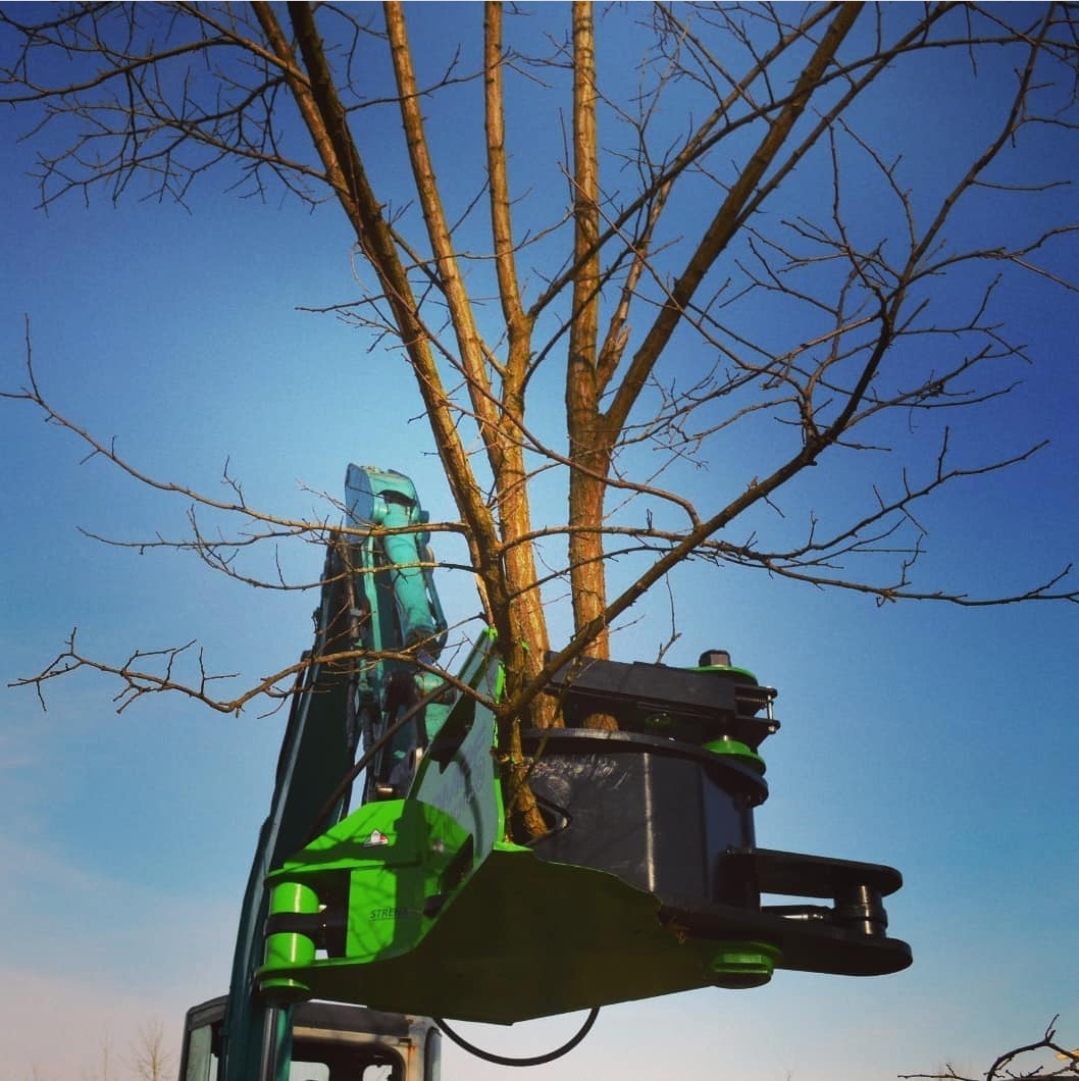

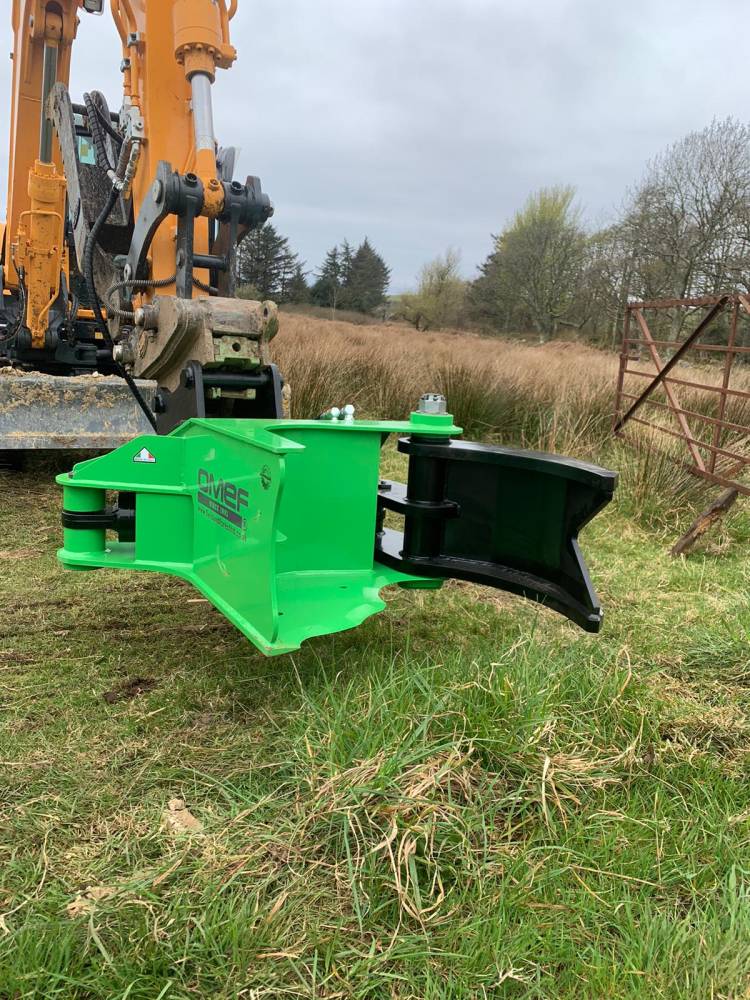

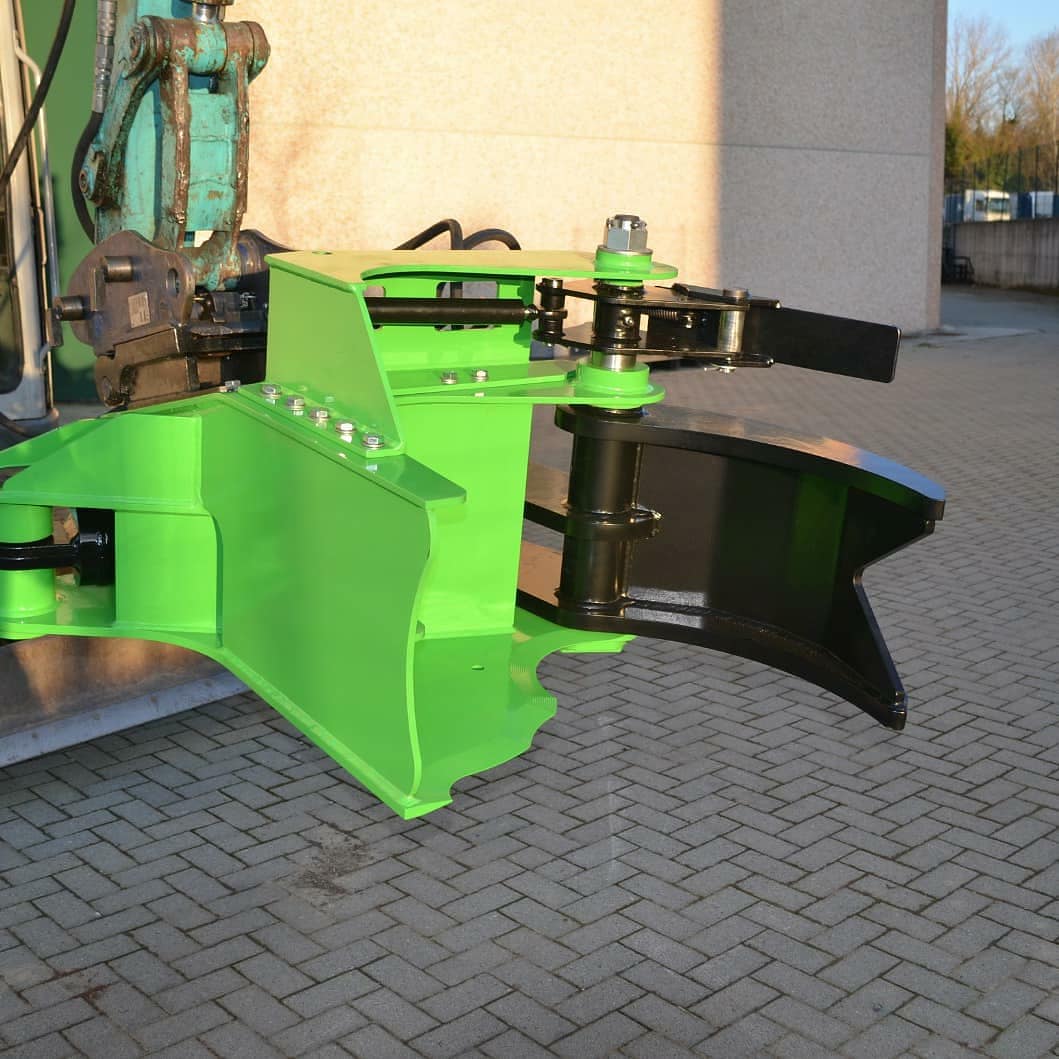

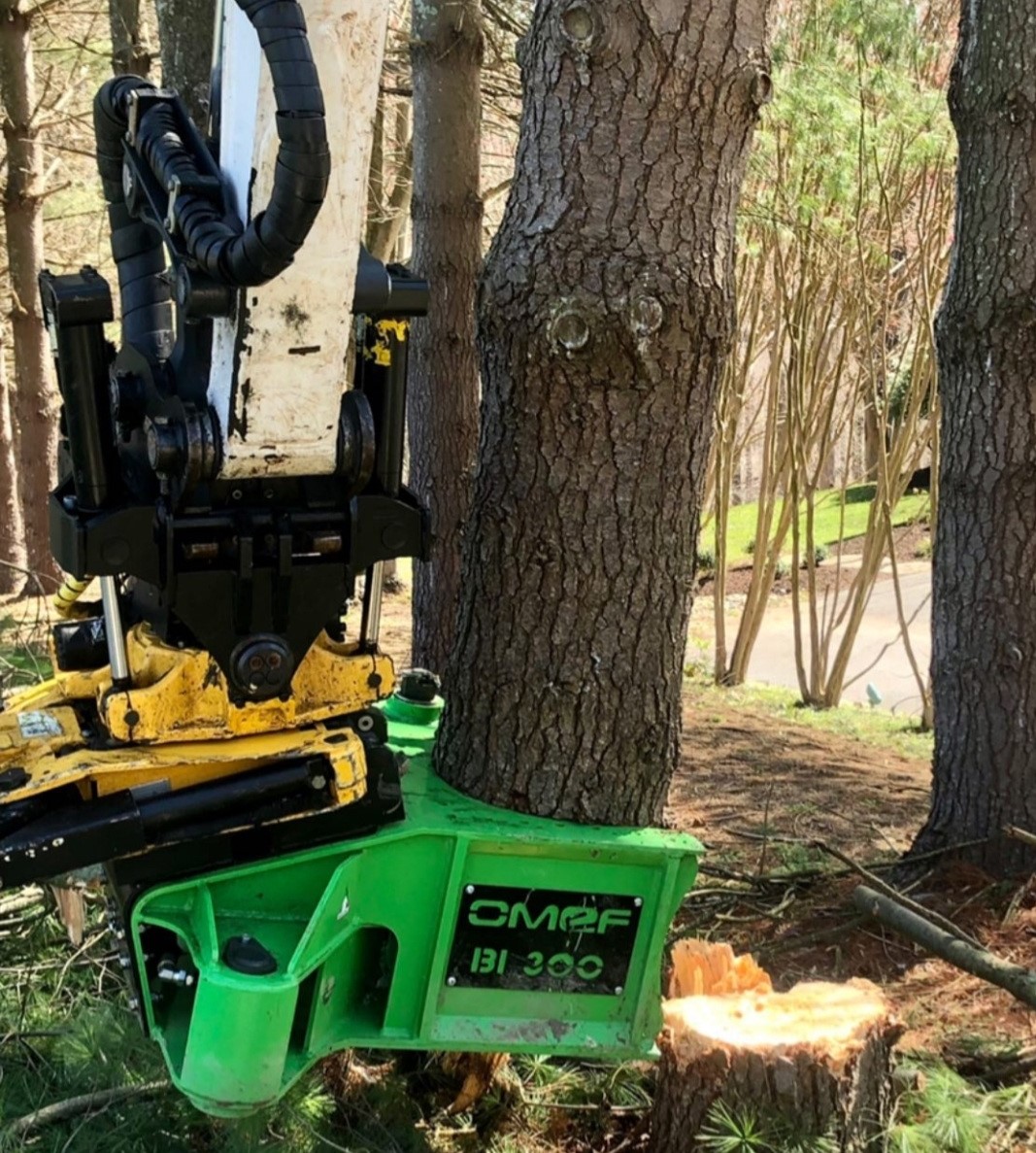

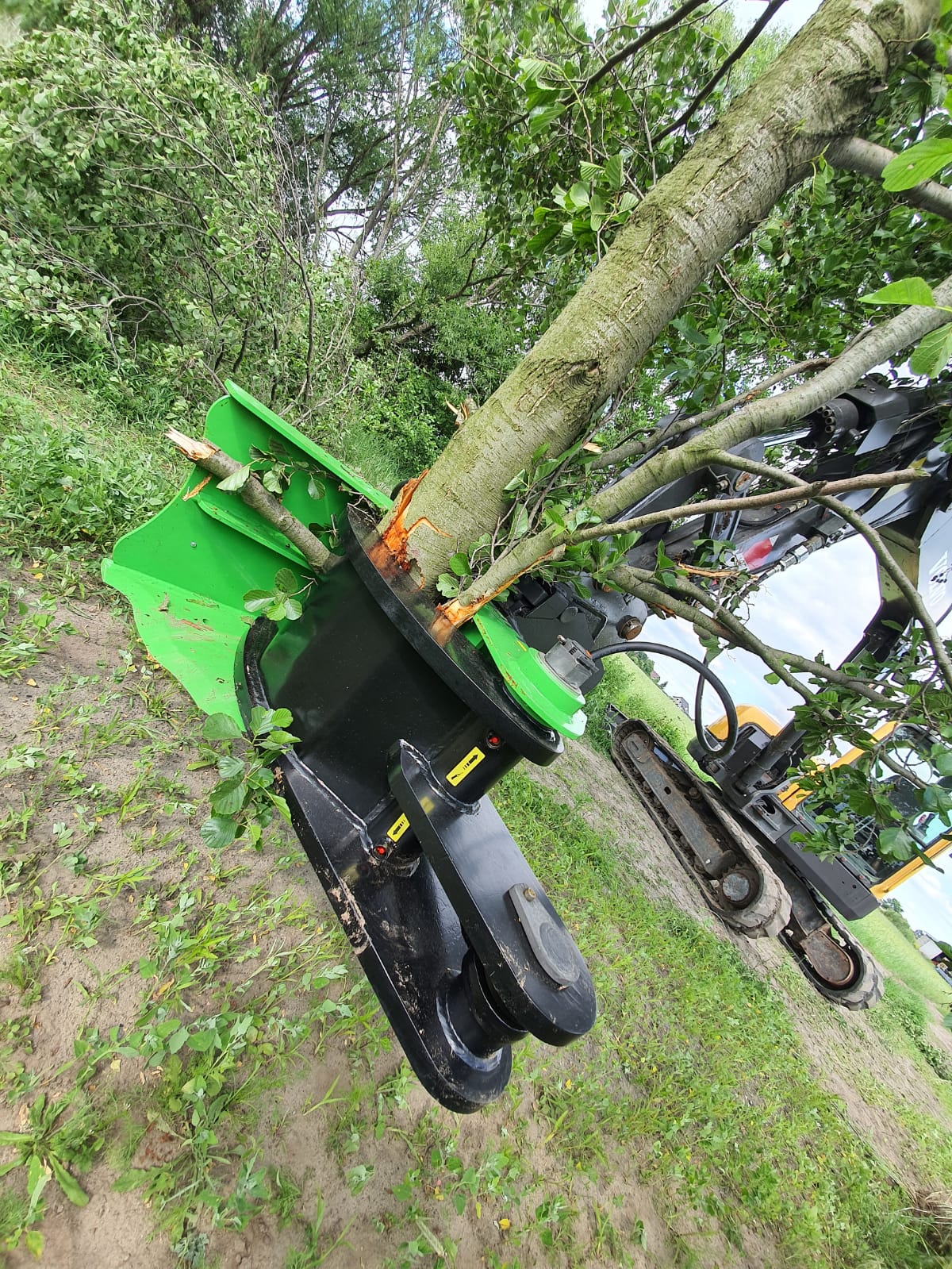

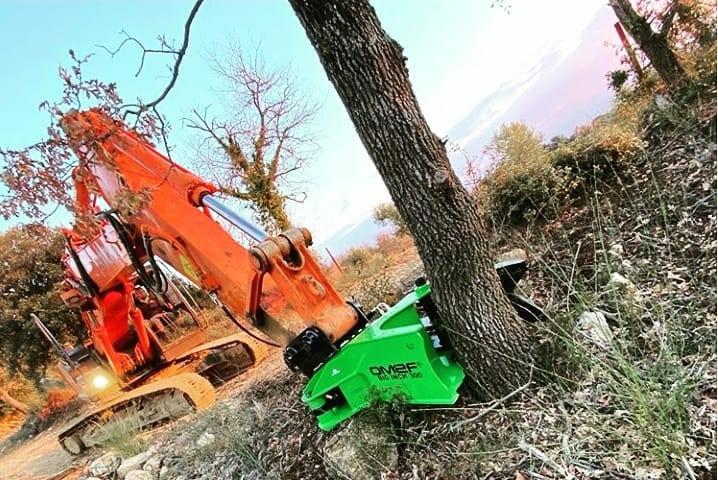

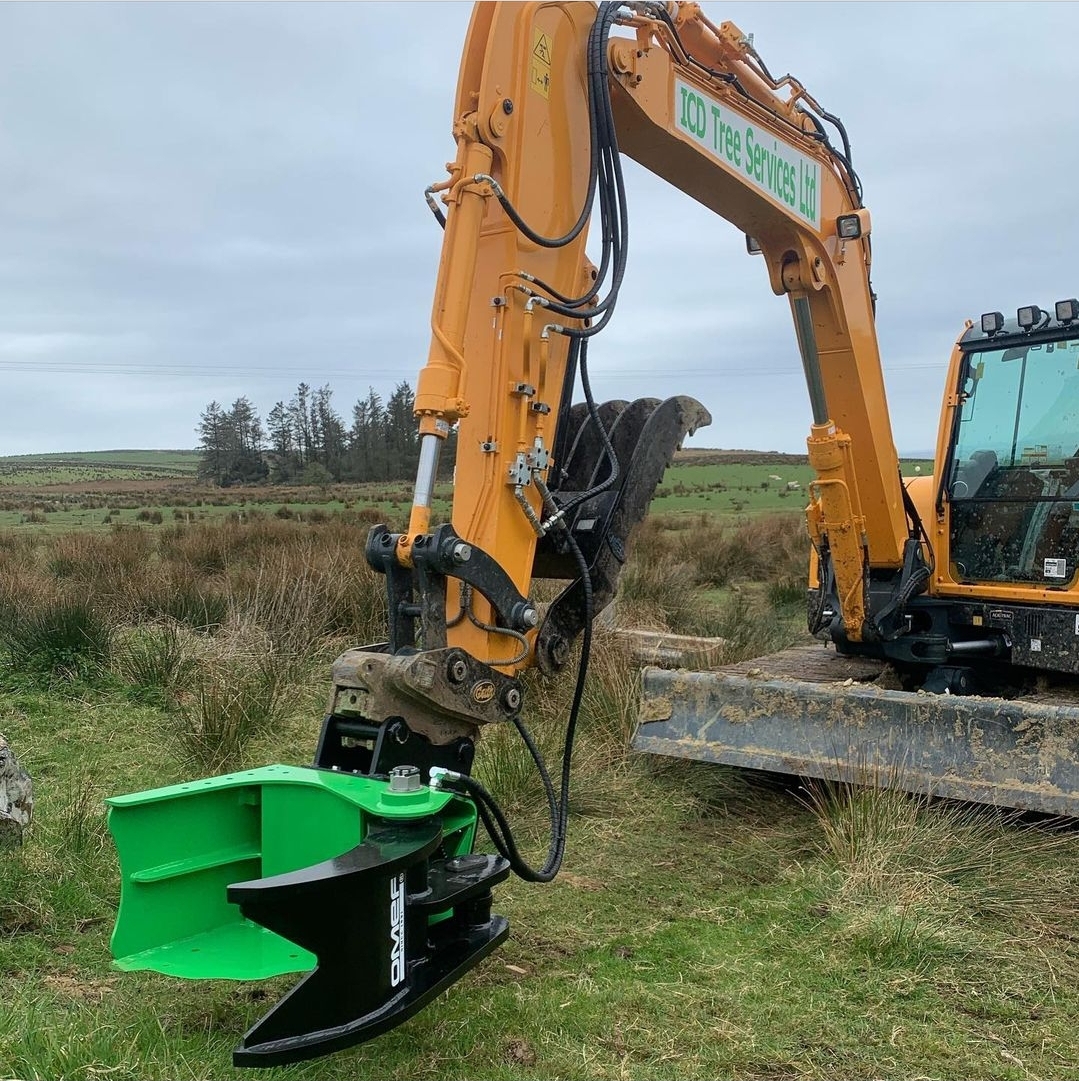

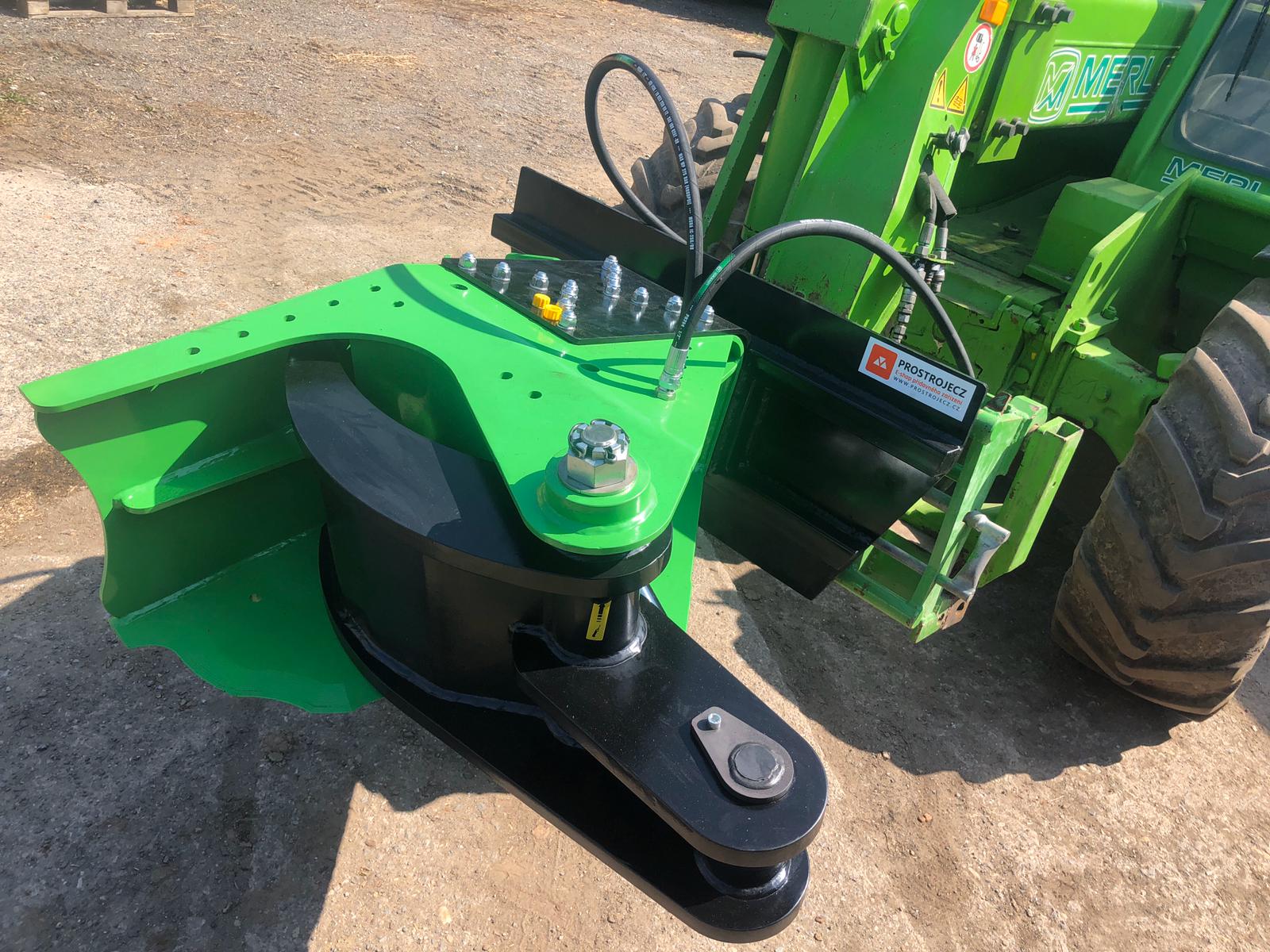

BI300 – BIG INCH

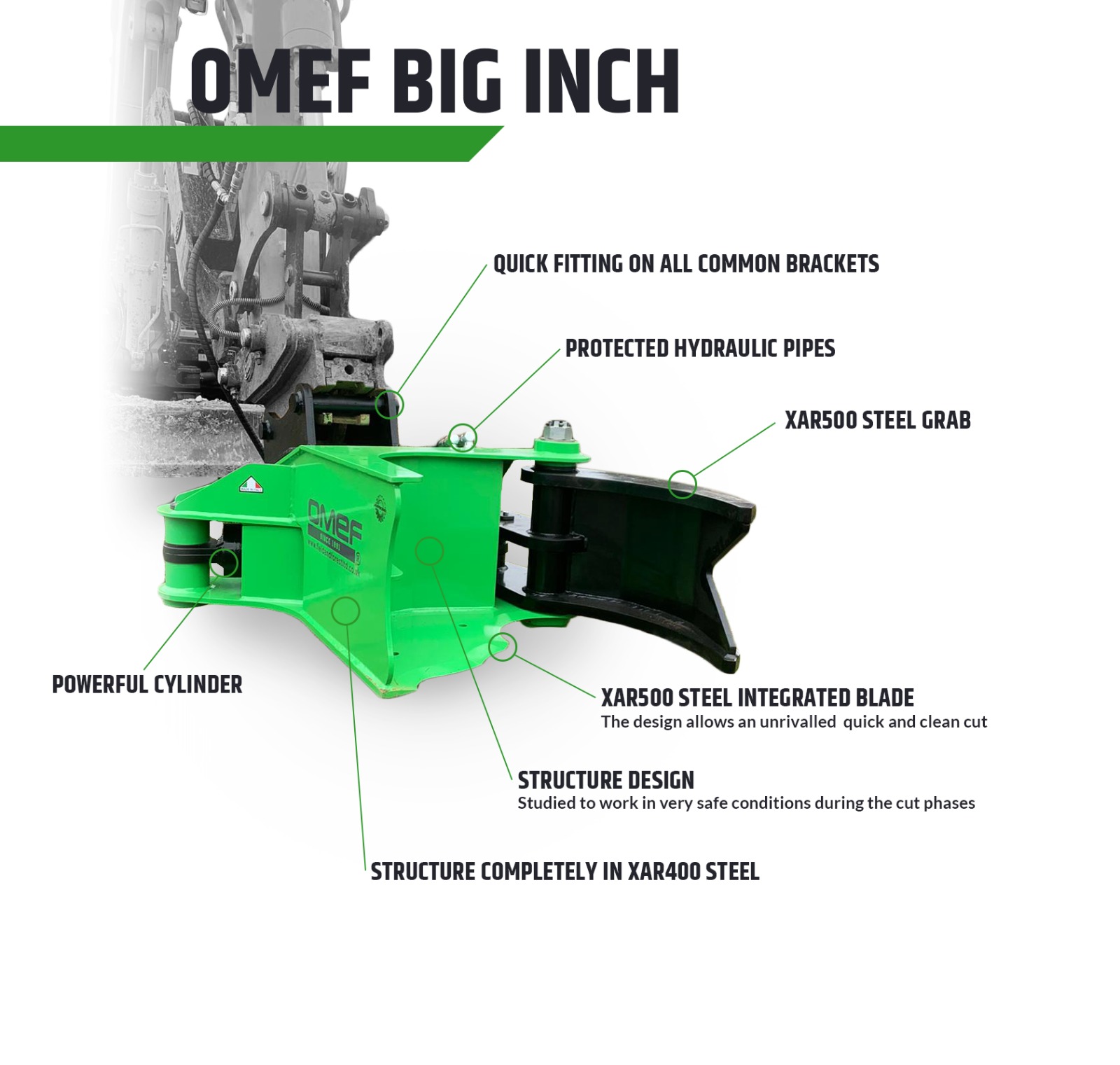

By far the most desirable and popular unit of the range. Suitable for medium-sized operating machines, such as The performance of this unit allows for high productivity with a cutting capacity up to a 300 mm diameter. Equipped with a 33 tonne cylinder for force.
Information Material :
Description
| Excavator class weight | 7 – 18 tons |
| Attachment weight | 420 Kg / 925 Lbs |
| Min trunk grip | 2.5″ / 60 mm |
| Max cut diameter | 300 mm / 12″ |
| Oil pressure | 180 – 250 bar (min-max) |
| Hydraulic flow | 50 – 120 l/min (min-max) |
| Width | 41″ / 1040 mm |
| Lenght | 55″ / 1360 mm |
| Height | 22″ / 552 mm |
