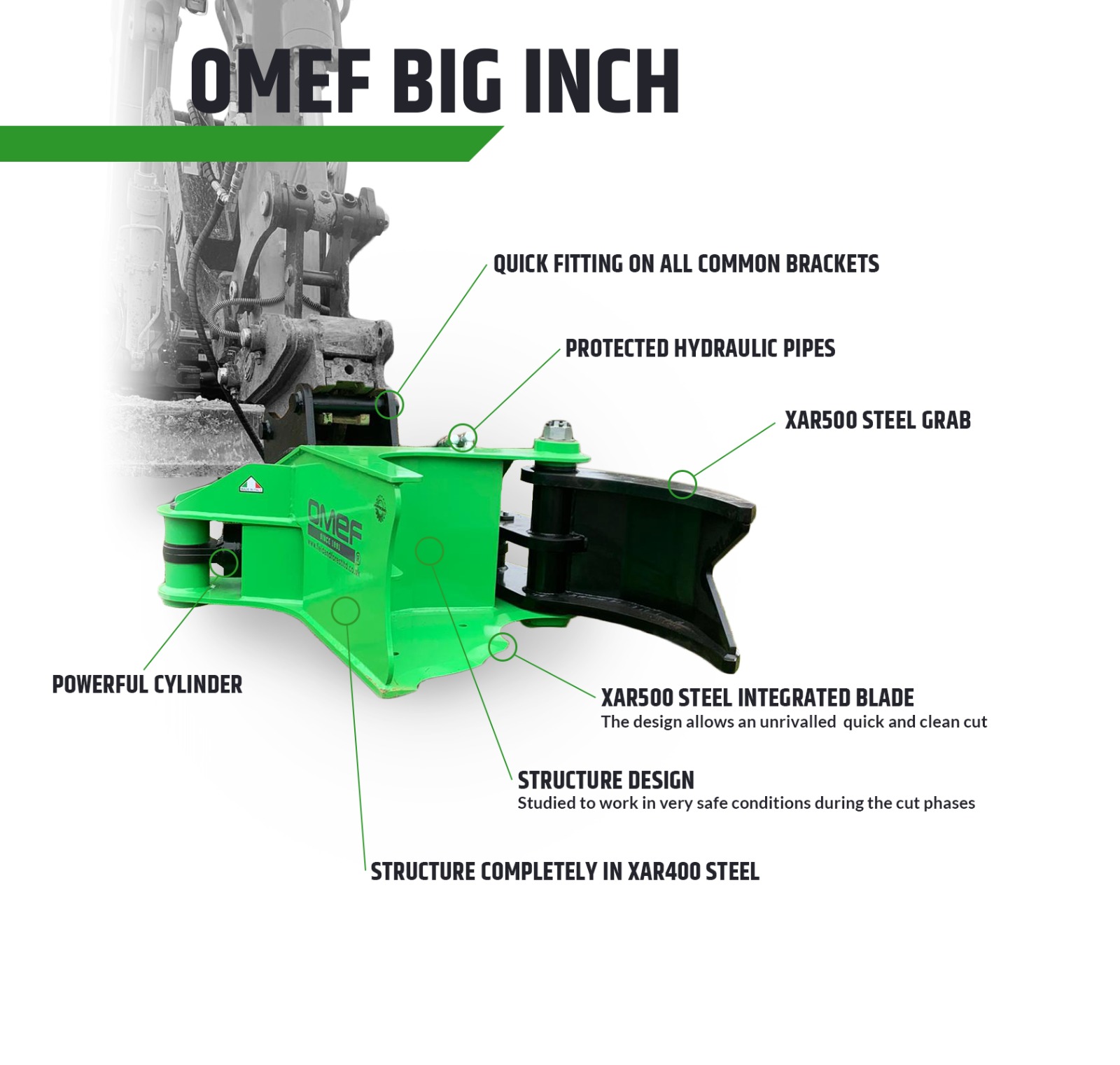

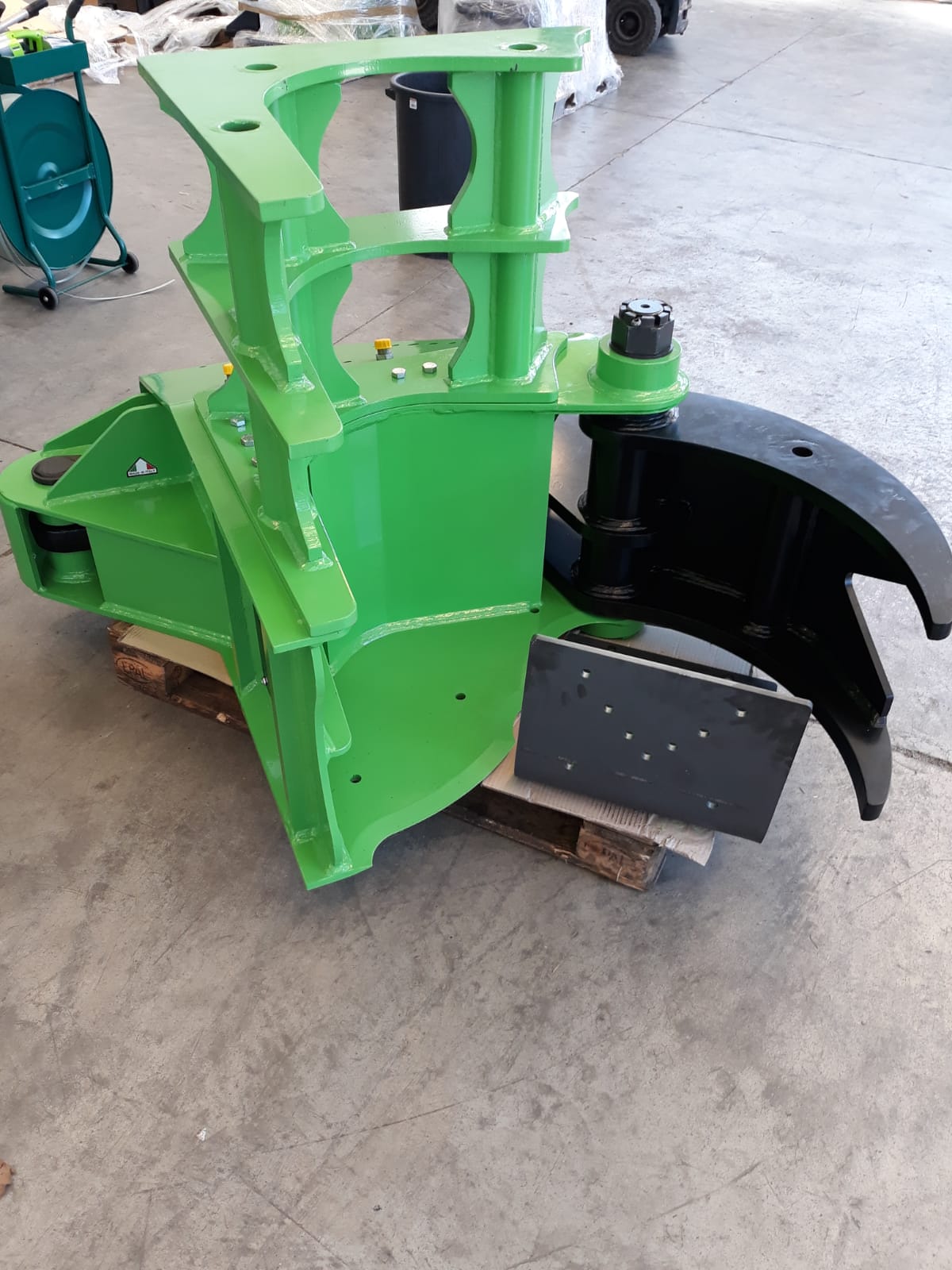

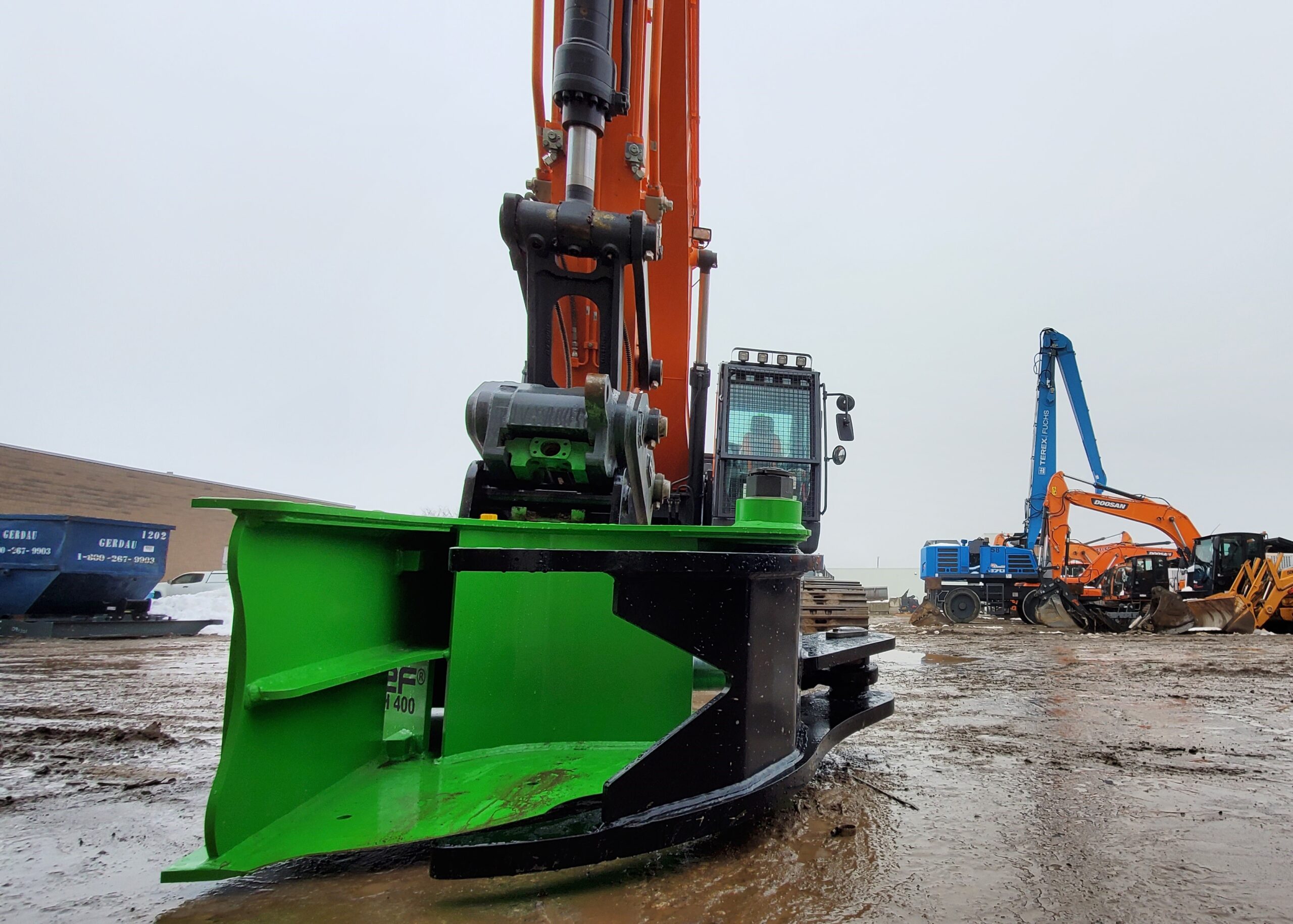

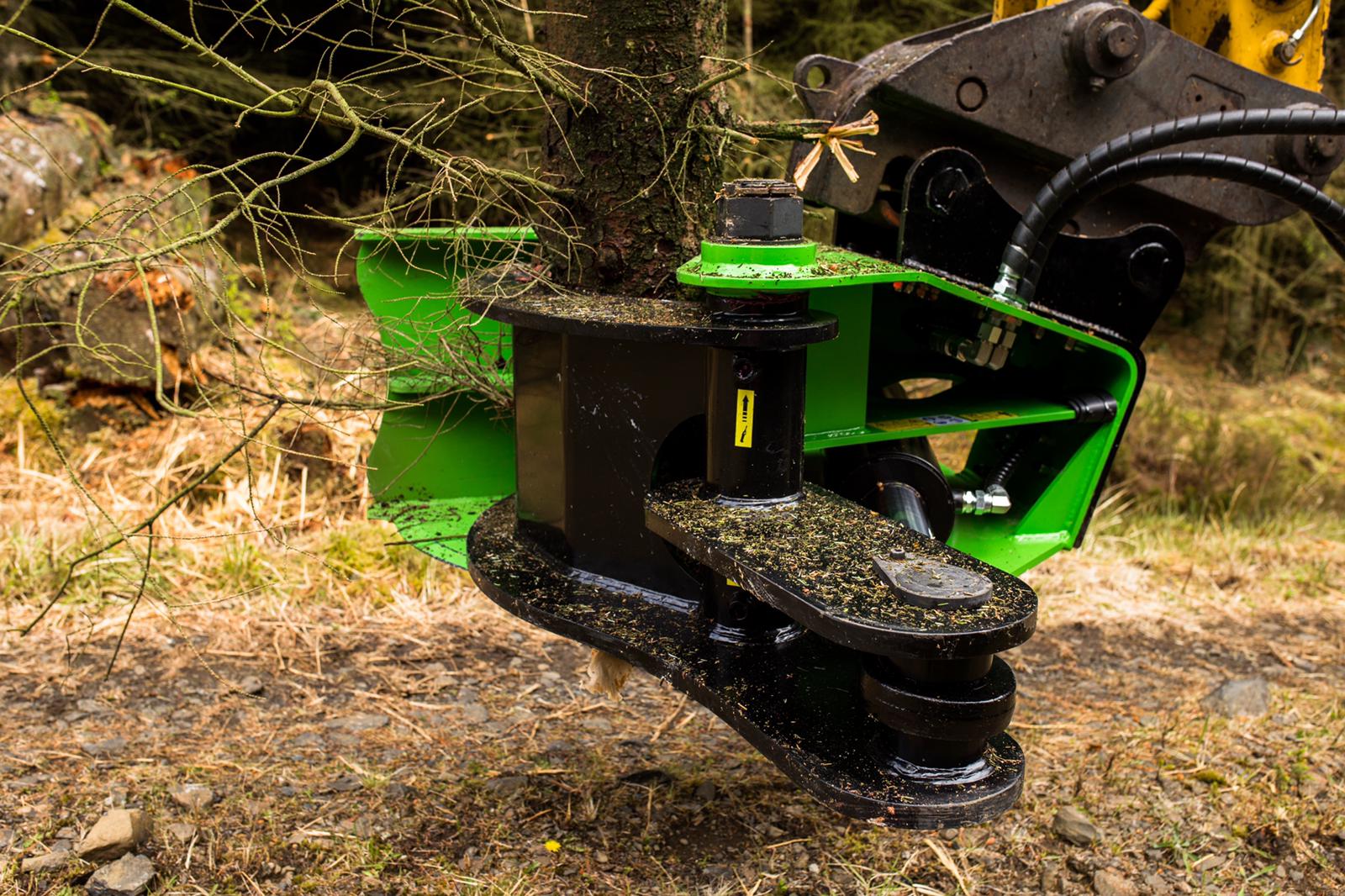

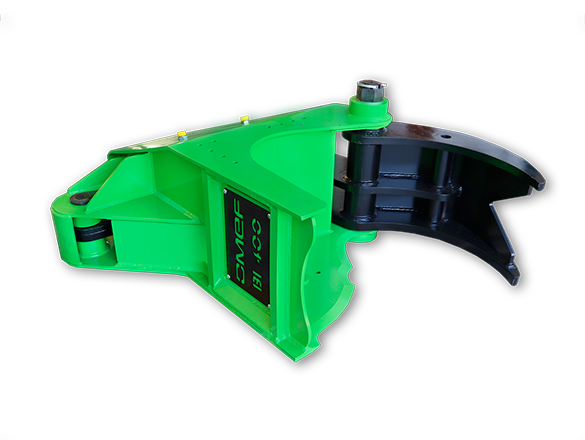

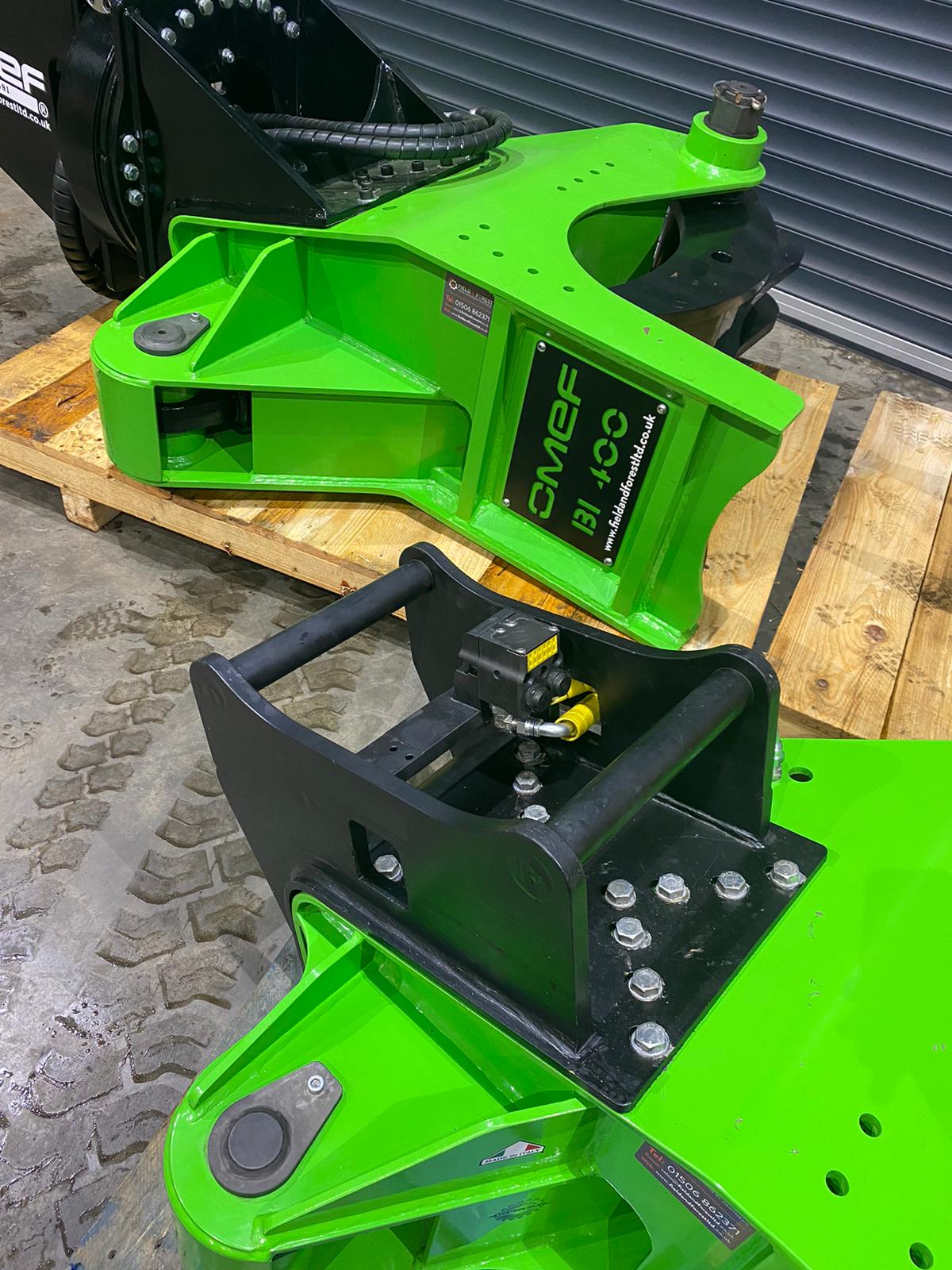

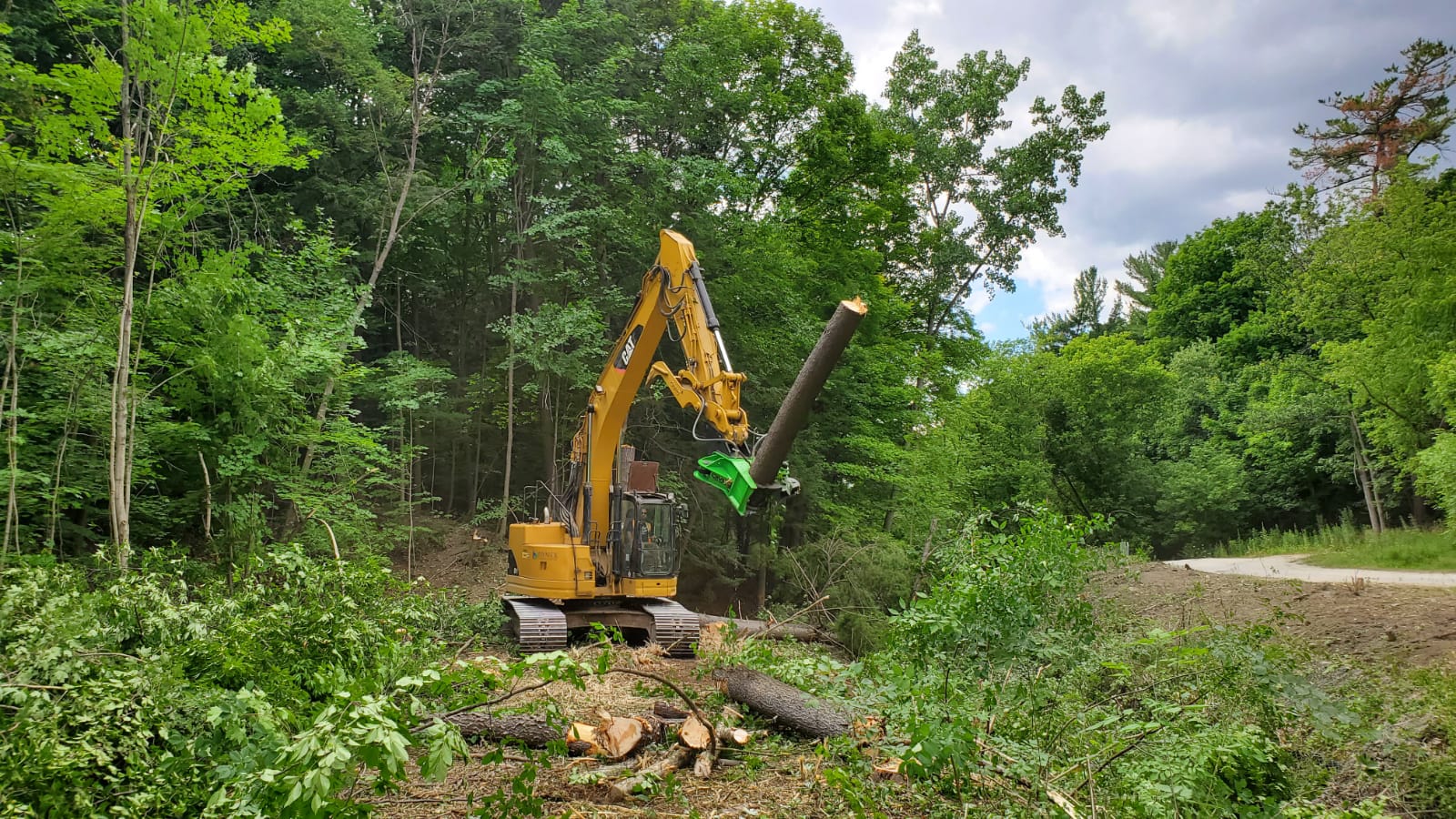

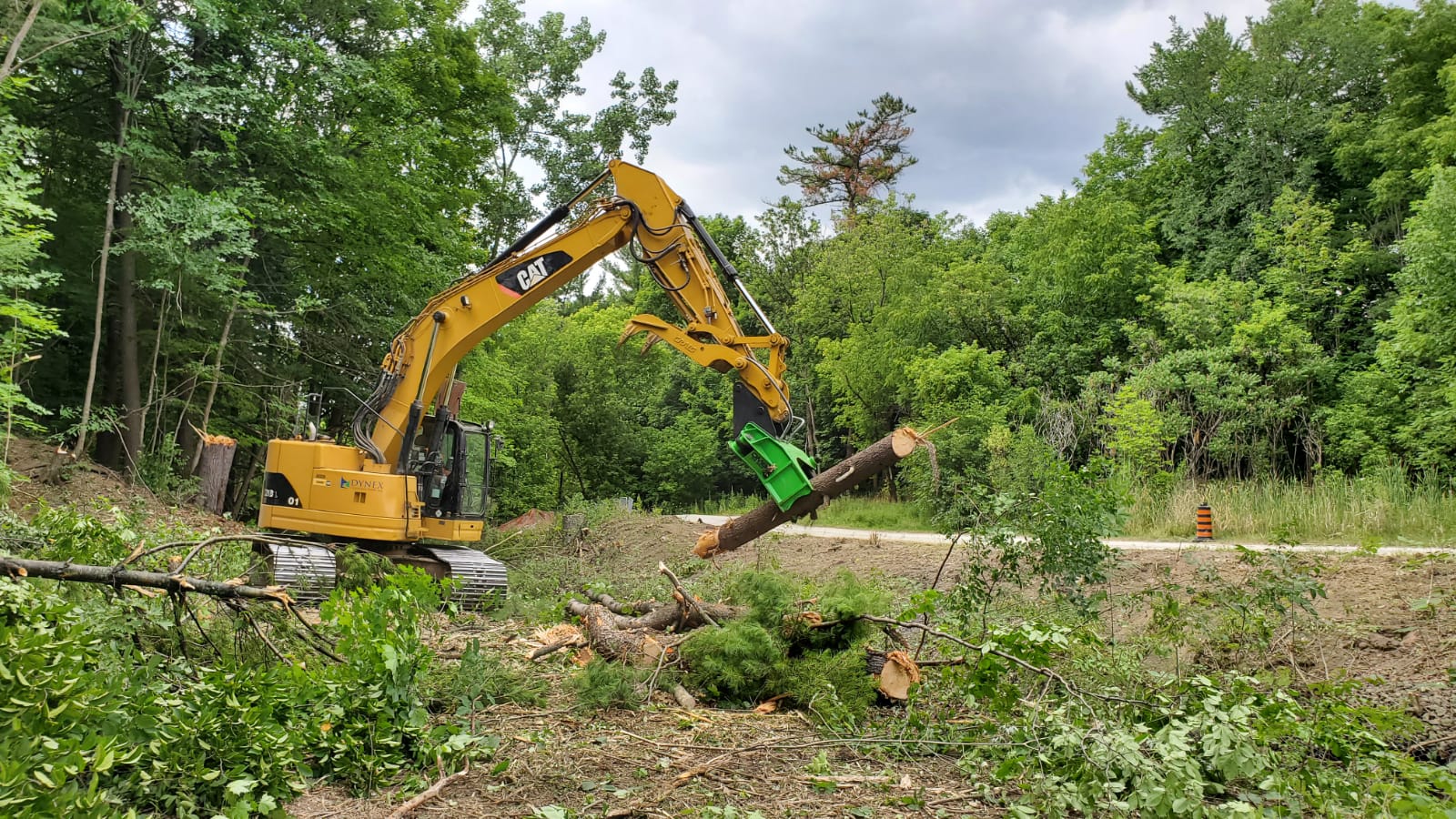

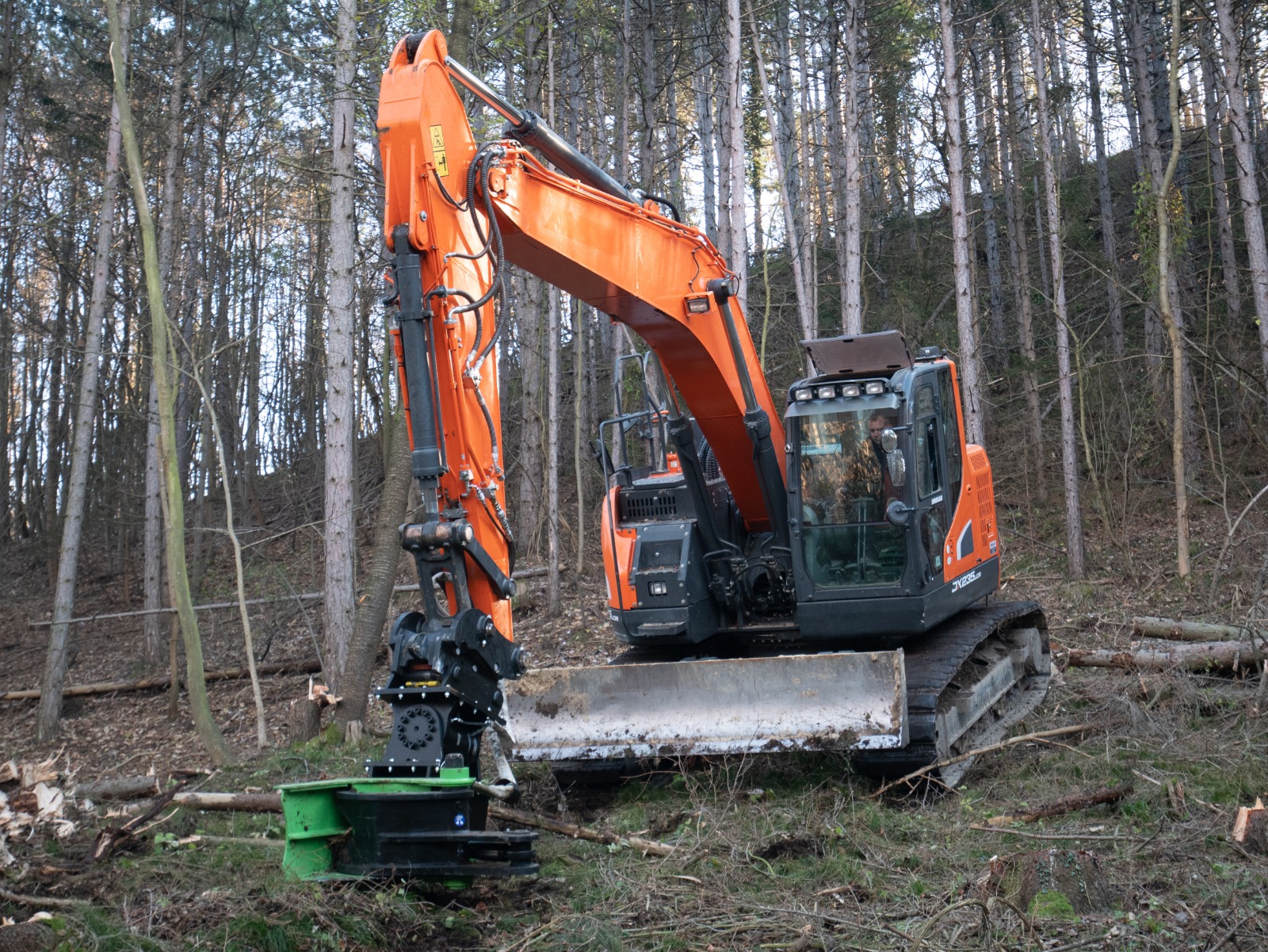

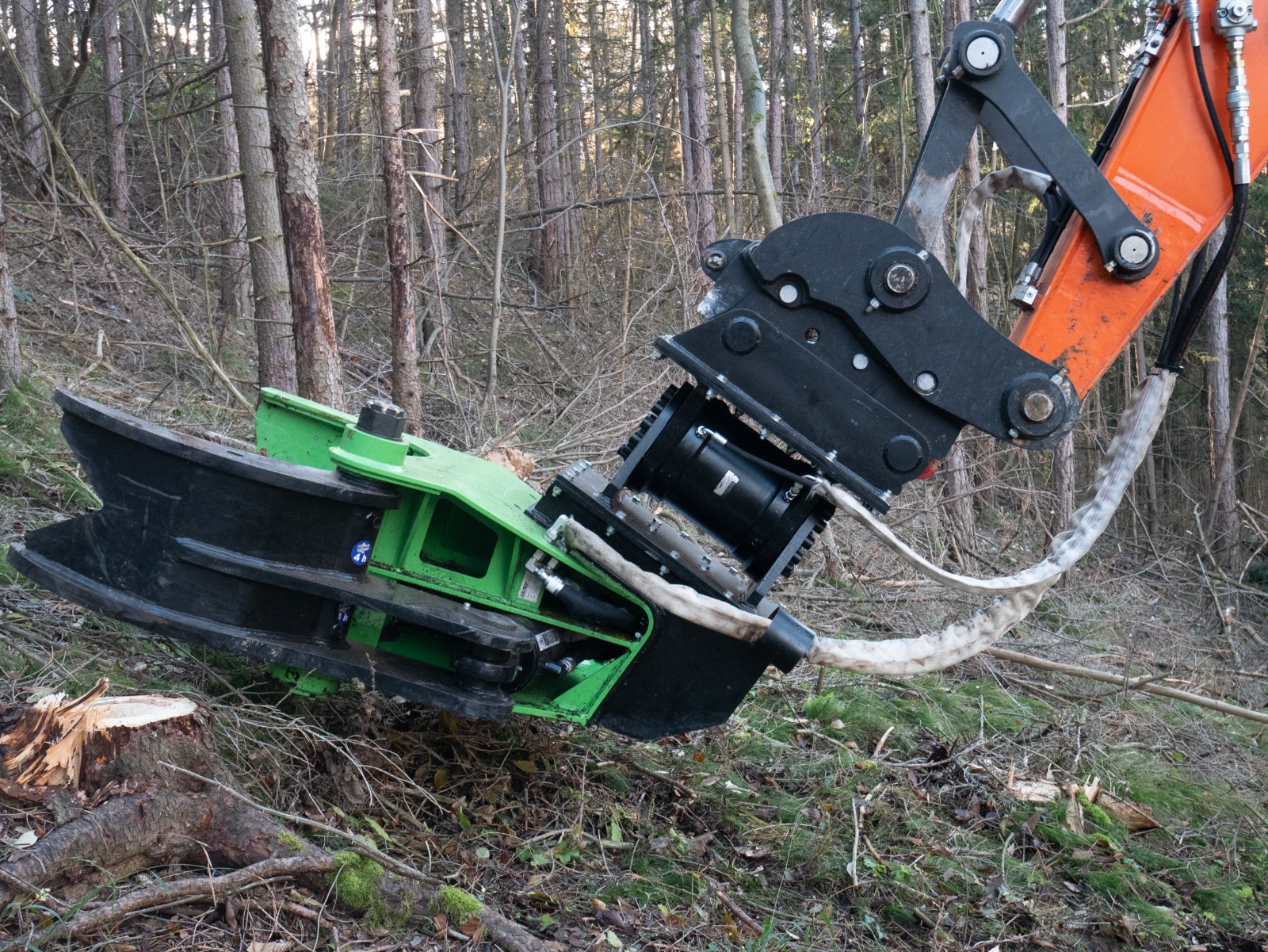

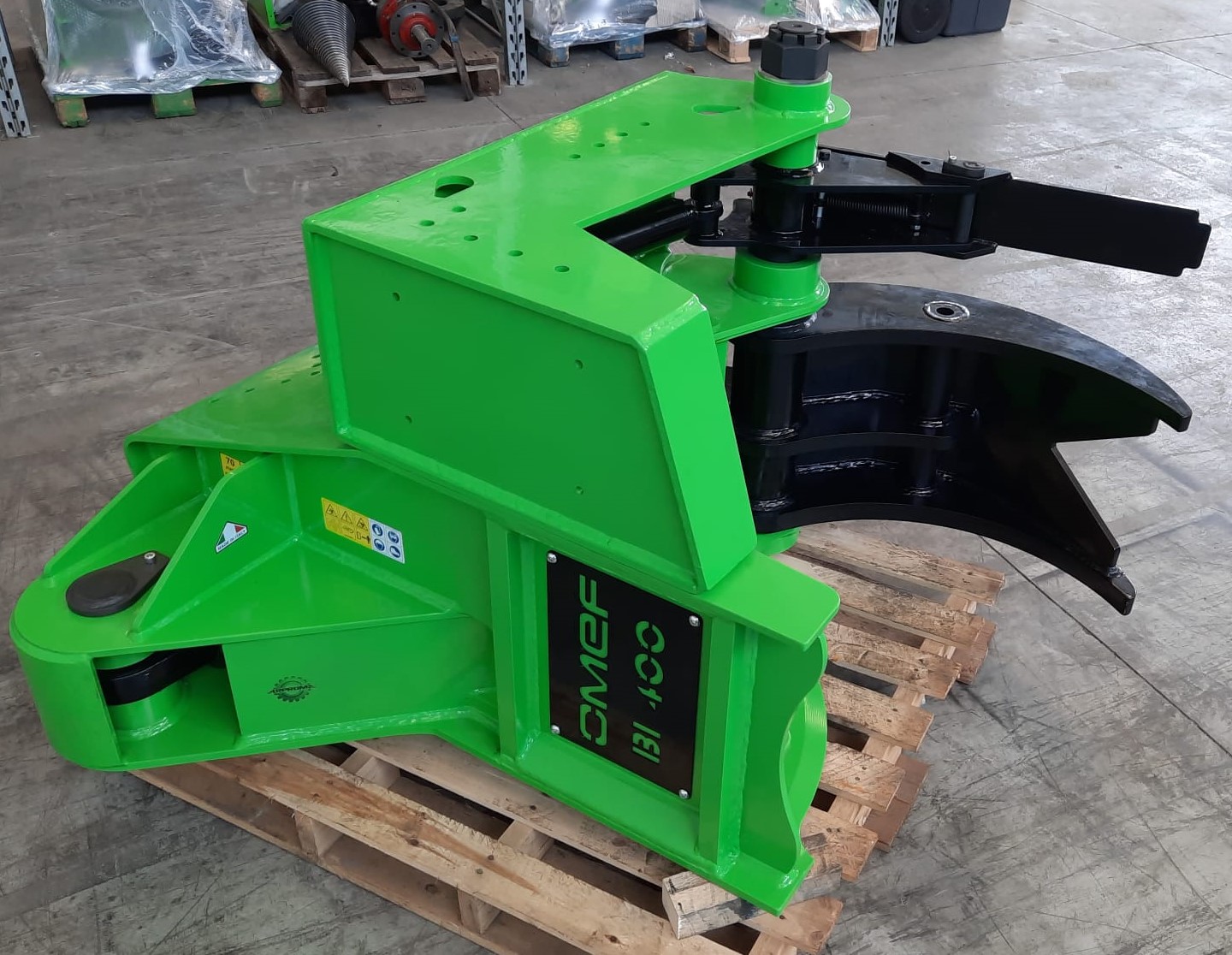

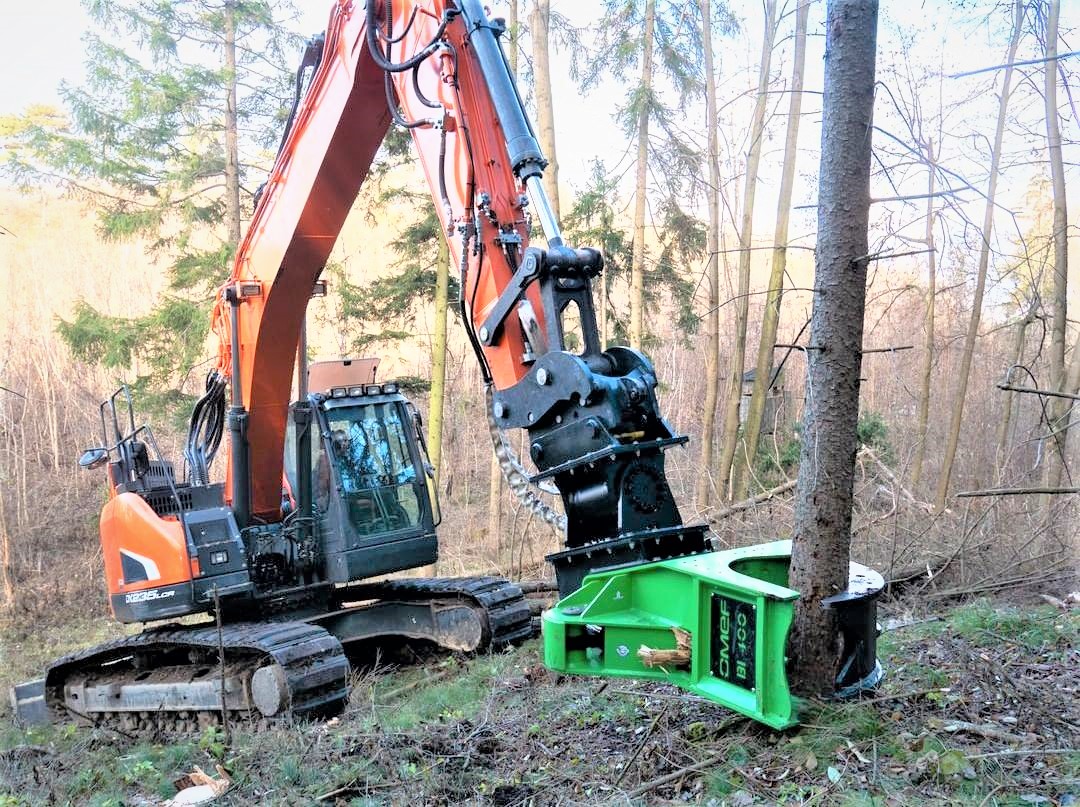

BI400 – BIG INCH
Slightly larger unit than the BI300, allowing a cutting capacity over 400 mm in diameter. The cylinder offers a 70 tonne force, working greatly with machines with an operating weight of 14 – 24 tonne.
Information Material :
Description
| Excavator class weight | 14 – 24 tons |
| Attachment weight | 1682 lbs / 845 Kg |
| Min trunk grip | 5″ / 120 mm |
| Max cut diameter | 400 mm / 450 mm 16″ / 18″ |
| Oil pressure | 250 – 350 bar (min-max) |
| Hydraulic flow | 80 – 150 l/min (min-max) |
| Width | 58″ / 1452 mm |
| Lenght | 60″ / 1500 mm |
| Height | 25″ / 654 mm |
