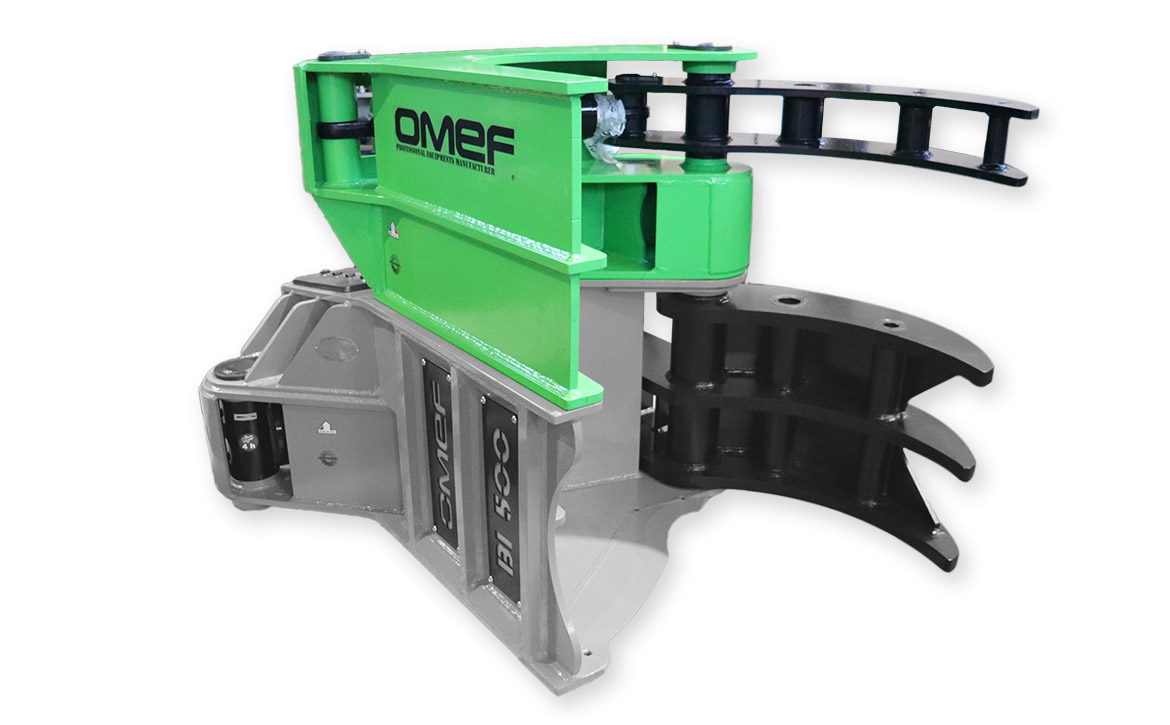

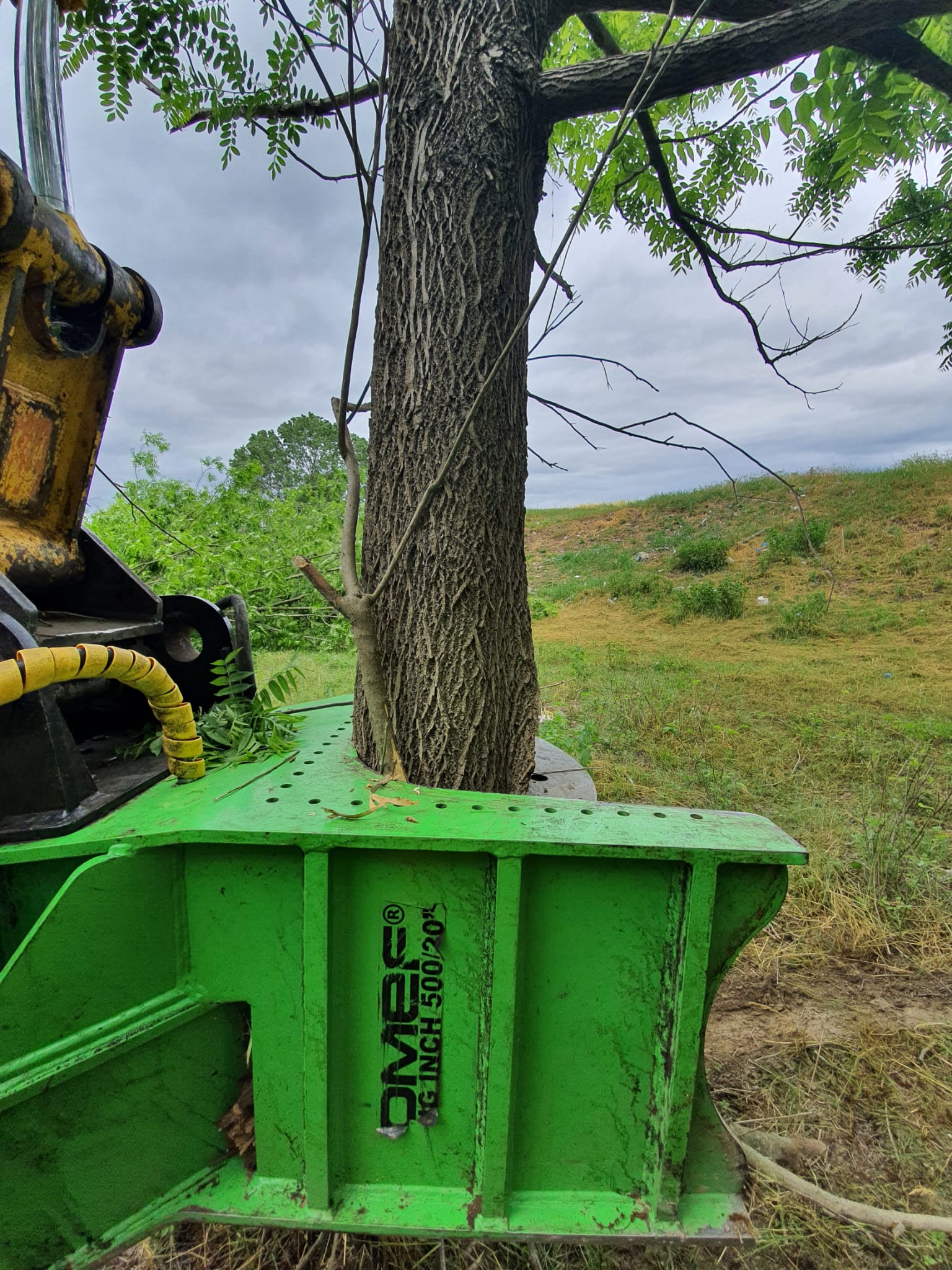

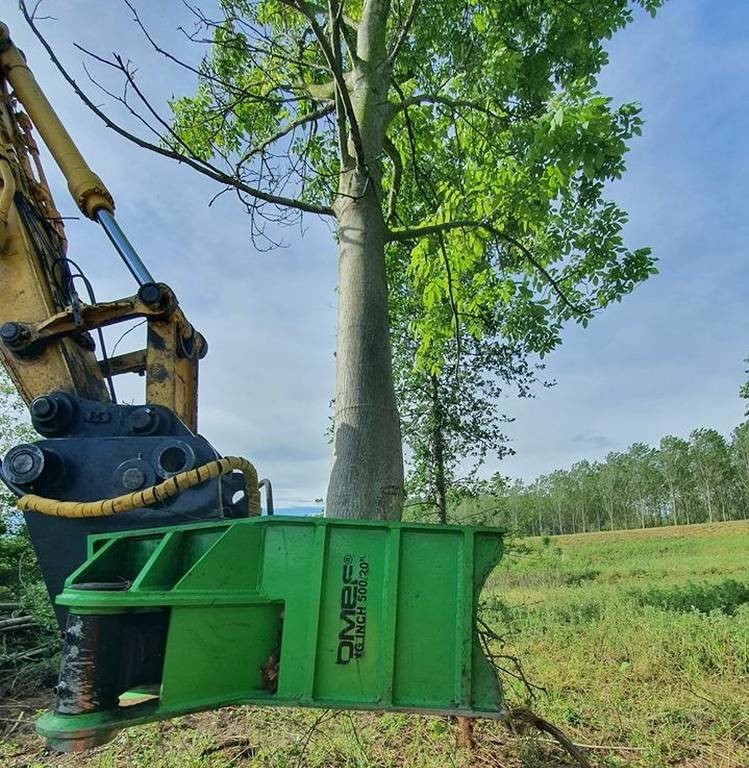

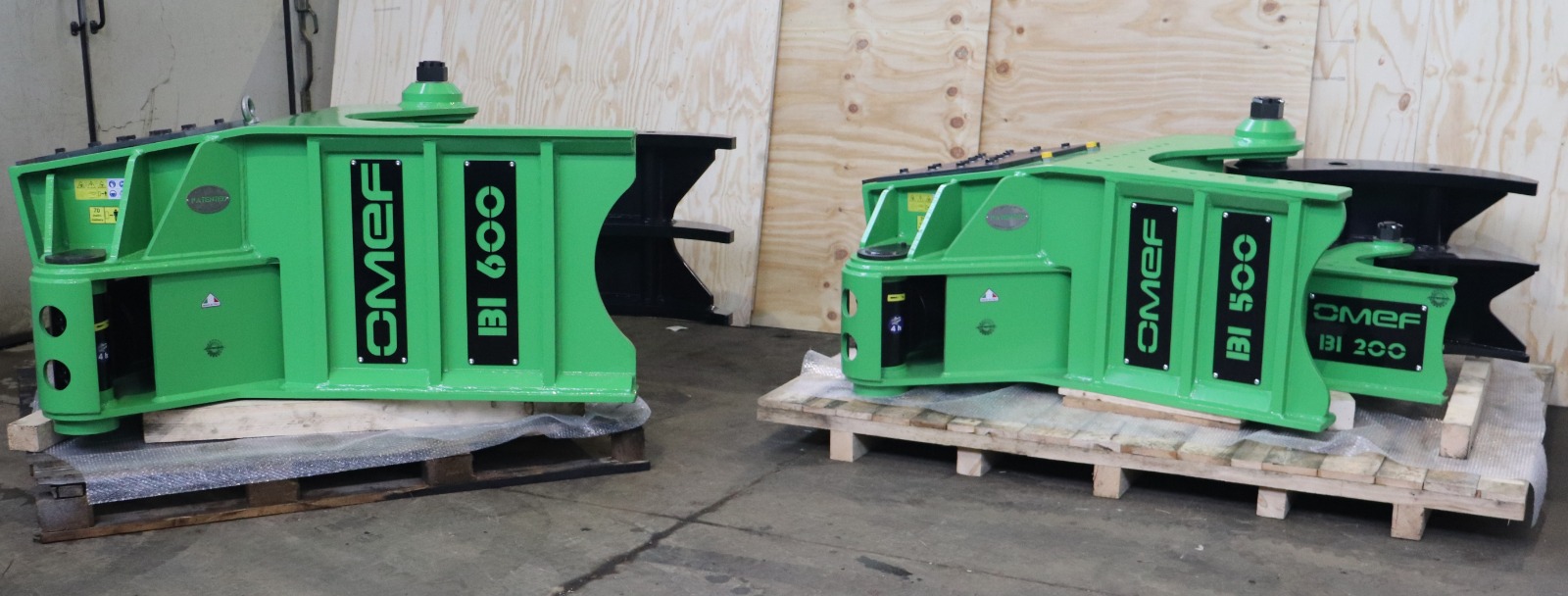

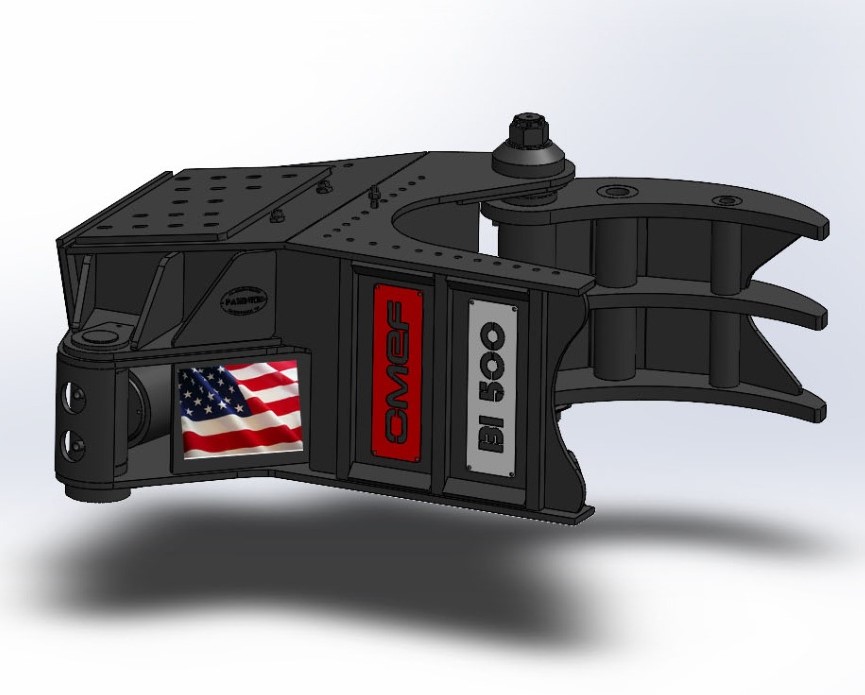

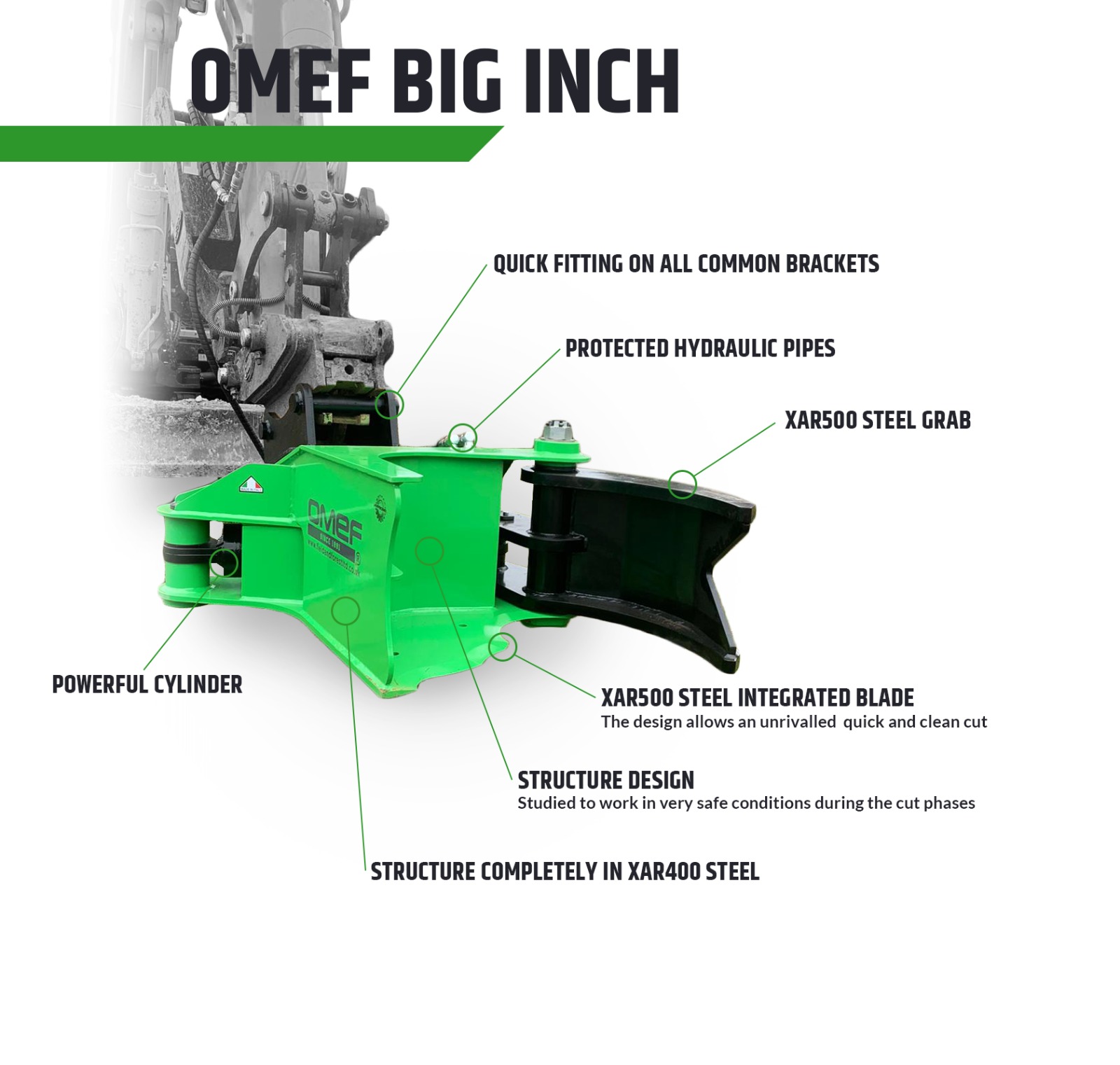

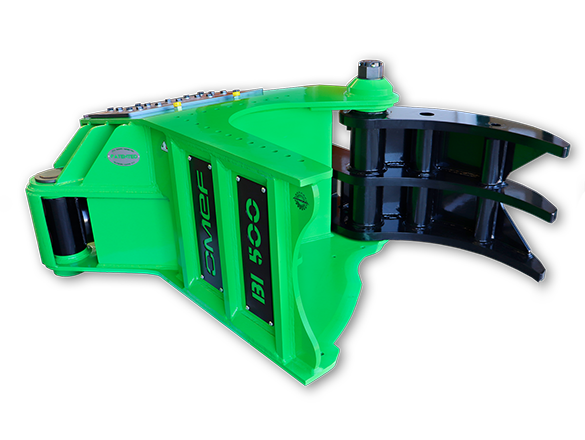

BI500 – BIG INCH

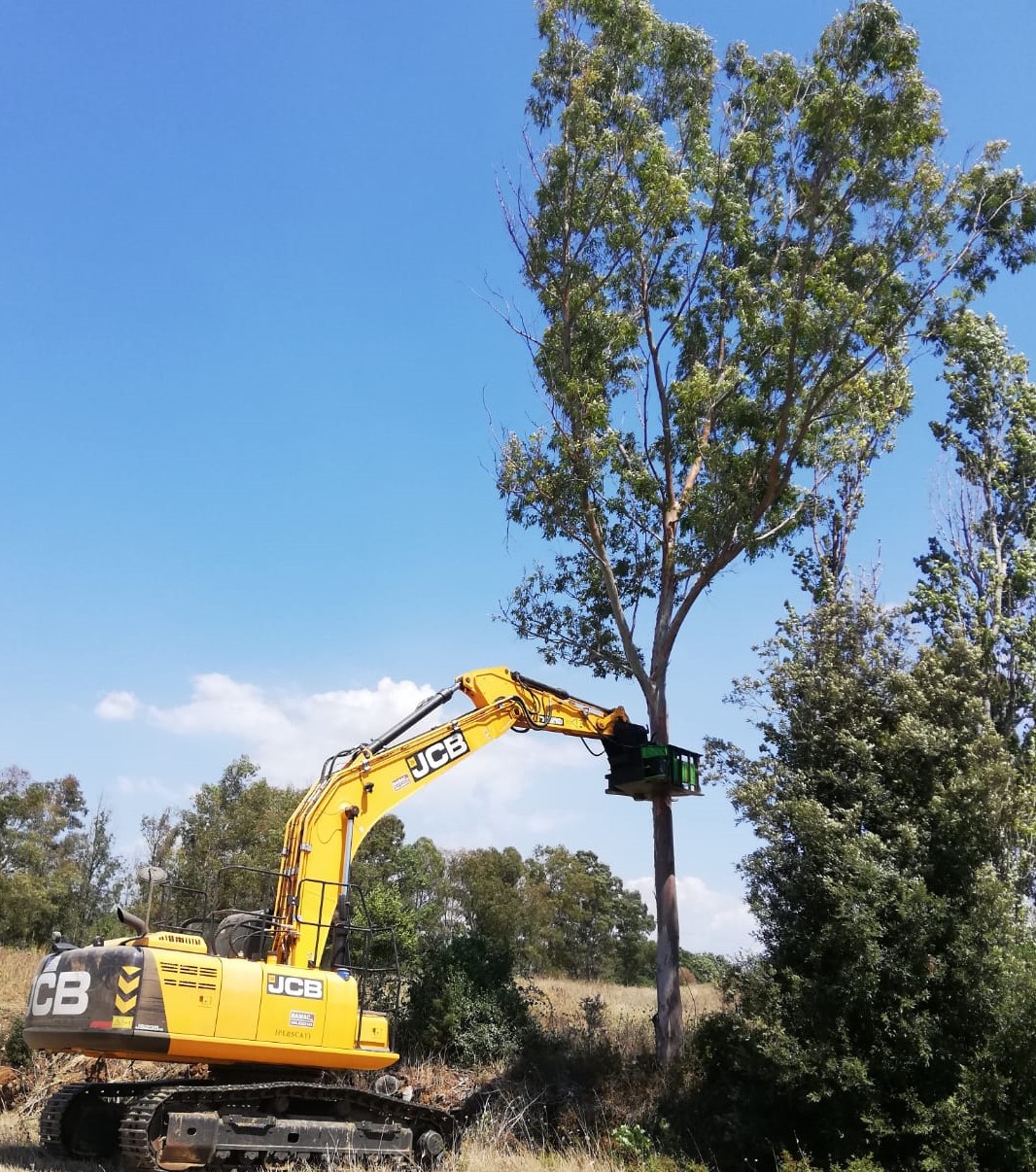

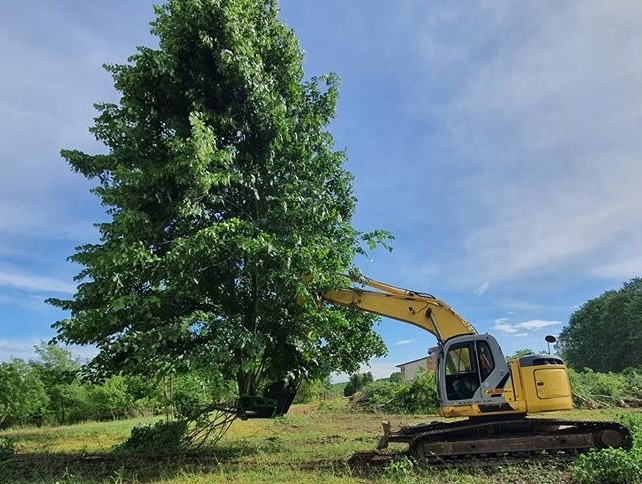

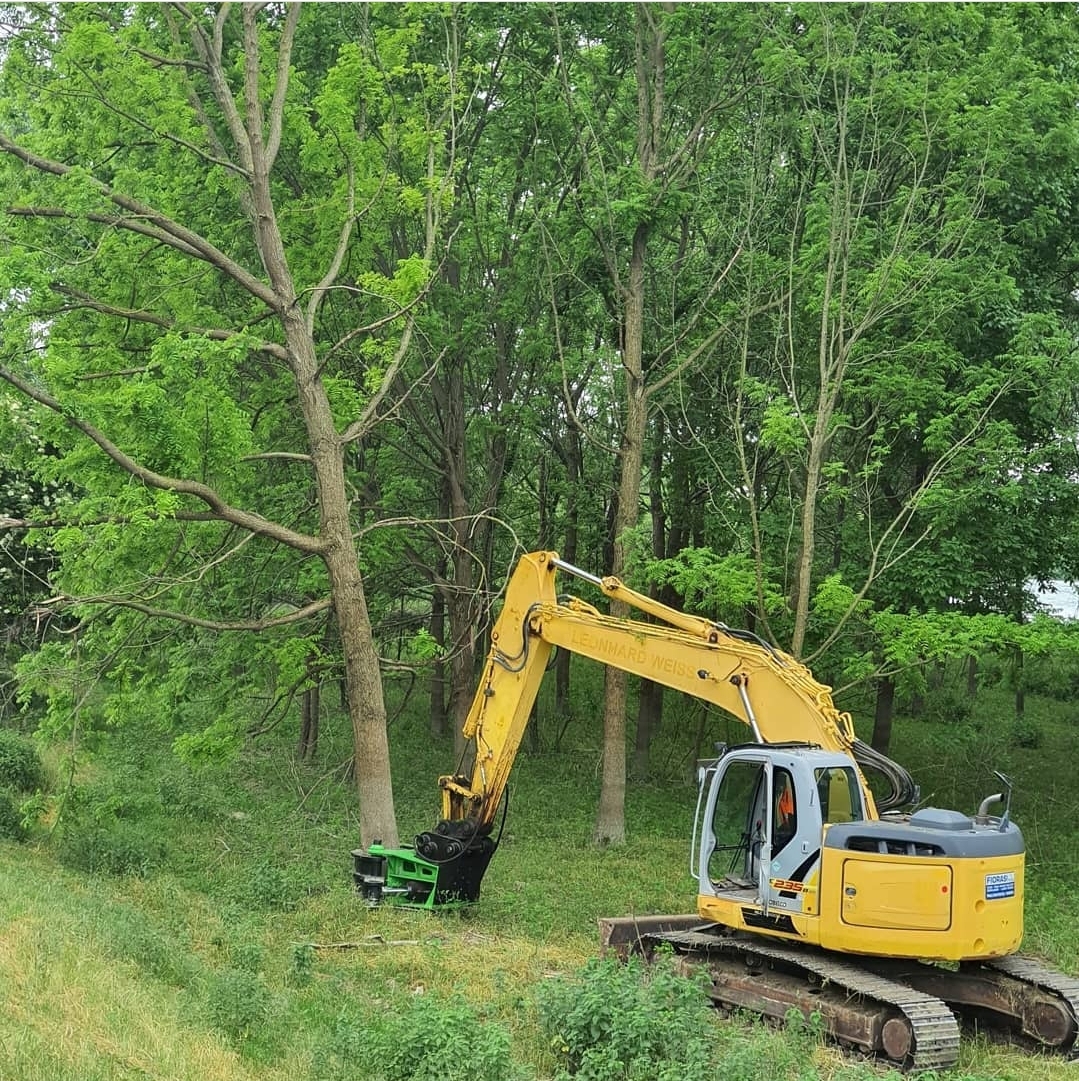

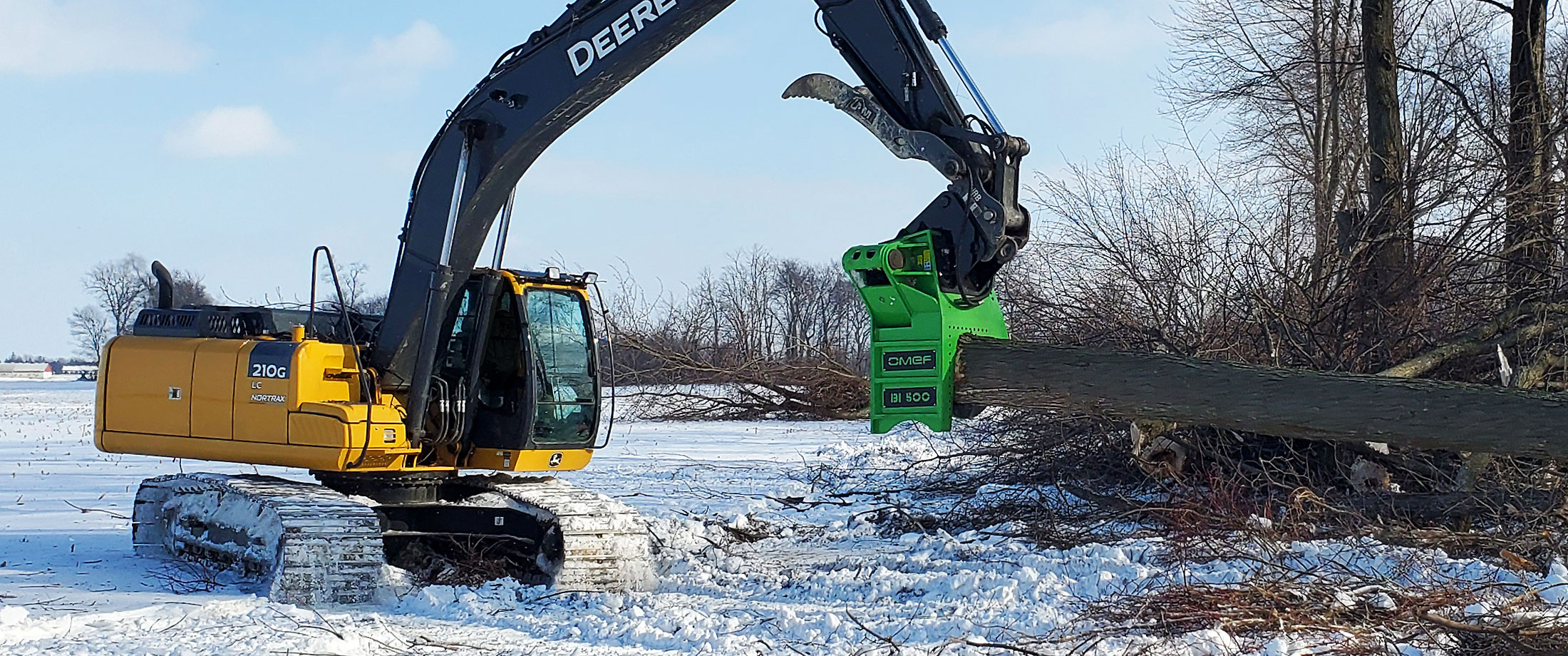

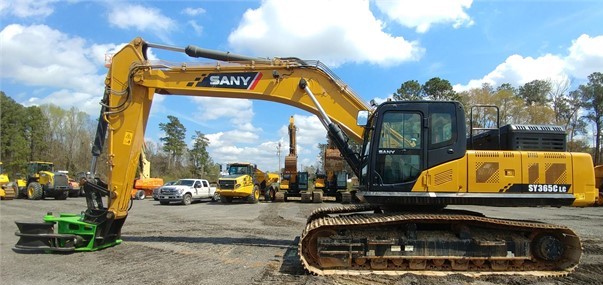

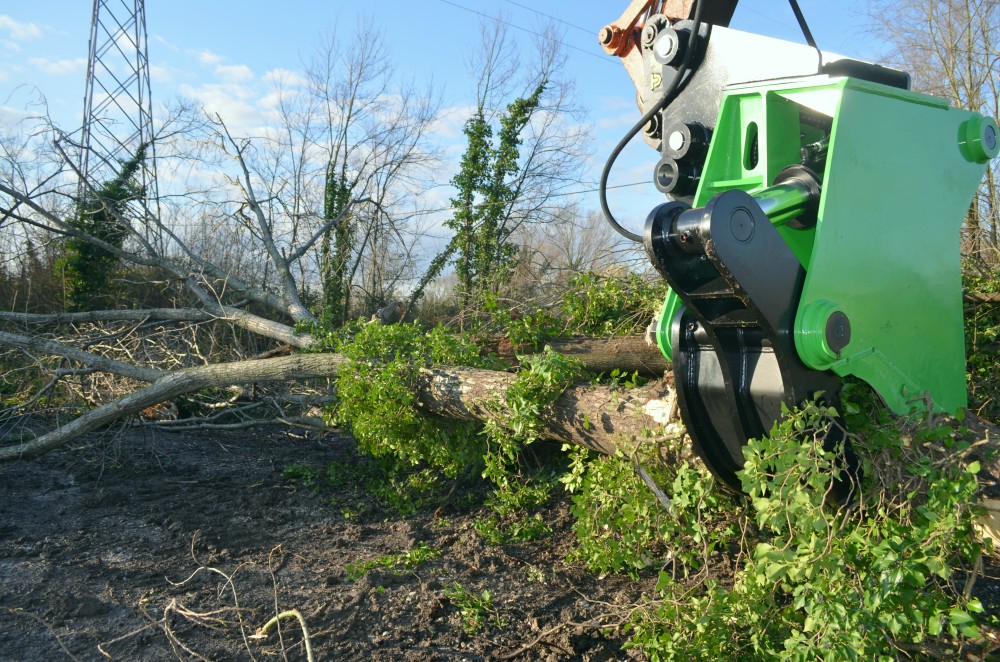

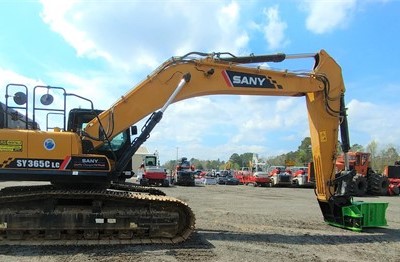

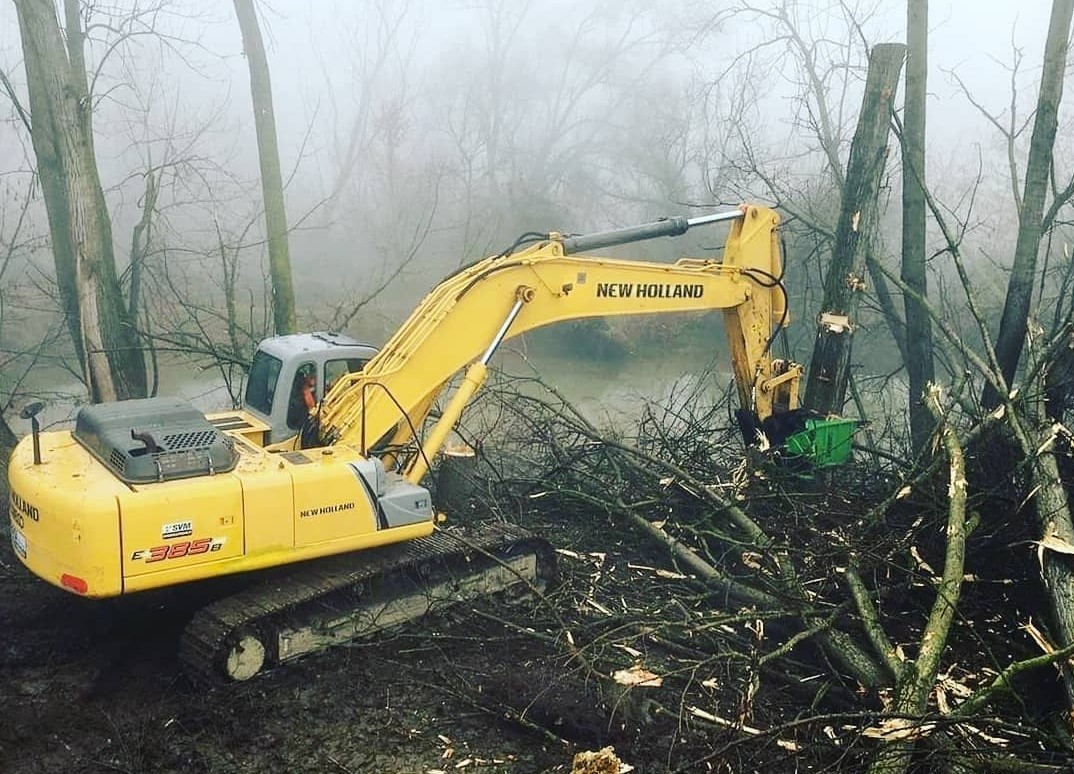

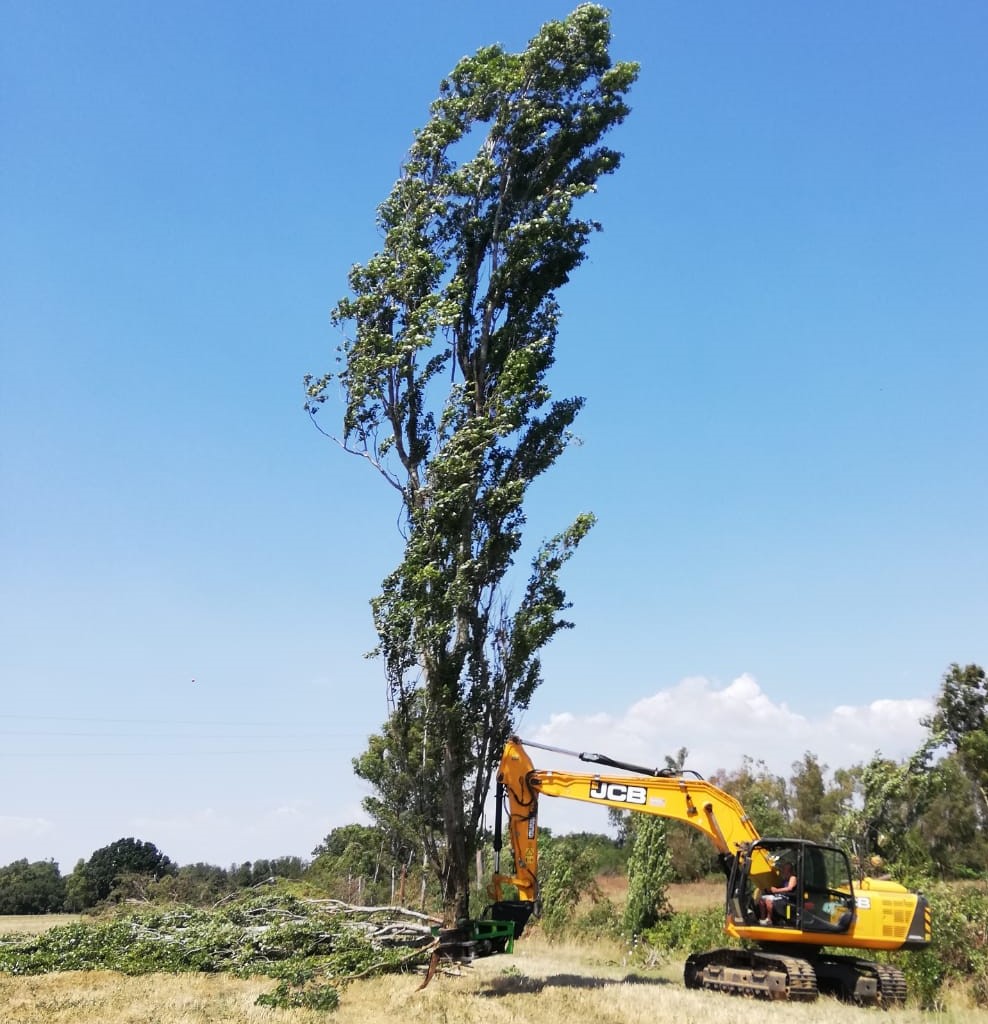

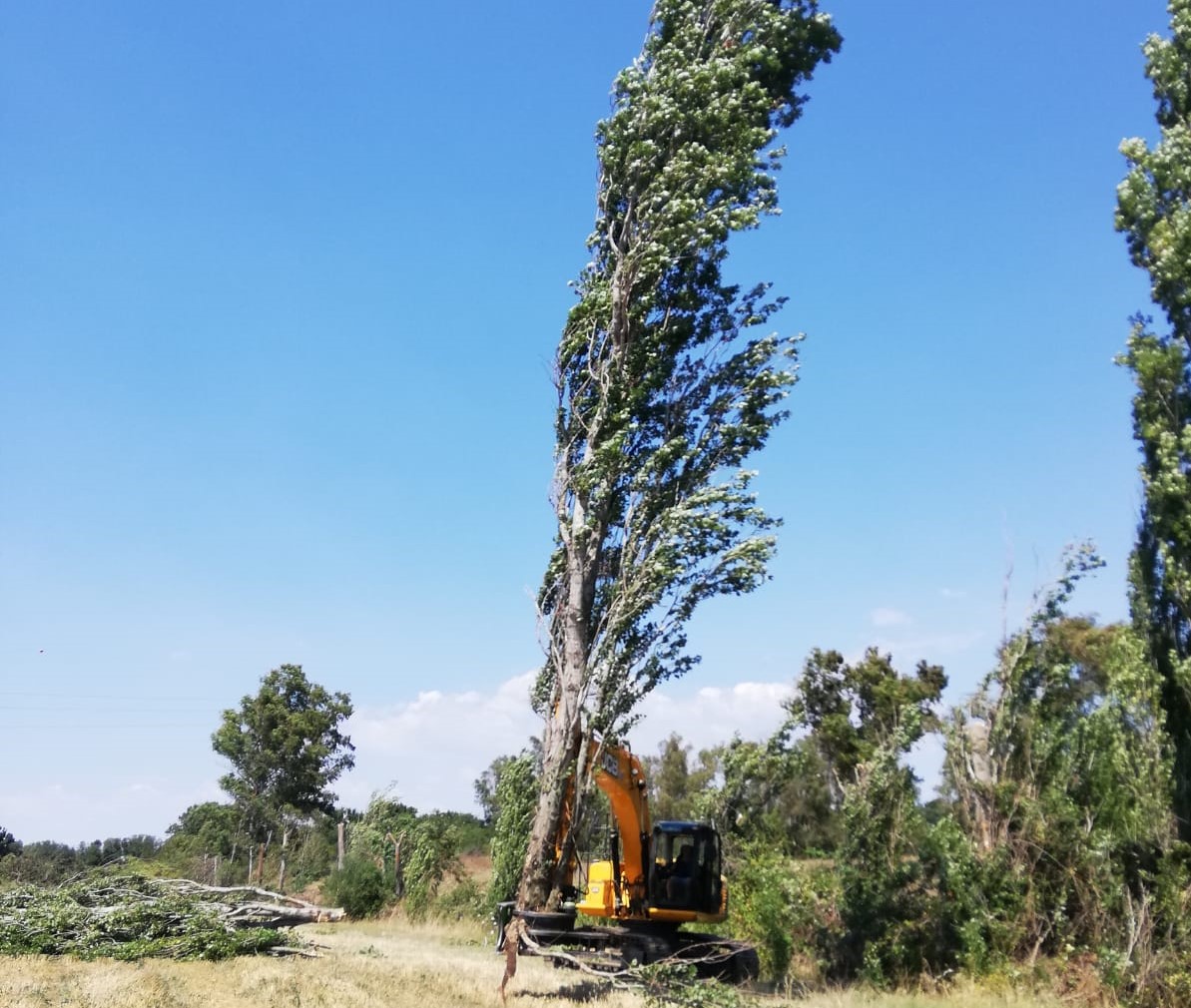

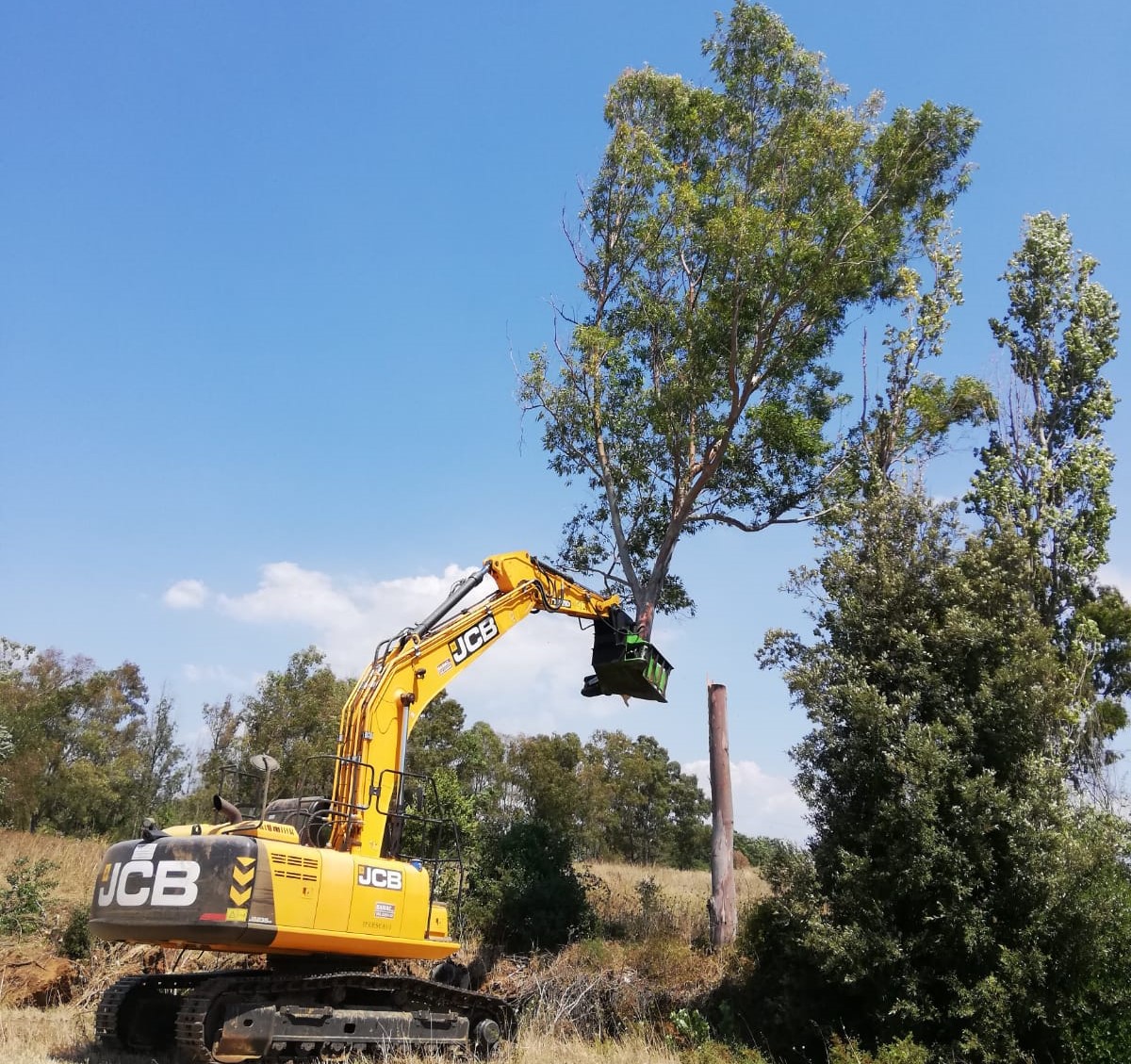

The recommended shear for those bigger projects. Created for excavators from 23 – 40 tonnes, allowing a clean cut for trees 600 m in diameter. This attachment has a 110 tonne cylinder of force to get through the roughest jobs.
Information Material :
Description
| Excavator class weight | 23 – 40 tons |
| Attachment weight | 1810 Kg / 3990 Lbs |
| Min trunk grip | 8″ / 200 mm |
| Max cut diameter | 500 mm / 600 mm 20″ / 24″ |
| Oil pressure | 300 – 350 bar (min-max) |
| Hydraulic flow | 125 – 180 l/min (min-max) |
| Width | 65″ / 1665 mm |
| Lenght | 77″ / 1940 mm |
| Height | 35″ / 890 mm |
