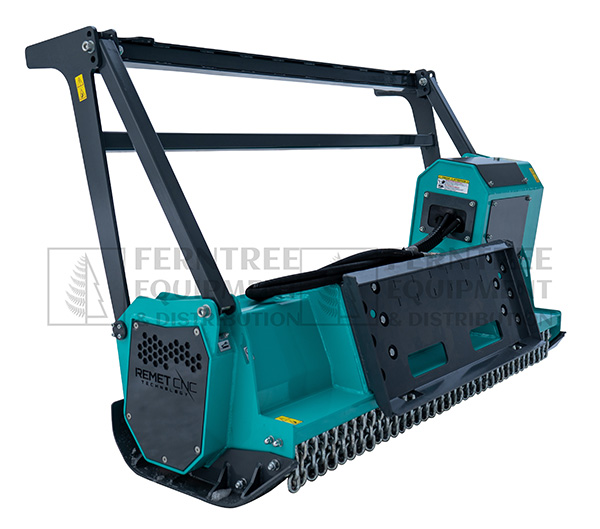

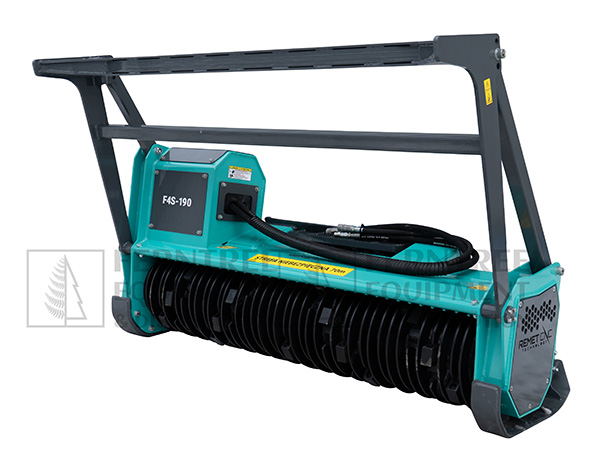

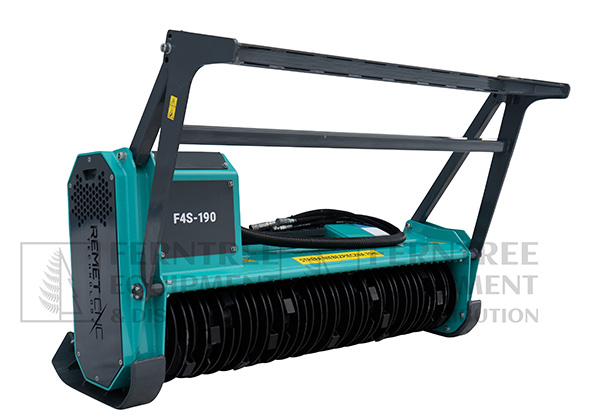

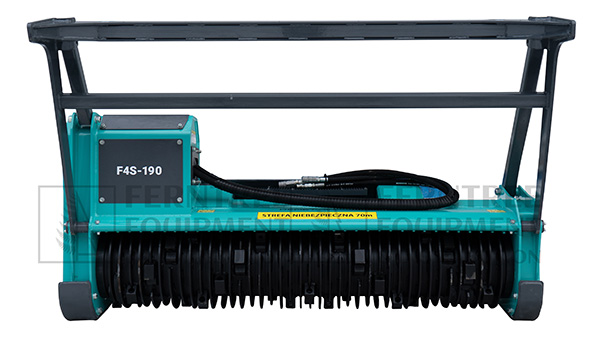

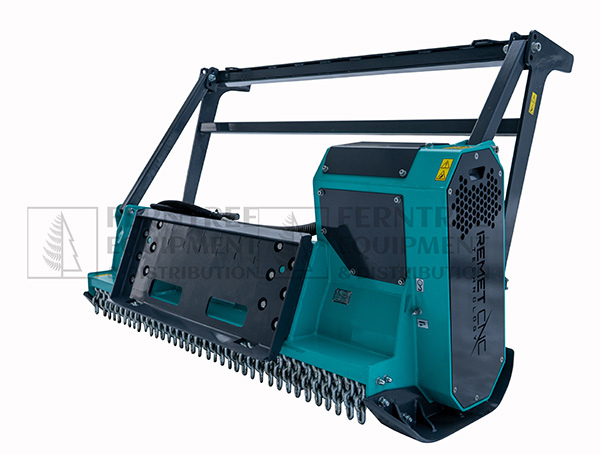

F4S-160 / 190 / 225 Skid Steer Mulcher
Description
Standard Equipment:

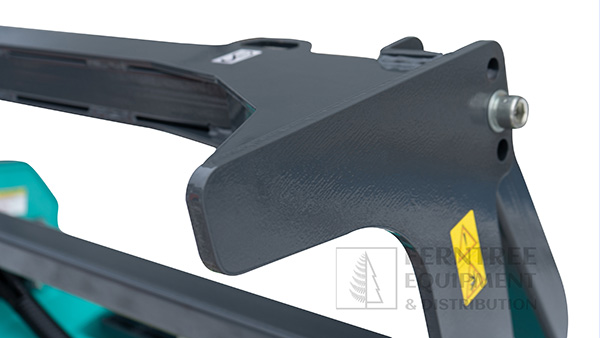

- Push frame with adjustment to 3 positions
- Replicable Skids
- Easy access lubrication points

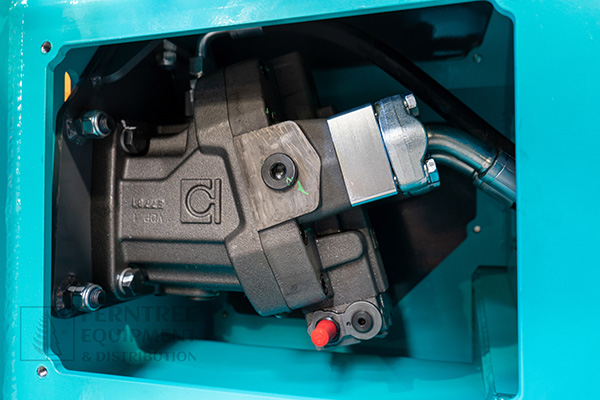

- High torque 120cc two speed / variable Displacement motor

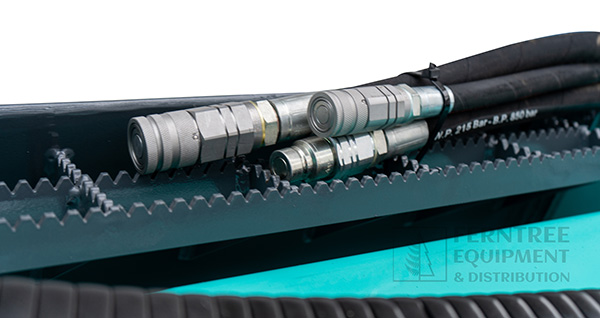

- Hydraulic hoses & Coupler
- Planer teeth from Factory
- Bite limiter Rotor

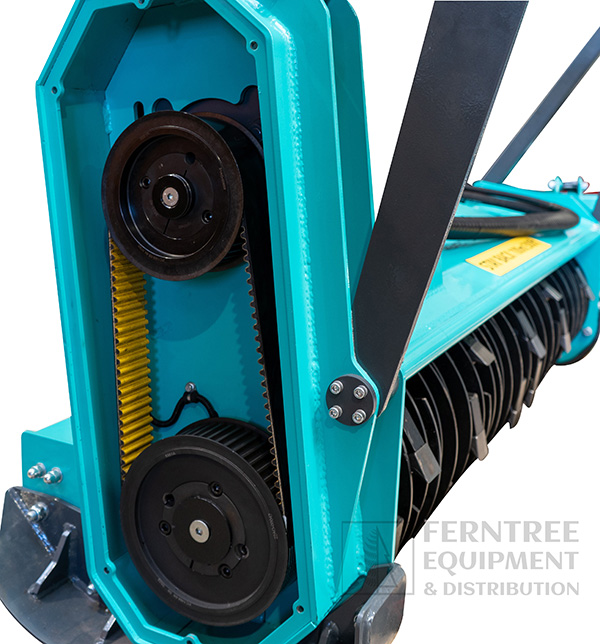

- Poly chain Drive belt

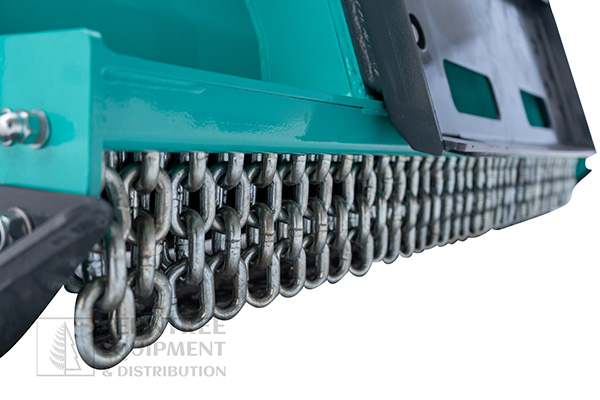

- Double row Rear Chain Guard
- Hardox / DOMEX Steel frame
Technical Data :
| Model | F4S-225 | F4S-190 | F4S-160 |
| Overall width: | 2570mm | 2320mm | 1860mm |
| Length: | 1190mm | 1190mm | 1190mm |
| Height: | 1370mm | 1370mm | 1370mm |
| Minimum power: | 80 hp | 70 hp | 65 hp |
| Maximum power: | 180 hp | 180 hp | 180 hp |
| Shredding diameter | Up to 250mm | Up to 250mm | Up to 250mm |
| Recommended oil flow: LPM
Recommended oil flow: Gpm |
100-220 l/min
26 – 58 gpm |
80-220 l/min
21 – 58 gpm |
80-220 l/min
21 – 58 gpm |
| Recommended oil pressure: | 200-350 bars | 200-350 bars | 200-350 bars |
| Rotor working width: | 2250mm | 1900mm | 1600mm |
| rotor weight: | 660 kg | 560 kg | 480 kg |
| Rotor Diameter: | 440mm | 440mm | 440mm |
| Number of grinding teeth: | 48 pcs. | 40 pcs. | 32 pcs. |
|
tooth type: |
Carbide or Planer Tooth option Single or double
sided |
Carbide or Planer Tooth option
Single or double sided |
Carbide or Planer Tooth option
Single or double sided |
| Tooth holder type: | One Bolt M18x70 x1.5 | One Bolt M18x70 x1.5 | One Bolt M18x70 x1.5 |
| Total weight: | 1450 kg
3207 lbs |
1280 kg
2831 lbs |
1180 kg
2610 lbs |
