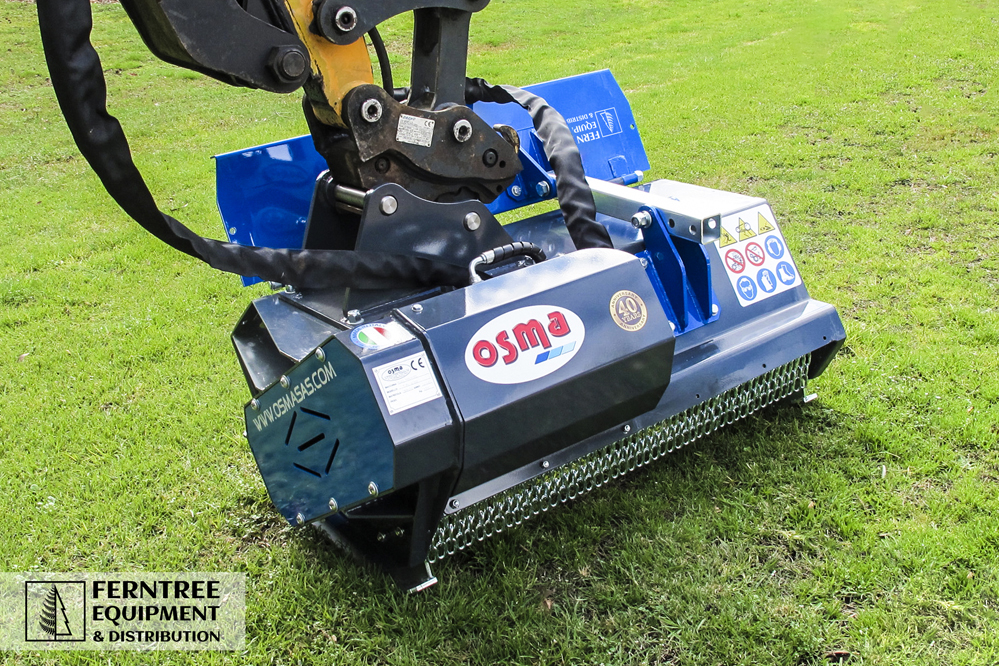

OSMA EXH 100 (HEAVY DUTY)

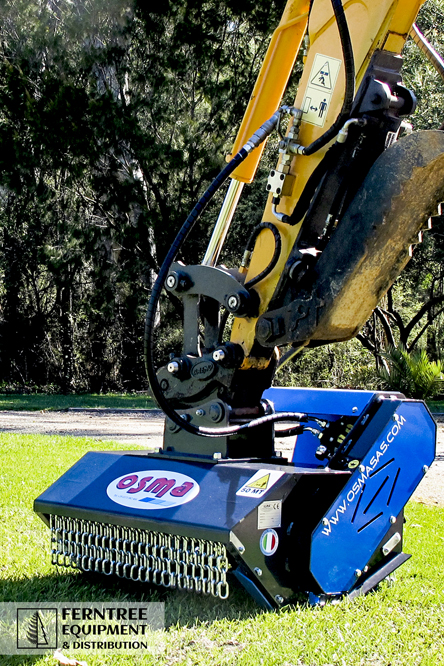

EXH flail mulcher is designed for 5.5-10 tonn excavators to cut dense vegetation and standing material up to 4inches. The EXH has been introduced to the North American market for customers that want to accomplish land clearing and vegetation removal without the need of a fixed tool rotor.
Description
STANDARD EQUIPMENT:
- Mechanical front door – no option for hydraulic cylinder

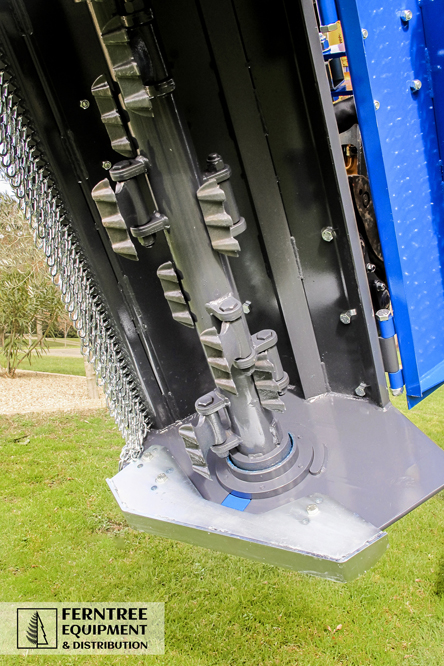

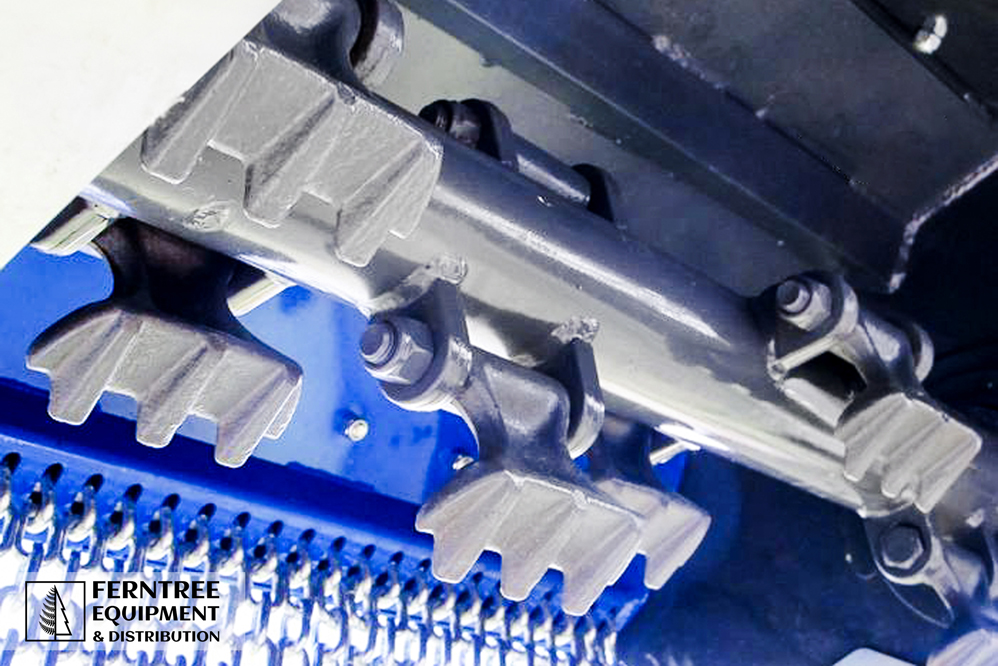

- Tooth hammer 4.1lbs (8 hammers)

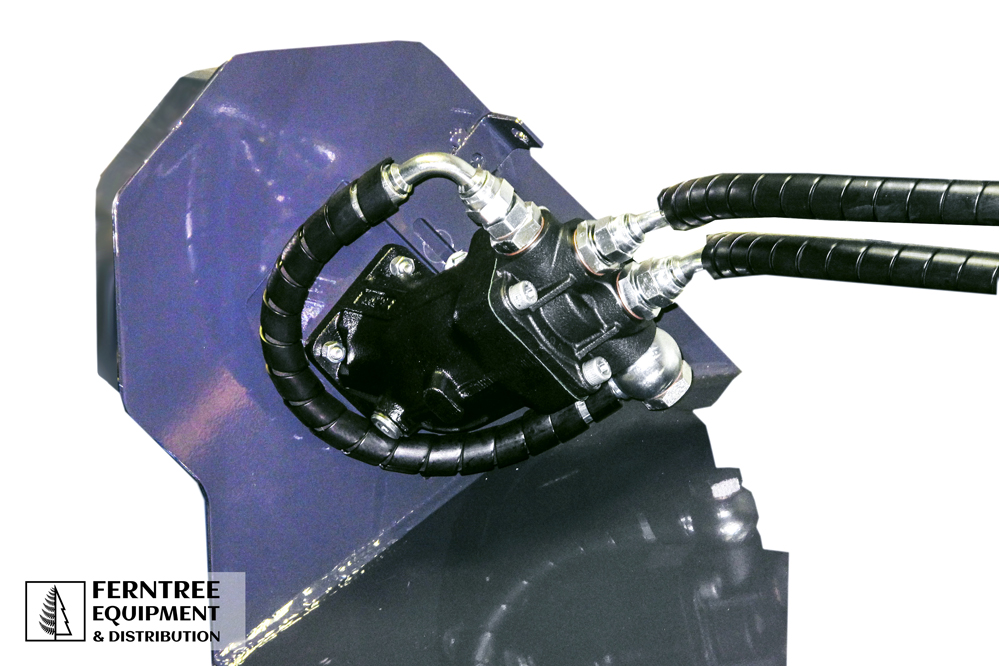

- Belt transmission with 25cc fixed piston motor

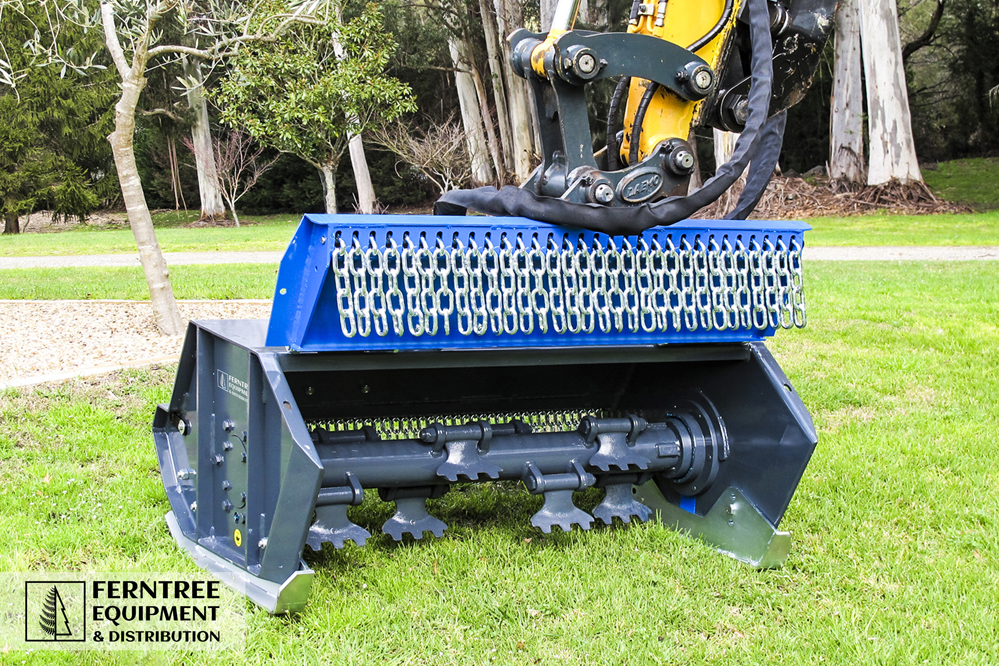

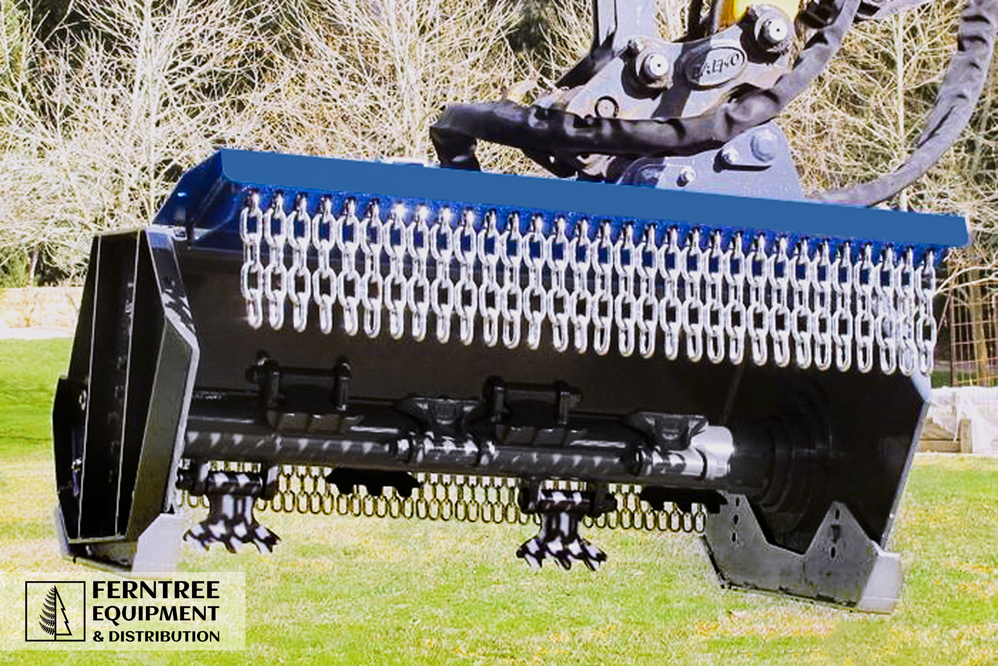

- Front and rear chain guard
- Adjustable skids
- OSMA 3F multi-function valve (by-pass, anti-shock, oil flow divider)
OPTIONS:
- 34cc fixed piston motor
- For higher torque and bitter machines (13-19gpm)
- Smooth hammers instead of tooth hammers
Technical details – EXH
Working width 100cm/ 40inches
Outer width 110cm/ 43 inches
Weight – 340kg / 753lbs
Oil flow min- 11gpm max 14gpm
Number of tools – 8
Cut size – 3 -4 inches

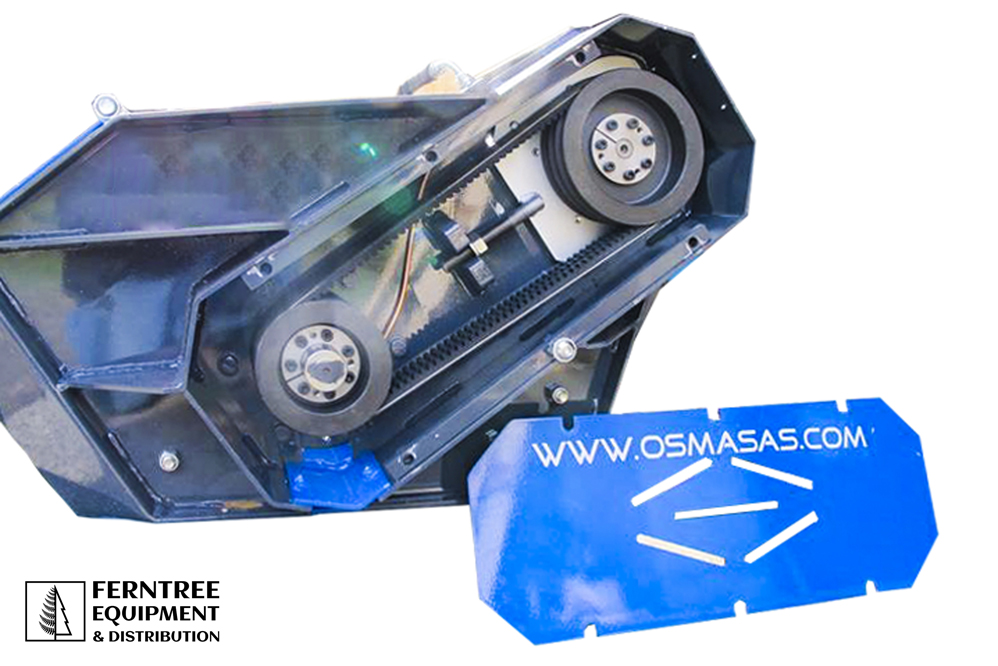

Belt Transmission
| EXH 100 | |
| Working Width | 39 |
| Total Width | 43 |
| Lbs | 749 |
| Piston Motor | 25cc |
| Flow Rate L/Min | 45-55 |
| Bar (Pressure) | 200-220 |
| Rotor | Swinging |
| Tool Type – BRV 002 | 1.7 kg |
| Tools | 8 |
| Anti-cavitation Valve | y |
| Flow valve regulator | option |
| Belts | 2 |
| Hoses | 3 |
| Front Door | y |
| Front & Rear Chains | y |
| Adjustable Skids | y |
| Max Shredding | 85+ |
| Counter Blades | y |
| Hitch | flat pack |
