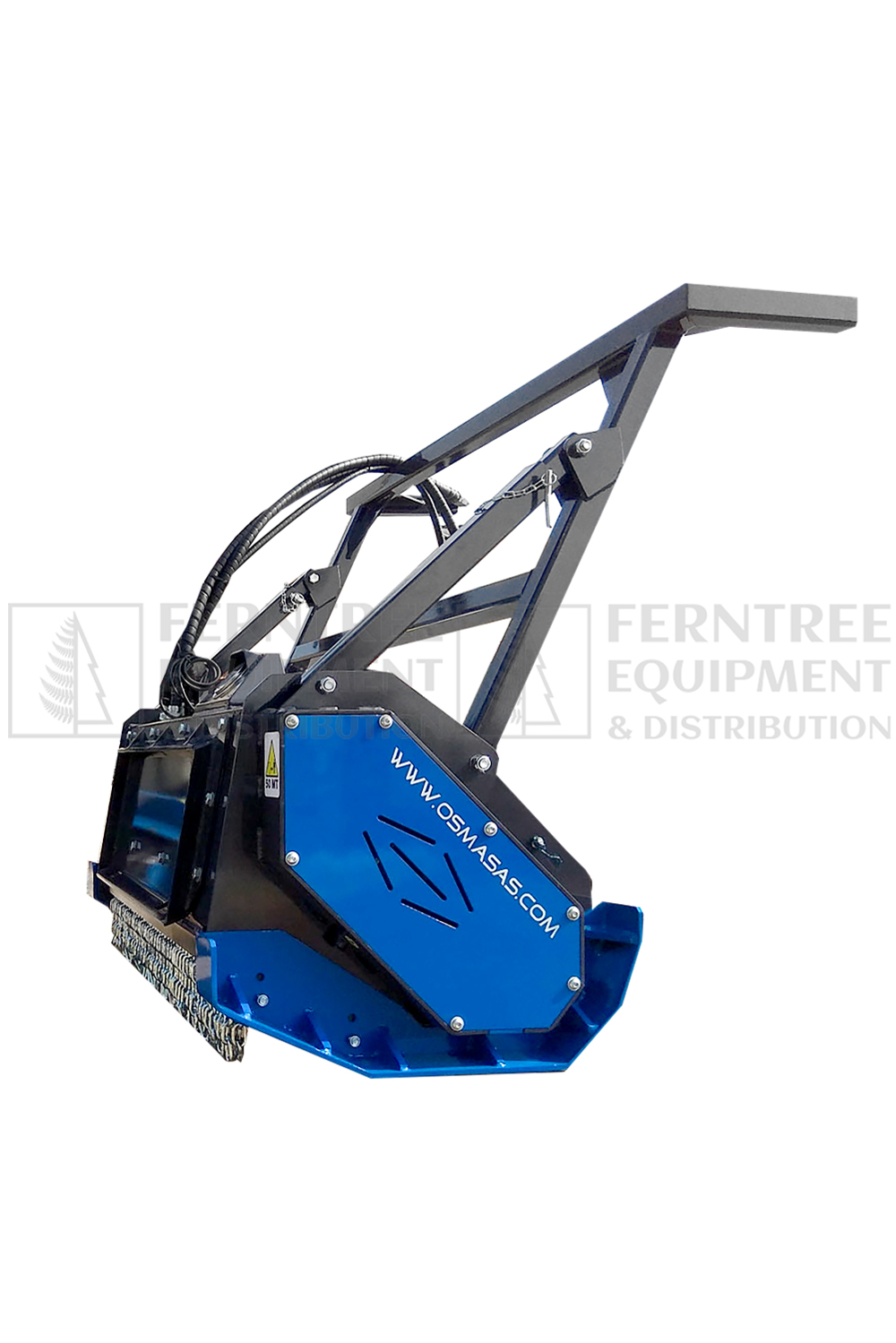

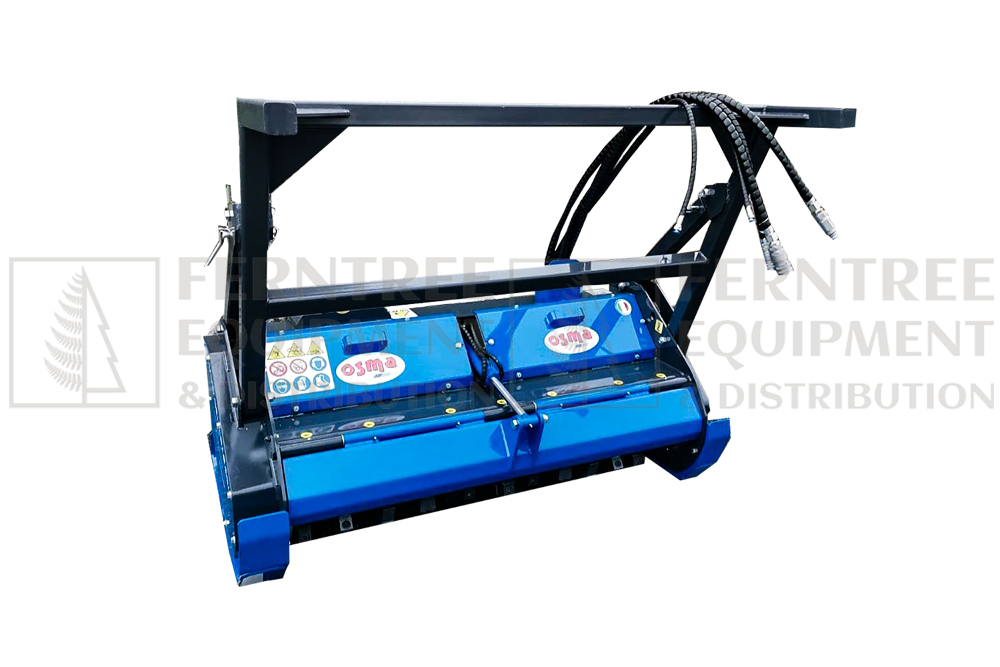

OSMA SSQ Series

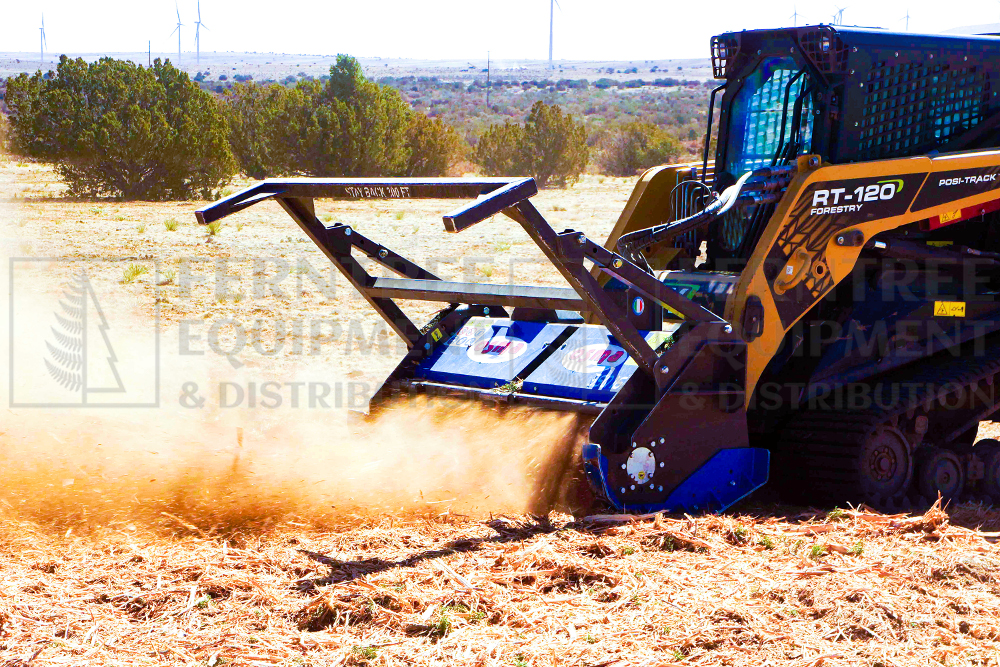

Our SSQ Series is ideal for 75-130hp skid steers. A mulcher that comes available in a low and high flow to meet your machines specifications. The SSQ is available with 45cc, 65cc, and 85cc fixed piston motor, or for the professional user, the SSQ can be fitted with the Bosch Rexroth  variable displacement motor.

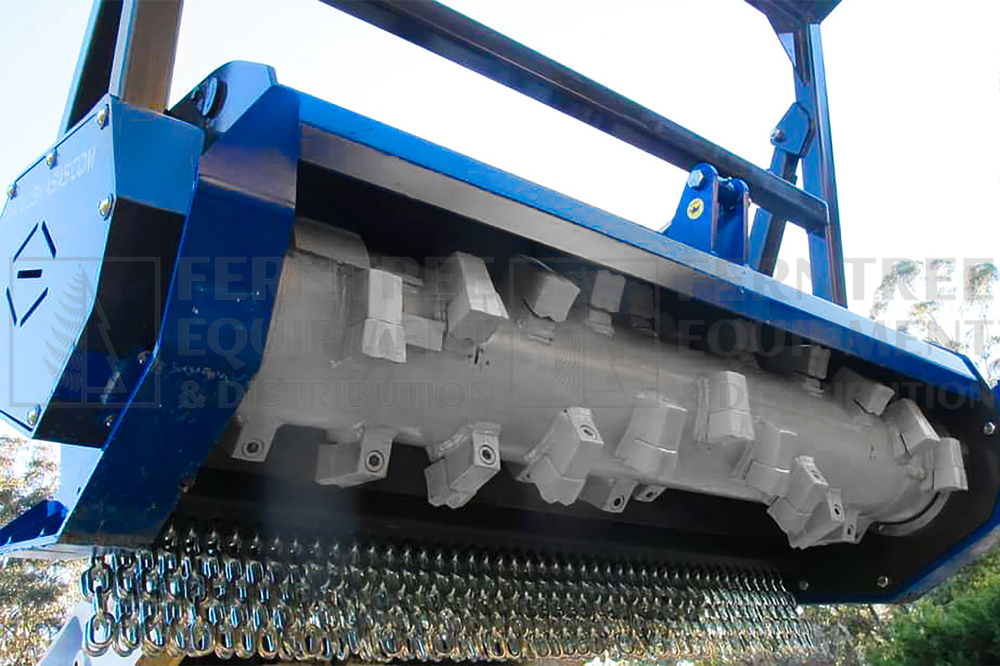

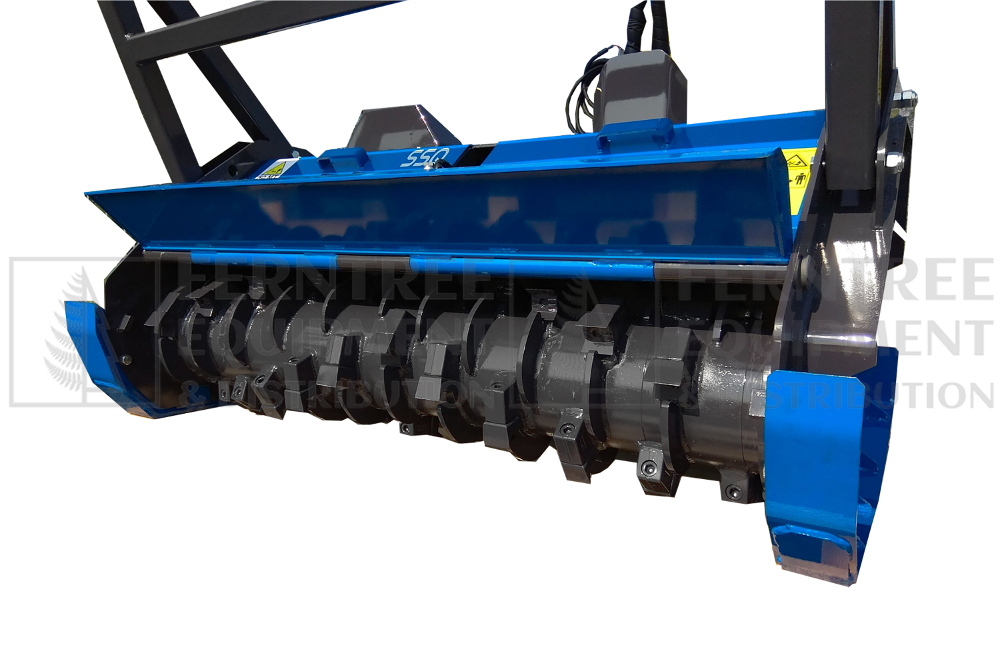

SSQ rotor comes with a multi-tool mount, which provides you the choice to select between a carbide tooth or a chipping tooth.

Download Brochure

Enquiry Now

Categories: , , ,

Description

Applications

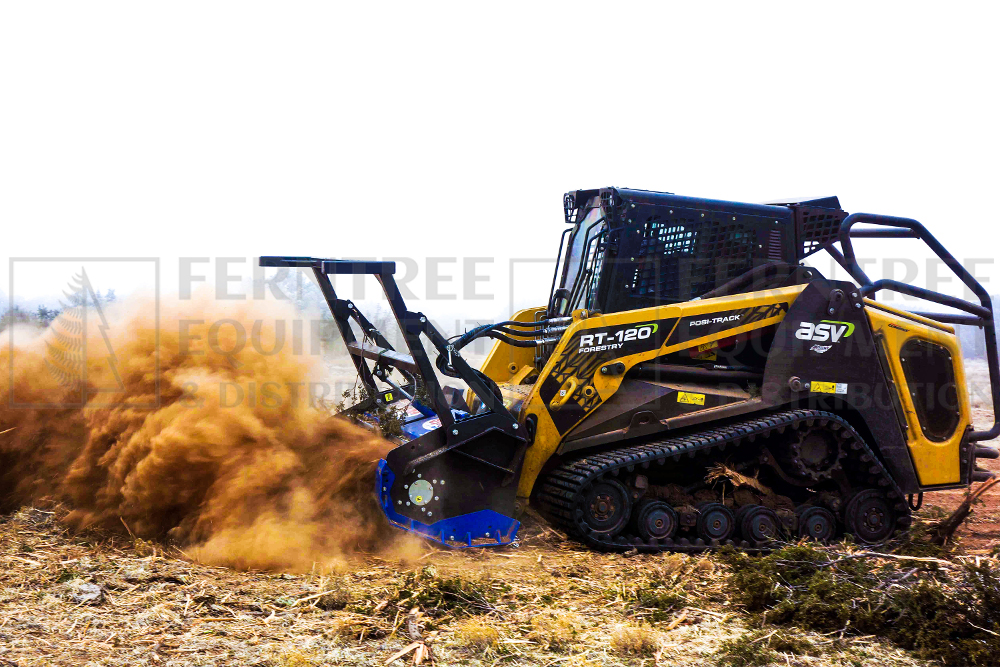

  • Vegetation management
  • Land clearing
  • Fence line clearing
  • Landscape maintenance



Standard Equipment

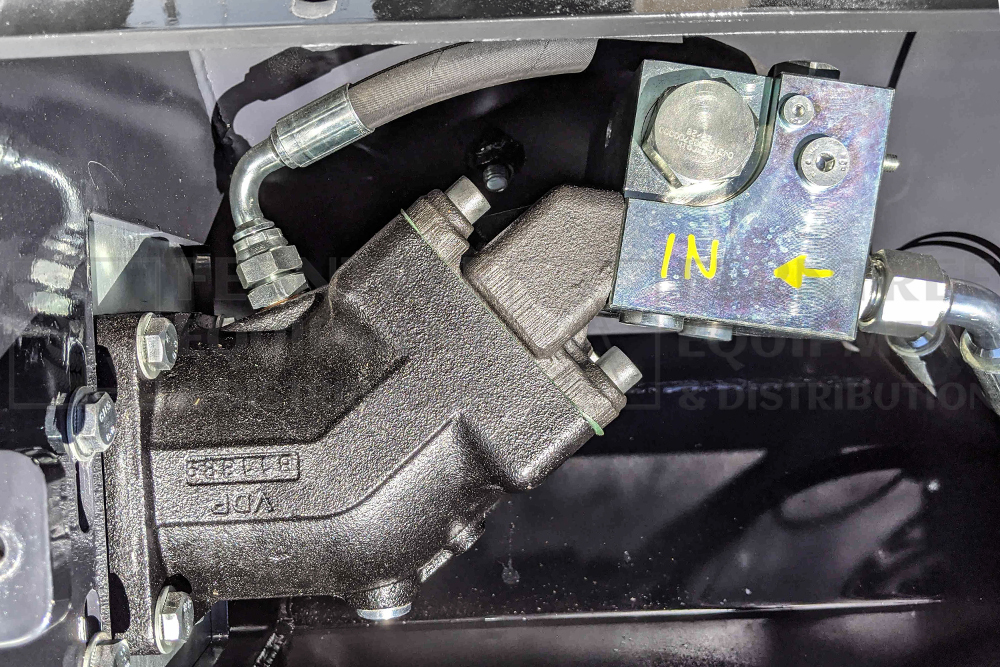

  • 65cc fixed piston motor
  • 28 – 34gpm

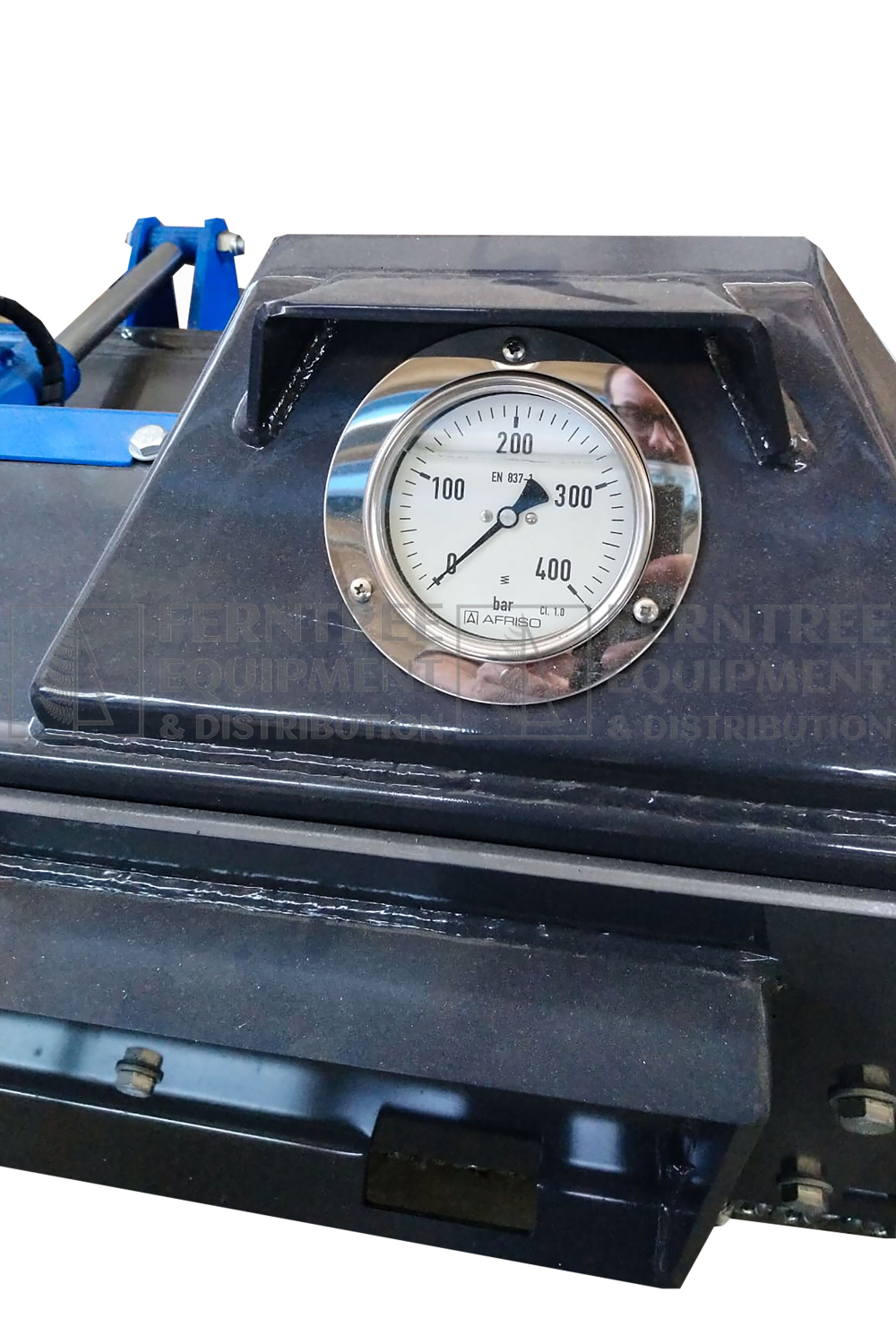

  • Flow and pressure gauge

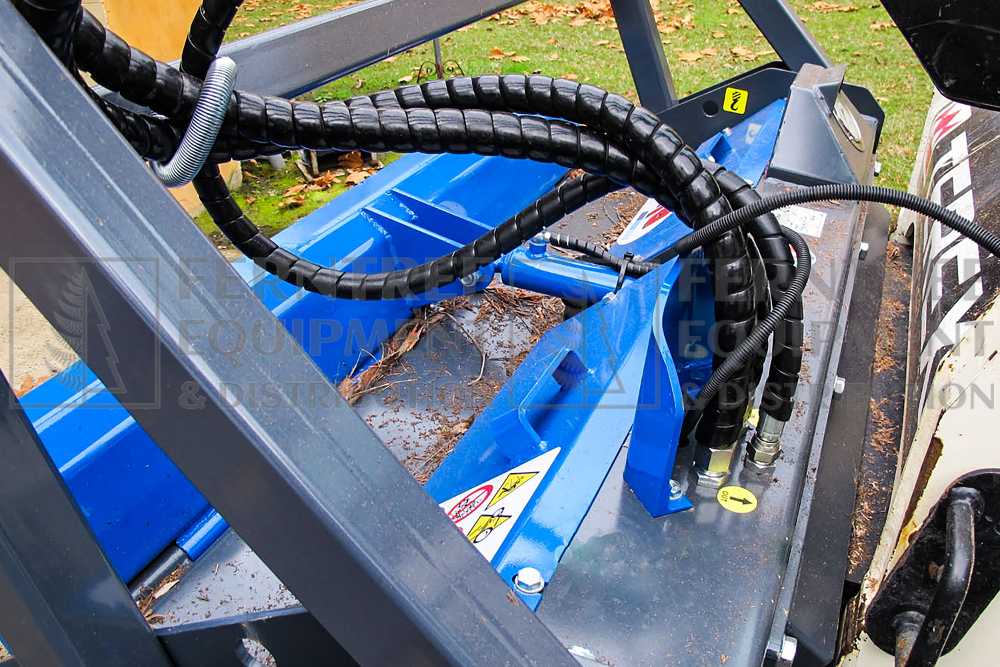

  • Hydraulic hoses and couplings
  • Teeth configuration of your choice
  • Push bar

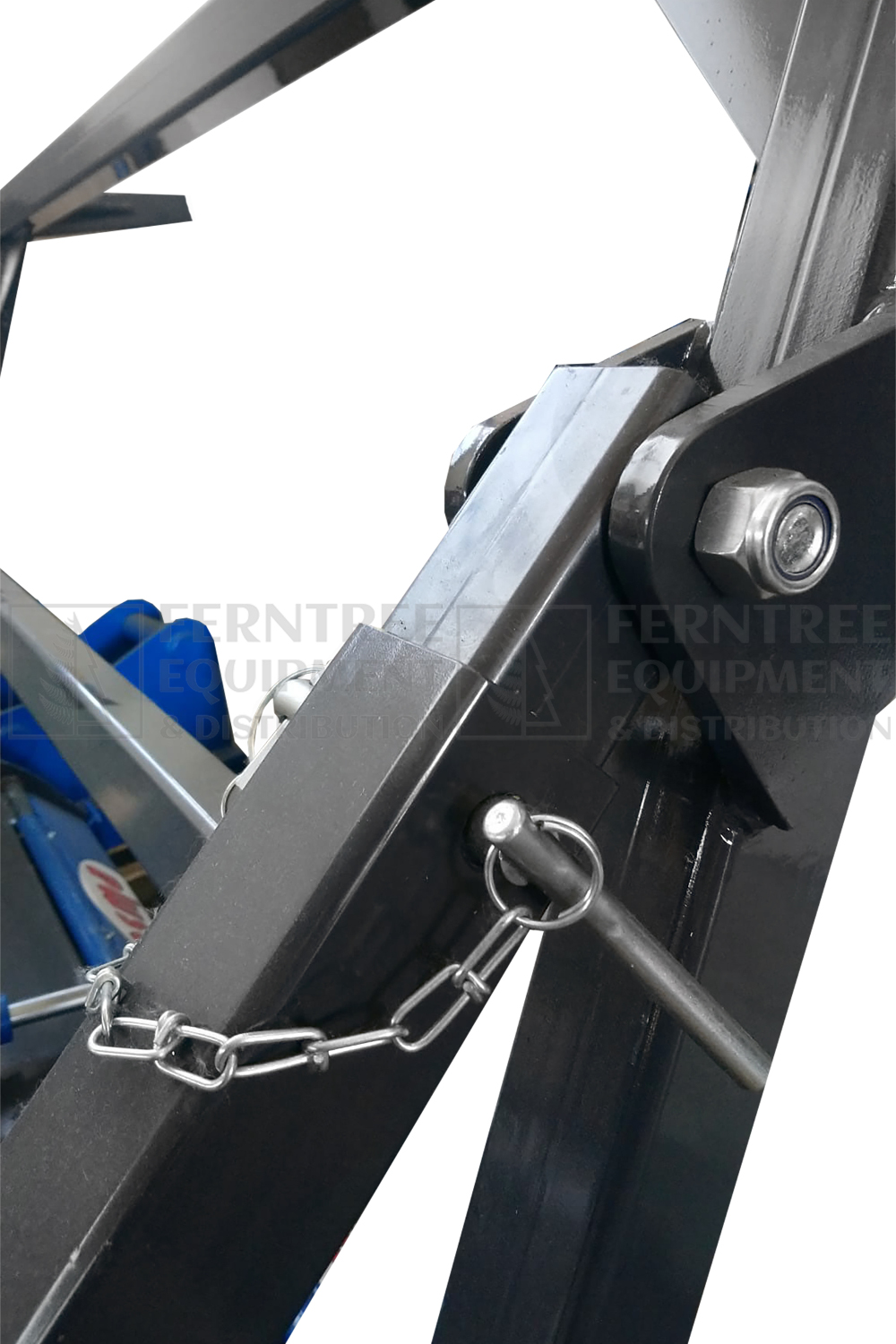

  • Mechanically adjustable push bar
  • Height adjustable skids

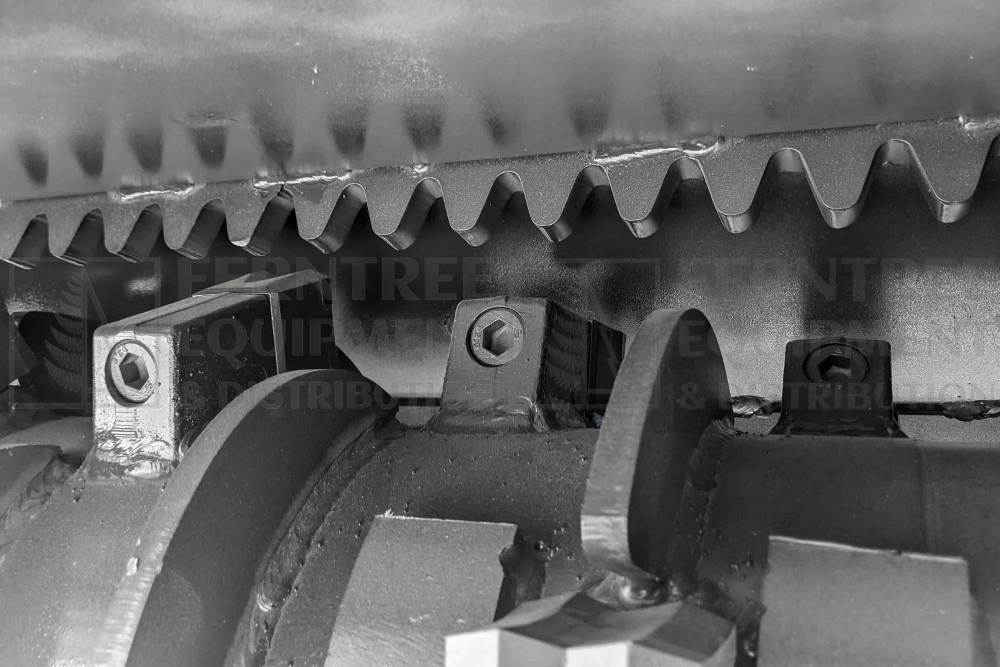

  • Welded counter knife

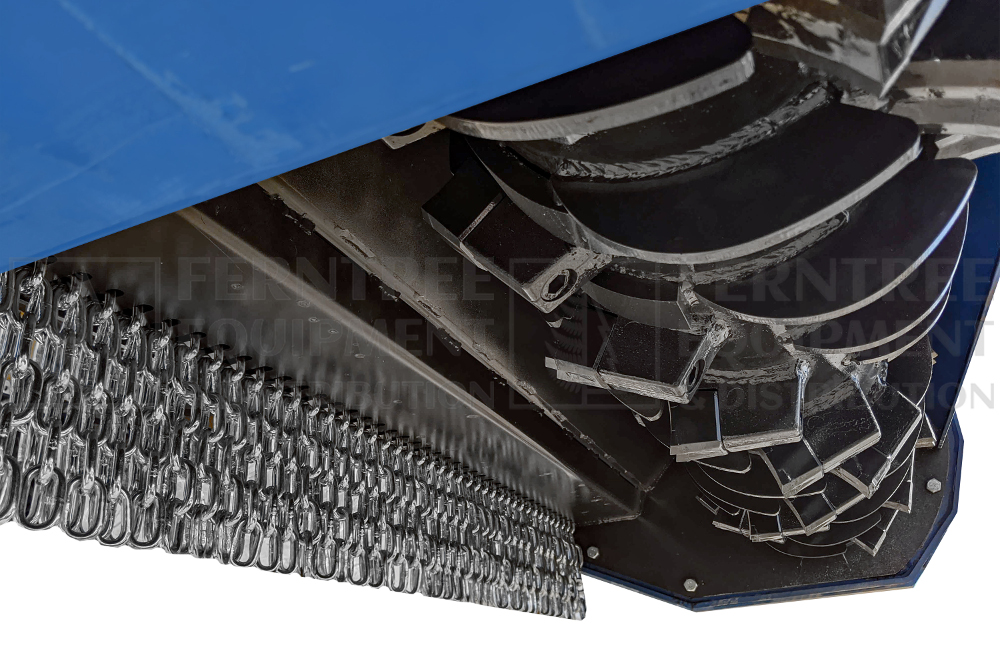

  • Rear chain guard
  • 3F OSMA valve – bypass/antishock/ automatic oil flow regulation



Options:

  • Available in 55inch working width, 63inch, and 72inch

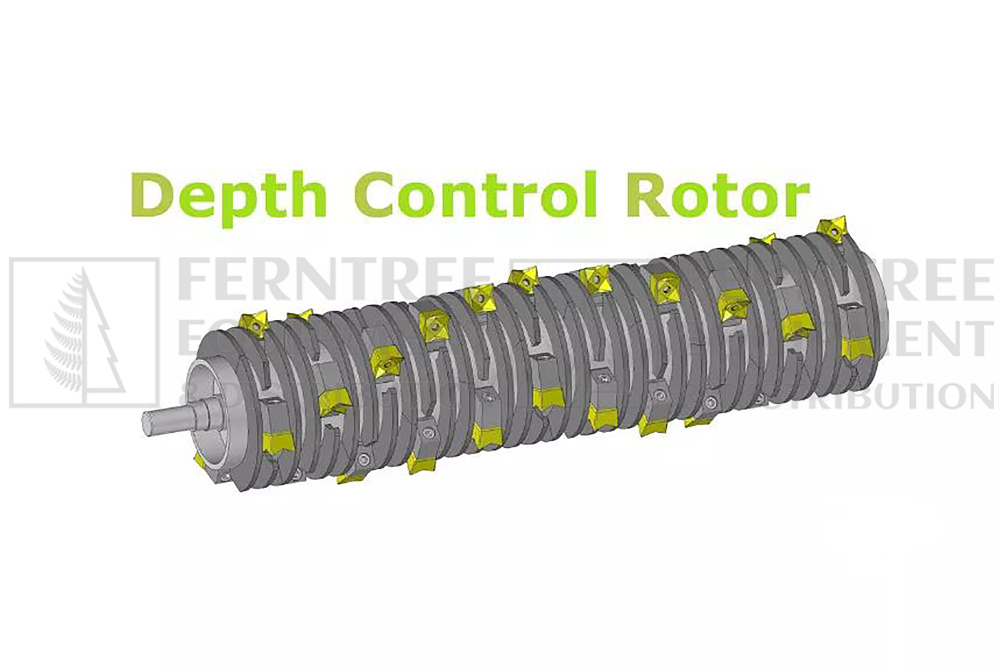

  • DCR – Depth control rotor
  • Electro/hydraulic front door
  • 47cc fixed piston for your low flow unit, 21-30gmp
  • 85cc fixed piston for your high flow unit, 35-45gmp

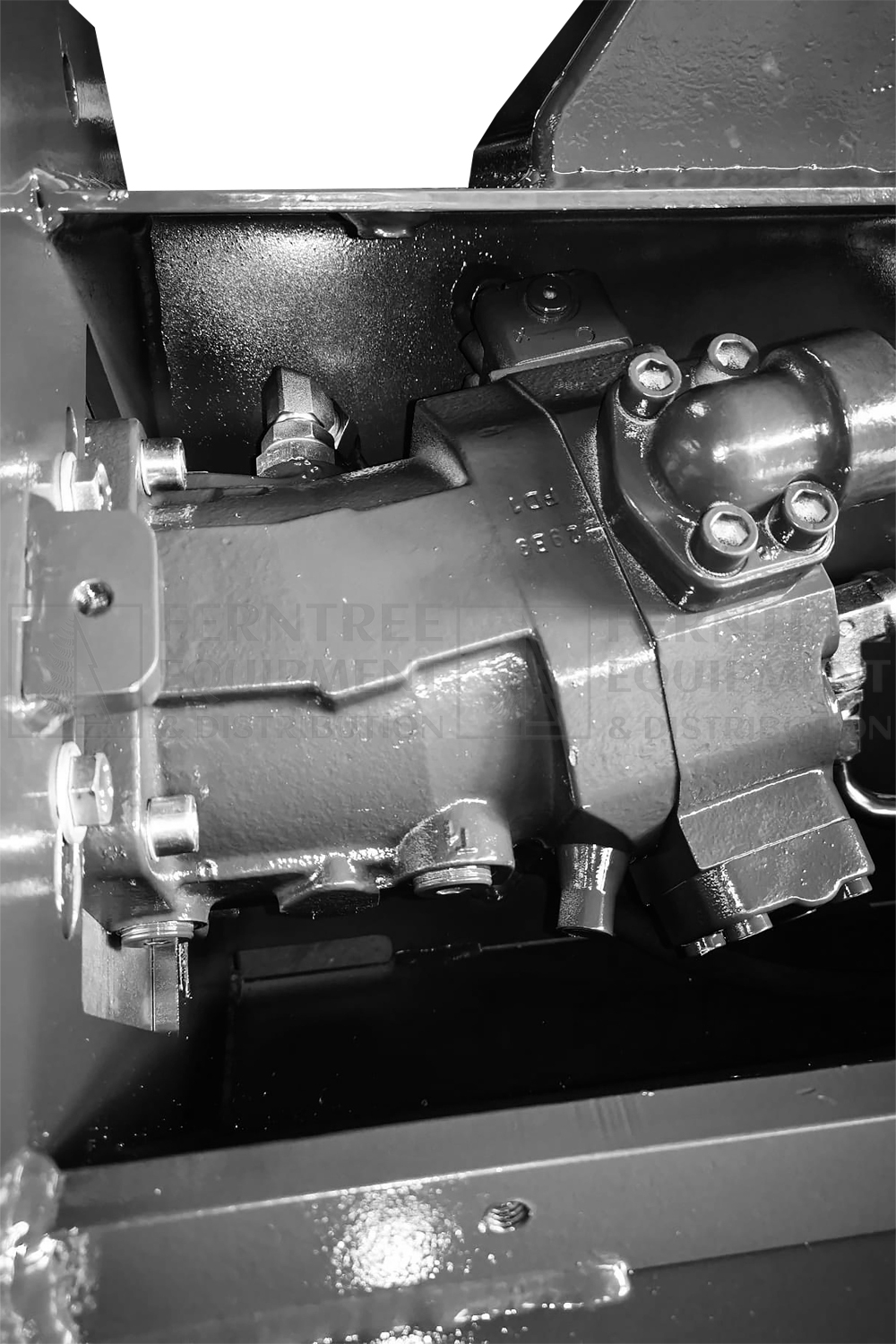

  • Bosch Rexroth VM 55 or VM 80 variable displacement motor

Technical Data :

SSQ 140 SSQ 160 SSQ 180
Working Width 55 62 70
Total Width 65 73 81
Weight Lbs 2050 2249 2425
Skid Steer HP 70-90 70-120 90-120
Piston Motor cc 32-56 45-84 64-84 cc
Flow Rate L/Min 80-90 100-110 110-120
Bar (Pressure) 200-220 200-240 220-240
Rotor mm 250 250 250
Pressure Gauge y y y
Tool Type – Fixed Carbide

Steel Knives – optional

 26 30 39
Anti-cavitation Valve y y y
Flow valve regulator optional optional optional
Belts 4 4 4
Hydraulic Hoses & Couplers 2 2 2
Front Door y y y
Electrical Connector y y y
Front/Rear Safety Chains y y y
Skids y y y
Max Shredding 150+ 200+ 200+
Counter Blades y y y
Hitch universal universal
